Model Number. Output Voltage Max.Output Current Total Regulation Max.Output Watts

JKXXXYYY-S02 4-9VDC 0.01-1.5A 5% 9W

JKXXXYYY-S02 9.1-15.0VDC 0.01-1.0A 5% 9W

JKXXXYYY-S02 15.1-24VDC 0.01-0.375A 5% 9W

Name: UL FCC CE GS SAA Approved 5V 1A USB Charger for Mobile Phone
Brand: JUKE
SKU: 118733987
Availability: InStock

US$ 1.53 - 1.74 MOQ: 100 Pieces

Key Specifications

Brand Name:

JUKE

Model Number:

S02

Use:

Mobile Phone

Shenzhen Juke Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SZ/HK

Delivery Detail:

Delivery time depends on order quantity.

Brand Name JUKE

Model Number S02

Use Mobile Phone

Type Electric

Place of Origin Guangdong, China

Product Description

China suppliers 5v 0.8a dc adapter with Complete certification

*6-9Watt Wall Mount
*Universal Input 90 to 264VAC
*RoHS Compliant
*Meet /ErP / Energy Star / MPES Lelve : V

Product Specification

Sym	Parameter	Test Conditions	Min	Typ	Max	Unit
	Operate Voltage Range		100		240	VAC
fin	Input Frequency		47		63	Hz
Po	Output Power Range	Vin=90 to 264VAC	0		9	W
Vo	Output Voltage Range		4		24	V
Io	Output Current Range		0		1.5	A
Iil	Input Current(Low Line)	Io=Full Load,Vin=115VAC			0.2	A
Iih	Input Current(High Line)	Io=Full Load,Vin=230VAC			0.3	A
Irl	Low Line Inrush Current	Io=Full Load,25℃, Cool start,Vin=115VAC			15	A
Irh	High Line Inrush Current	Io=Full Load,25℃, Cool start,Vin=230VAC			30	A
Eff	Efficiency	Io=Full Load ,Vin=230VAC	68.54	70		%
REG-i	Line Regulation	Io=Full Load		1	2	%
REG-o	Load Regulation	Vin=230VAC		3	5	%
OCP	Over Current Protection	Nil But,Output protected to short circuit conditions				%
Ttr	Time of Transient Response	Io=Full Load to Half Load,Vin=100VAC	2			S
Thold	Hold-Up Time	Io=Full Load,Vin=100VAC	5	10	35	mS
Ts	Start Up Time	Io=Full Load,Vin=100VAC	5	10	35	mS
Vp-p	Ripple&Noise (Peak to Peak)	Full Load,Vin=90VAC		1	2	%
Ilk	Safety Ground Leakage Current	Io=Full Load,Vin=240VAC			0.25	mA
Pno	No-Load Power Consumption	No load, Vin=240VAC		0.2	0.3	w
TC	Temperature Coefficient	All output

Environmental:

Sym	Parameter	Test Conditions	Min	Typ	Max	Unit
Toper	Operating Temperature		0	25	40	℃
Tstg	Storage Temperature		-20		50	℃
Ho	Operating Humidity		15		90	%
Hr	Storage Humidity		10		95	%
MTBF	Operating Temperature at 25℃, Calculated per MIL-HDBK-217F			50000		Hrs

Output Voltage And Current Rating Chart (Single Output):

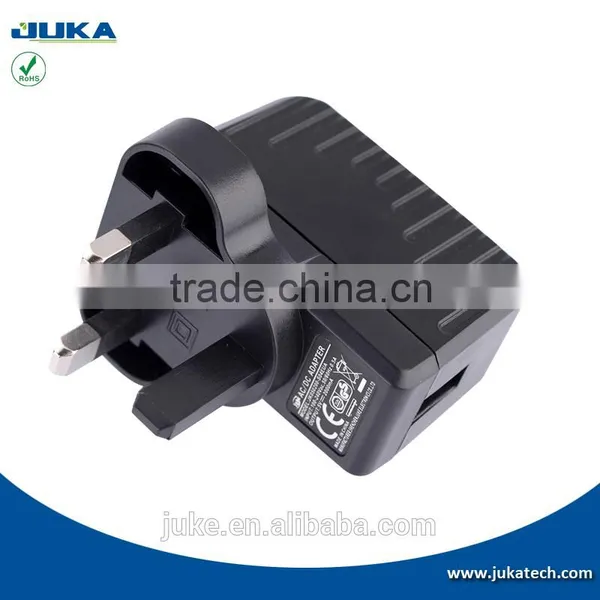

The image of UL FCC CE GS SAA approved 5V 1A USB charger for mobile phone
