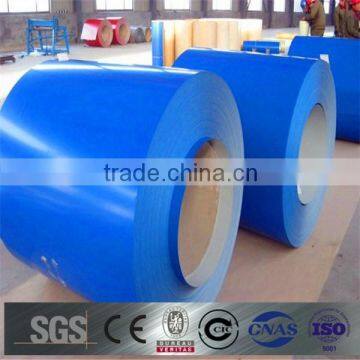

Standard Ppgi/ppgl Coil Size

Specifications:

1) Capacity: about 10,000 tons per month for coil product

2) Standard: JIS G3302, JIS G3312, ASTM A653M/A924M 1998

3) Grade: SPCC, SPCD, SPCE, SGCC (DX51D+Z) SGCD (DX52D+Z), etc.

4) Thickness: 0.23mm-2.0mm

5) Zinc coating weight: 60-275g/m2

6) Width: 914mm-1200mm, or according to the customer's request.

7) Coil ID: 508mm-610mm

8) Coil Weight: according to the customer's  request

9) Color: RAL, or other series

10) Surface protection: PE, PVDF, SMP, HDP, etc.

11) Surface treatment: chromate, oil/unoil, bright finish, spangle, anti-finger print

12) Min trial order: 25 ton each size, 1x20' per delivery

Advantages of Our Prepainted Galvanized Steel Coil:

1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.

2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.

3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.

4) Versatility: can be used in the various areas.

Applications of Prepainted Galvanized Steel Coil:

1) Buildings and constructions: roofing, ceilings, gutters,  venting lines, indoor decorations, window frames, etc.

2) Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.

3) Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.

4) Vehicle parts:  back-seat plates of buses and trucks, conveying systems, oil tanks, etc.

Coating Chief Feature

Structure of GI/PPGI

Our products:

     We also can provide steel plate, angle steel, I beam ,H beam, channel steel, steel pipe etc., if you have inquiries about these, please feel free to contact me, we will try our best to provide you prime quality and bottom price.
