Three Phase Prepaid Active Electronic Power Meter

1.Product Details

Product Name

Installation type

Module No.

Brand

Rated Current

Reference Voltage

Frequence

Display Mode

LCD 6+2 = 999999.99kW

Accuracy

Impulse Constant

Start Current

Connection Mode

Communication&

Protocol

Power Consumption

≤1VA  ≤1W

Material of meter case

Size

Certificate

Standard

2.Functions and characteristic

A. As a prepaid IC card meter, it can work after recharge the electricity through IC card

B. It opens switch when the elelctricity is zero and reminds user to recharge.

C. It opens switch when the power is over limit.

D. Warning threshold of balance elelctricity.

E. It can prevent from te elelctricity energy accumulated.

F. After power off, it can keep the total electricity, remain elelctricity, impulse quantity, and other data can be saved synchronously when the meter works.

G. LCD displays: total kWh, remain kWh, latest kWh, meter No., User No. and so on.

H. Push button mode: it can dispay following pages through button mode:

                               1) Total kWh

                               2) Remain kWh

                               3) Latest kWh

                               4) Meter number

                               5) User Number

                               6) The short of remain kWh Error 5 ( It won't display when less than the warning kWh)

I. Infrared and RS485 communication port and adopt the protocol of IEC62056-21.It can exchange data with the meter and set the part function through PC or communication device.

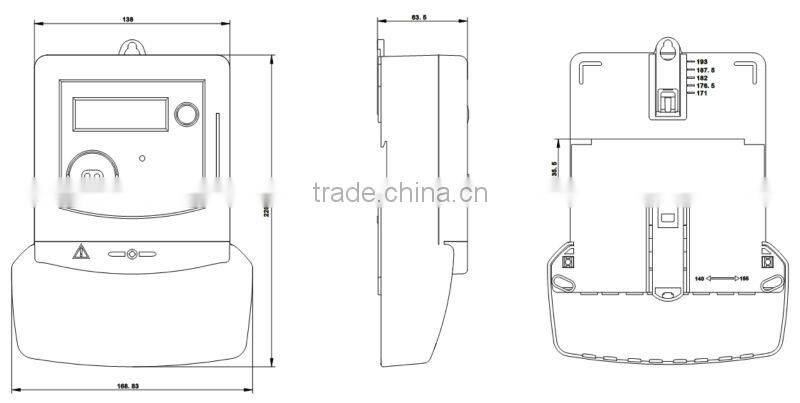

3.Outer and mount dimension:

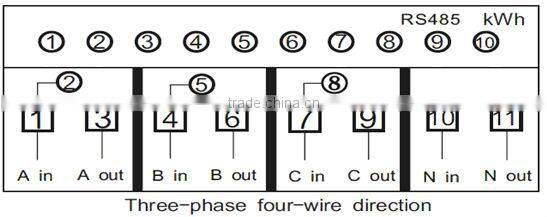

4.Wiring diagram:

5.Transaction Information

MOQ

Sea Port

Payment Terms

Supply Ability

Delivery time

Normal Package
