Three Phase Four Wire Electrical Electronic Meter

Three phase four wire electrical electronic meter

As a professional manufacturer, YTL designs and produces electrical electronic meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications

YTL is devoted to develop and design all types of electrical electronic meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.

1.Product Details
Product Name		Three phase four wire electrical electronic meter
Installation type		Suspension type
Module No.		D521006 (electrical electronic meter)
Brand		YTL  (electrical electronic meter)
Rated Current		5(100)A
Reference Voltage		3*110V;3*220V/380V;3*380V
Frequence		50-60HZ
Display Mode		Counter: 6+1=999999.9kWh
Accuracy		1.0;2.0
Impulse Constant		100/200/400/1600imp/kWh;
Start Current		0.004Ib
Connection Mode		CT type;direct type
Communication& Protocol		/
Power Consumption		≤1.0W ; ≤ 0.3VA
Material of meter case		PC
Size		220*138*63mm
Certificate		CE
Standard		GB/T17215-2002 ; IEC61036-2000
2.Functions and characteristic
A. With simple structure and high reliability,the meter adopts three-chip synthetic techonology and some certain constants can be decided by users
B. With wide measuring range without hooks,shunt sampling is adopted to avoid tampering by pulling off the hooks or shunting direct current
C. Power failure in one phase (3P3W) or two phases (3P4W) will not affect normal energy measuring
D. Measure and calculate the accumulative active power with power  indicator and energy indicator

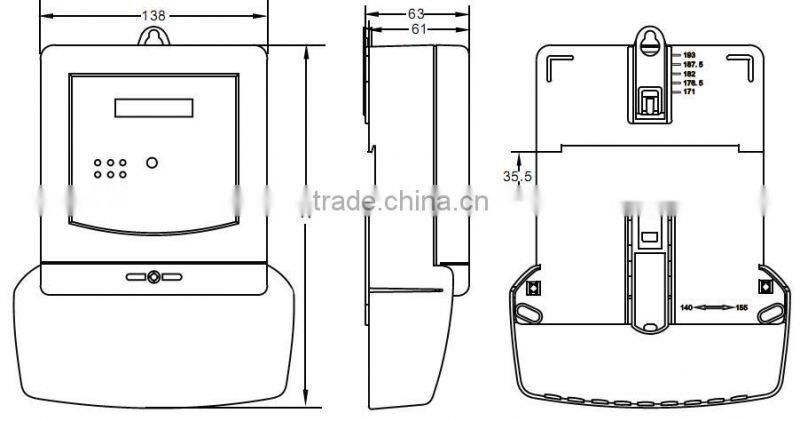

3.Outer and mount dimension:

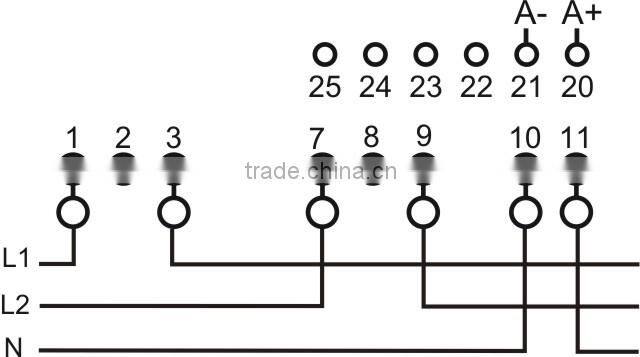

4.Wiring diagram:
5.Transaction Information
MOQ	500pcs
Sea Port	Shanghai
Payment Terms	TT prepayment
Supply Ability	50,000pcs per month
Delivery time	25 days
Normal Package	white box or colorful box for electrical electronic meter

If you are interested in our three phase four wire electrical electronic meter, pls be free to contact us at any time.
