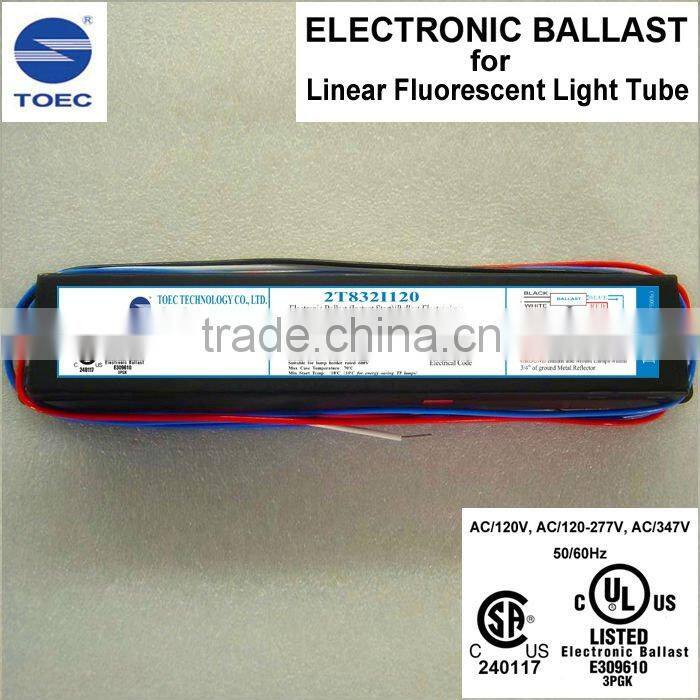

Linear Fluorescent Lamp Tube T8 Electronic Ballast(UL, CSA Listed)

Specifications

Supply USA and CANADA for 12 year
AC/120V, 120-277V, 347V
50/60Hz
17W,25W,28W,30W,32W,40W,44W,55W,59W,65W,86W
UL(cULus), CSA

Linear Fluorescent Lamp Tube T8 Electronic Ballast

UL(cULus), CSA Listed



Usage:

T8 Linear Fluorescent Lamp Tube

1x17W, 25W, 28W, 30W, 32W, 40W, 55W, 59W, 65W, 86W;

2x17W, 25W, 28W, 30W, 32W, 40W, 44W, 55W, 59W, 65W, 86W;

3x17W, 25W, 28W, 30W, 32W, 40W;

4x17W, 25W, 28W, 30W, 32W;

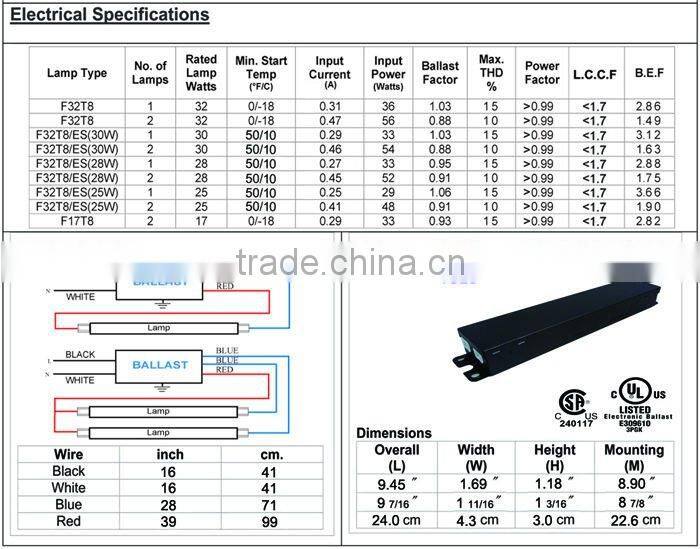

Technology Data:

>>Input Voltage: AC/120V, AC/120-277V, AC/347V;

>>Frequency: 50/60Hz;

>>Starting Method: Programmed Rapid Start, Instant Start, Rapid Start, Economical Model;

>>Sound Rating: A;

>>Lamp Connection: Series/Parallel;



Certificate & Conformance:

>>UL(cULus), CSA Certificate(Class P. Type 1 Outdoor. Type HL)

>>Meets ANSI Standard C82.11 - 1993

>>Meets ANSI Standard C62.41 - 1991

>>Meets FCC Part 18 Class A for EMI & RFI (Non-Consumer Limits)

>>No PCB's



Model:2T832I120
