Home > Products > Film Blowing Machines > Ruian Double Head Extrusion Blowing Machine Blow Moulding Type Film Blowing Machine

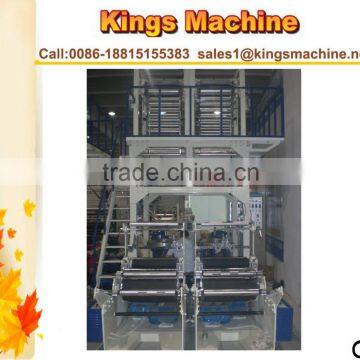

Ruian Double Head Extrusion Blowing Machine Blow Moulding Type Film Blowing Machine
- 30 Set / Sets per Month
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 Ruian New PE Color Striped Plastic Film Blowing Machine,Blow Moulding Machine(Kings brand)
Quality Choice
-
Ruian Most Welcome PE Color Striped Plastic Film Blowing Machine,Blow Moulding Machine(Kings brand)
-
Ruian Double-Head Polyethylene Plastic Film Blowing Machine(Kings brand)
-
Ruian Film Blowing Machine With Single Station Full-Automatically Winder For Sale(Kings brand)
-
Ruian Two Colors Stripe Films Blowing Machine(Kings brand)
-
2016 Ruian Multilayer Co-Extrusion Film Blowing Machine For Sale
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Kings | Model Number | SJ45/FM600,SJ50/FM800,SJ60/FM1000 | |
| Voltage | 380V | Power(W) | 18kw | |
| Dimension(L*W*H) | 4200X1800X3600mm | Weight | 2000kg | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1- It is used for blowing plastic film like low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.
2- The cylinders and the screw are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
3- The machine is equipped with a platform for making operation easy.
4- The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technical Variables:
Model | SJ-45/FM600 | SJ-55/FM800 | SJ-60/FM1000 |
Screw Diameter | 45mm | 55mm | 60mm |
Screw Ratio | L/D30:1 | L/D30:1 | L/D28:1 |
Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
Power of Main Motor | 7.5kw | 11kw | 15kw |
Max. Extrusion output | 35kg/h | 50kg/h | 65kg/h |
Max. Folding Width of Film | 600mm | 800mm | 1000mm |
Single-sided Thickness of Film | 0.006-0.10mm | 0.006-0.10mm | 0.006-0.10mm |
Total Power | 18kw | 22kw | 28kw |
Weight of machine | 2000kg | 2200kg | 2800kg |
Overall Dimensions(L*W*H) | 4200X1800X3600mm | 4400X2000X4000mm | 4600X2300X4200mm |
Model | SJ-65/FM1200 | SJ-80/FM1500 | SJ-100/FM2000 |
Screw Diameter | 65mm | 80mm | 100mm |
Screw Ratio | L/D30:1 | L/D30:1 | L/D30:1 |
Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
Power of Main Motor | 18.5kw | 30kw | 55kw |
Max. Extrusion output | 76kg/h | 86kg/h | 160kg/h |
Max. Folding Width of Film | 1200mm | 1500mm | 2000mm |
Single-sided Thickness of Film | 0.006-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Total Power | 32kw | 52kw | 80kw |
Weight of machine | 3300kg | 4300kg | 5800kg |
Overall Dimensions(L*W*H) | 4800X2500X4500mm | 5200X2800X5000mm | 5800X3300X6000mm |
Main Components of HDPE-LDPE Dual-Purpose Film Blowing Machine | |
Model | SJ-45/FM600 |
Suitable products | LLDPE,LDPE,HDPE |
Max.film width | 600mm |
Screw Diameter | 45mm |
Mould Head | 2 pcs (60 &100) |
Gap between Die exit | 1mm |
Electric Heating Power | 6kw |
Main Motor | 11kw (Huifeng brand, best in China) |
Rewinding motor | Torque motor (10Neton) |
Traction motor | Inverter 1.5kw (Huifeng brand) |
Cooling fan for main machine | 1.1 kw |
Cooling fan for material tank | 0.25kw |
The diameter of Air Ring | 620mm |
Rewinding roller's width | 650mm |
Max.Output | 35kg/h |
Heating circle | Cast Aluminium |
Air compressor | 1.1kw |
Contactor | Zhengtai brand |
Screw | 38CrMoALA |
Gearbox | Made-in-china |
Controller for Toque motor | Made-in-china |
Machine Size | 4200*1800*3600mm |
Machine Weight | 2000kg |
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
7- Guarantee: 1 year, long life service.
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
7- Guarantee: 1 year, long life service.
