Packaging & Delivery
Packaging Details:

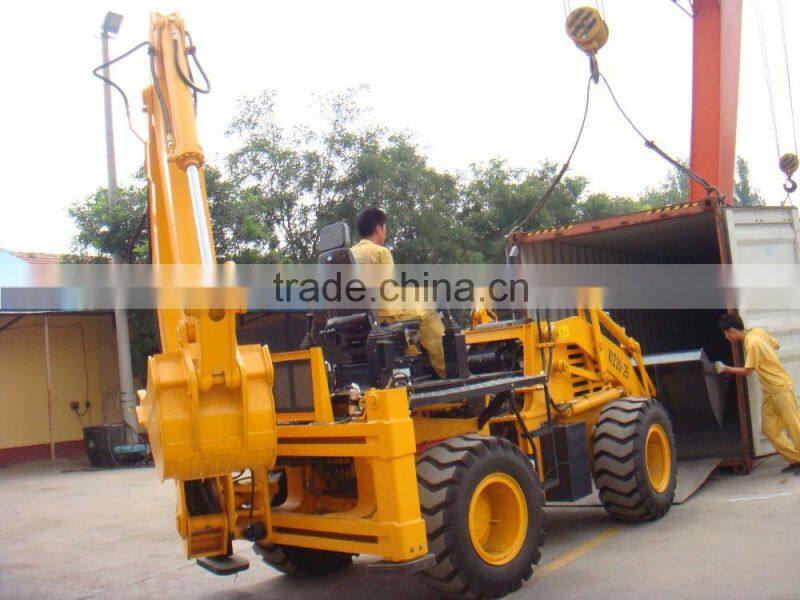

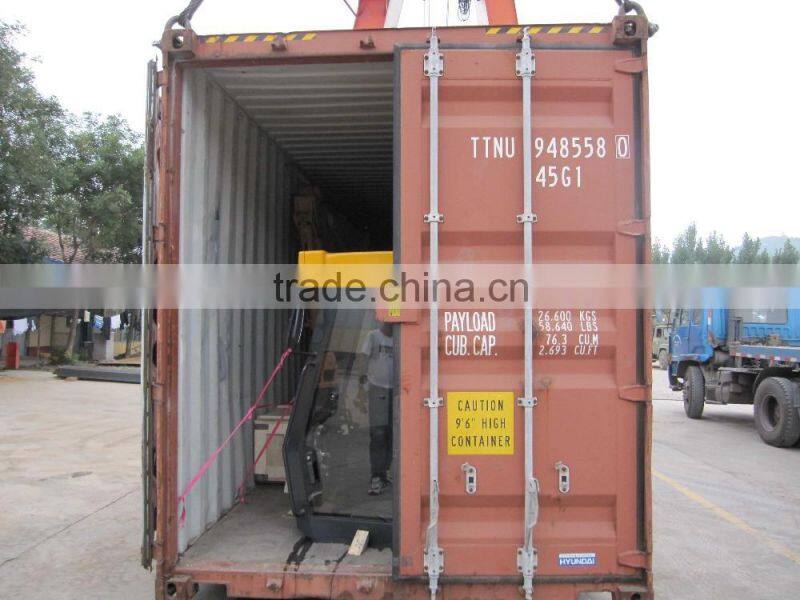

1,For 1 or 2 ton mini wheel loader: one unit 1 or 2 ton mini loader put into one 20 GP’ CONTAINER, or two mini loaders put into one 40 HQ’ CONTAINER.
2, For 3ton, 5ton, 6ton wheel loader: one unit put into one 40HQ CONTAINER, Remove the bucket and uld drive in/out the cabin.easy to assemble up for customer.
Delivery Detail: wheel loader will be sent within 20 working days after recieving deposit or original L/C.
Factory details and specifications:
Parameters and photo of details
WZ30-25 Backhoe wheel loader Dimension technological parameters | ||||
Overall Dimension |
1 |
Length*Width*Height |
5900* 2300 * 3769(mm) |
|
2 |
Cab roof height |
2900(mm) |
||
3 |
Wheel base |
2250(mm) |
||
4 |
Track |
1640(mm) |
||
5 |
Min. ground clearance |
300(mm) |
||
Main Technical Specification |
1 |
a |
load hydraulic system |
18Mpa |
b |
dig hydraulic system |
20Mpa |
||
c |
steering hydraulic system |
12Mpa |
||
2 |
system flow |
120L/min |
||
3 |
four-wheel drive, whole hydraulic system |
|
||
4 |
total operating weight |
7600kg |
||
5 |
maximum speed |
22Km/h |
||
6 |
maximum gradient capacity |
30° |
||
Bucket capacity |
1 |
loading bucket capacity |
1m3 |
|
2 |
rated loading |
1800KG |
||
3 |
maximum articulated height of bucket |
3400(mm) |
||
4 |
bucket discharge height |
2795(mm) |
||
5 |
bucket discharge distance |
1048(mm) |
||
6 |
loading lift capacity |
25KN |
||
7 |
bucket hydraulic translation function |
yes |
||
8 |
bucket lift time |
6.8s |
||
9 |
bucket lower time |
2.5s |
||
10 |
bucket discharge time |
1.2s |
||
11 |
maximum tractive force |
39KN |
||
12 |
maximum breakout force |
38KN |
||
backacter bucket capacity |
1 |
backacter bucket capacity |
0.3m3 |
|
2 |
backacter discharge height |
3878(mm) |
||
3 |
maximum digging depth |
4080(mm) |
||
4 |
maximum digging radius |
5688(mm) |
||
5 |
bucket slewing angle |
190° |
||
6 |
bucket digging capacity |
46KN |
||
7 |
bucket stick digging capacity |
31KN |
||
Diesel engine |
1 |
model |
CUMMINS 4BTA3.9-C100 |
|
2 |
type |
Four-stroke, four-cylinder, turbocharged and intercooled direct injection |
||
3 |
rated power |
74kw / 100HP |
||
4 |
rated speed |
2200r/min |
||
5 |
cylinder –internal diameter |
4—100 |
||
6 |
maximum torque |
410N.m/1500rpm |
||
7 |
minimum fuel consumption |
245g/kw.h |
||
8 |
displacement |
4.5L |
||
Transmission system |
1 |
model of hydraulic pump |
fixed shaft power shift transmission |
|
2 |
gear shift |
2 forward shift 2 reverse shift |
||
3 |
torque |
YJ-280 |
||
4 |
drive pump |
CDXaf3016-IL |
||
5 |
flow |
16ml/r |
||
6 |
work pump |
CBGj2063 |
||
7 |
flow |
63ml/r |
||
Steering system |
1 |
type |
articulated hydraulic steering |
|
2 |
model of steering control valve |
BZZ5-250 |
||
3 |
model of turning control valve |
YSF25S-00 |
||
4 |
steering angle |
36±1°left or right 36±1° |
||
5 |
minimum turning radius |
5018(mm) |
||
Axles |
1 |
main transmission type |
single reduction |
|
2 |
wheel reduction type |
wheel reduction |
||
Wheel |
1 |
tire size |
16/17-20 |
|
2 |
front wheel pressure |
0.22Mpa |
||
3 |
rear wheel pressure |
0.20Mpa |
||
4 |
service braking |
air over hydraulic disc on 4 wheels |
||
5 |
parking brake |
manual parking brake |
||
Refill Capacity |
1 |
fuel tank |
70L |
|
2 |
transmission |
25L |
||
3 |
front axle |
9KG |
||
4 |
rear axle |
9KG |
||
5 |
hydraulic tank |
140L |
||

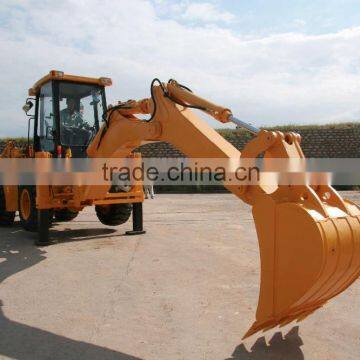

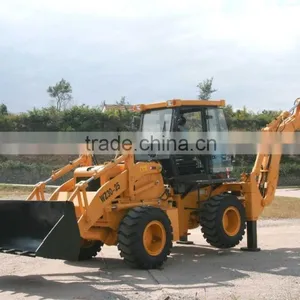

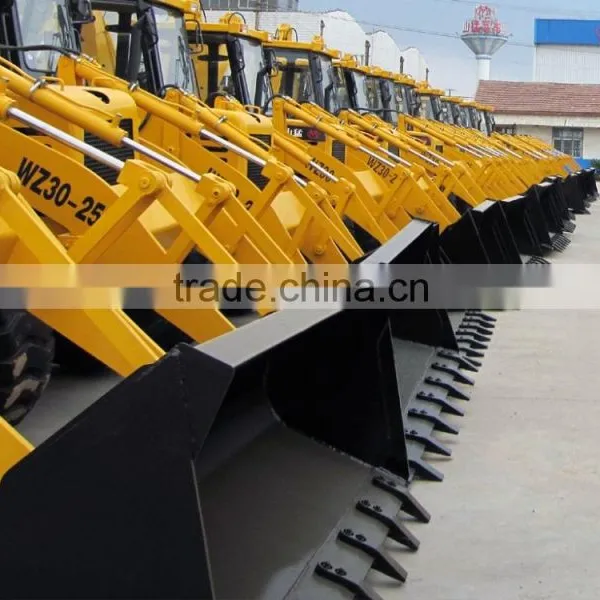

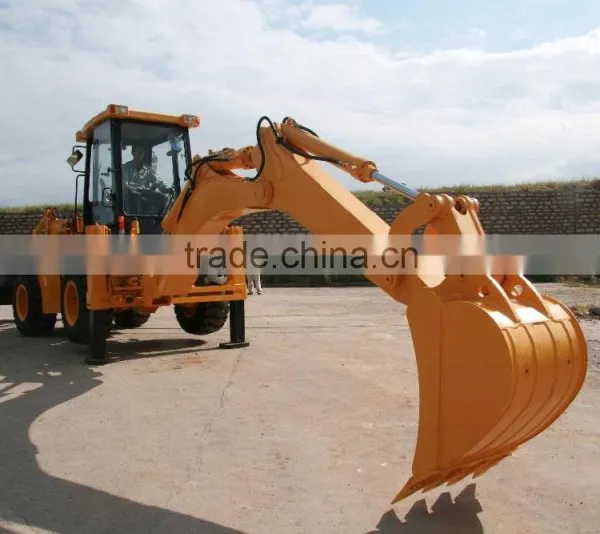

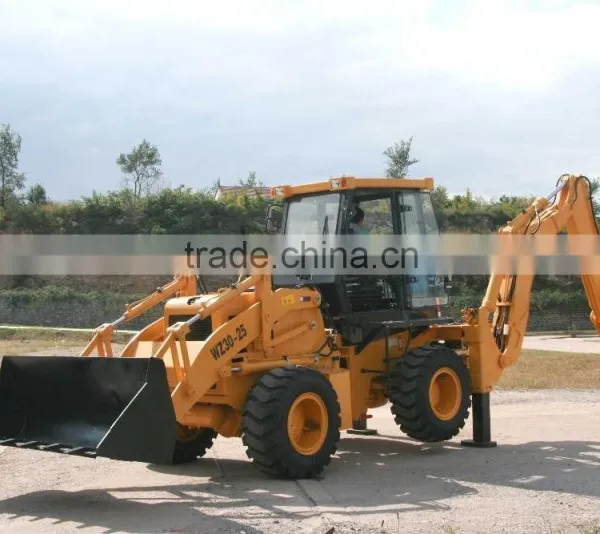

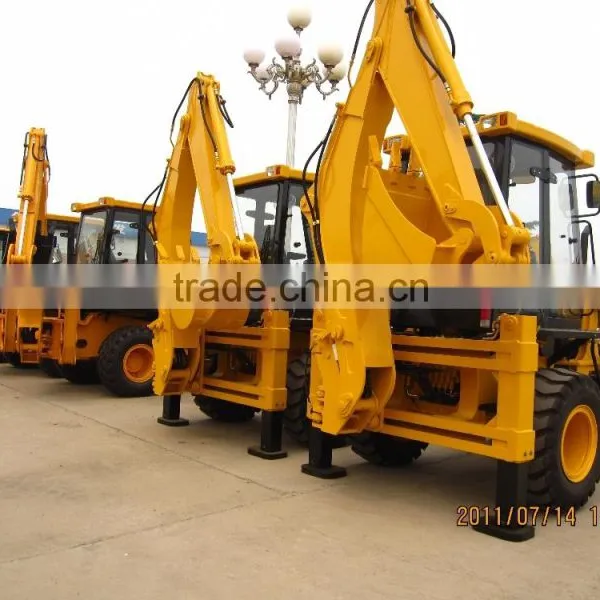

ATTACHMENTS(photos):
Company profile:
Jinan Fuman International Trade Co., Ltd has cooperation with Chinese top factories in area of construction machines and heavy duty trucks. We export mainly wheel loader, forklift, farm machinery, truck crane, excavator, road roller, motor grader, bulldozer, mining dump truck, tipper and etc, Our products have been exported to more than 70 countries and regions with high evaluation.
High quality and reasonable price are our promis to our clients.
Our service:
1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions professionally.
3.Provide customized design service.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Warranty period is one year or against Bill of Lading.
