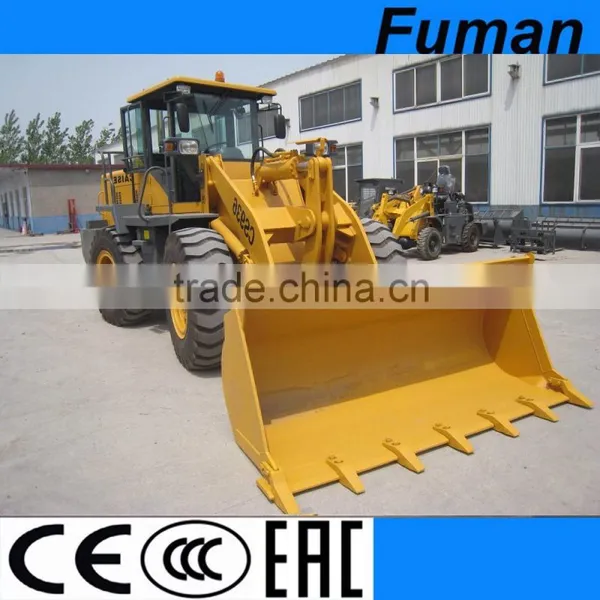

3ton China Front End Loader CS936

3ton China Front End Loader CS936 thumbnail-1
3ton China Front End Loader CS936 thumbnail-2
3ton China Front End Loader CS936 thumbnail-3
3ton China Front End Loader CS936 thumbnail-4
3ton China Front End Loader CS936 photo-1

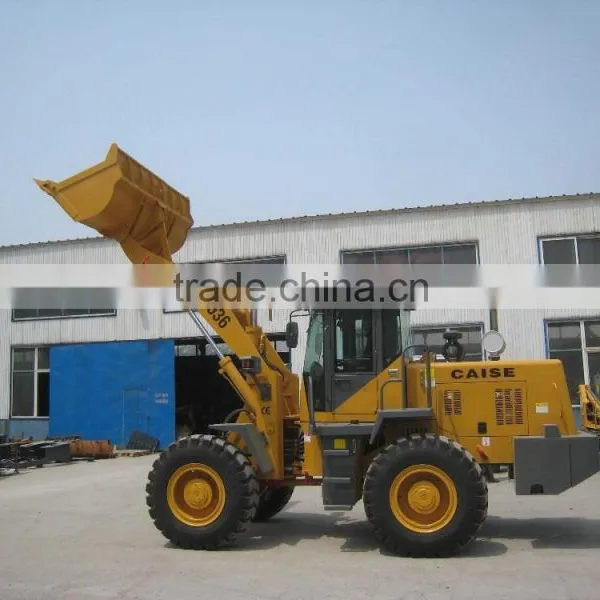

3ton China Front End Loader CS936 photo-2

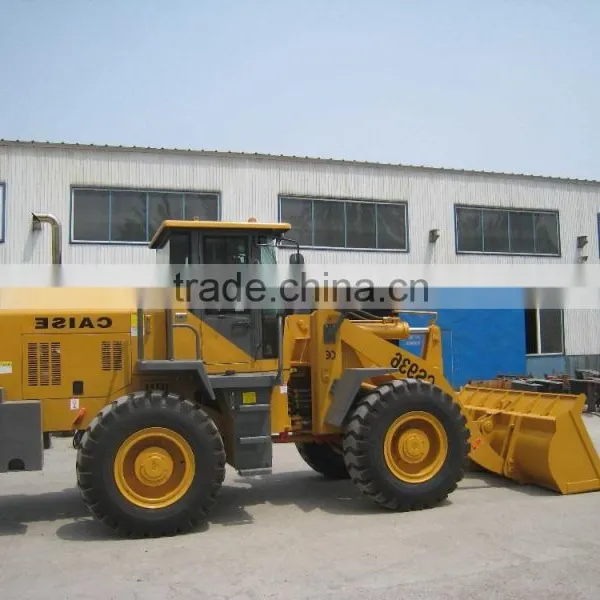

3ton China Front End Loader CS936 photo-3

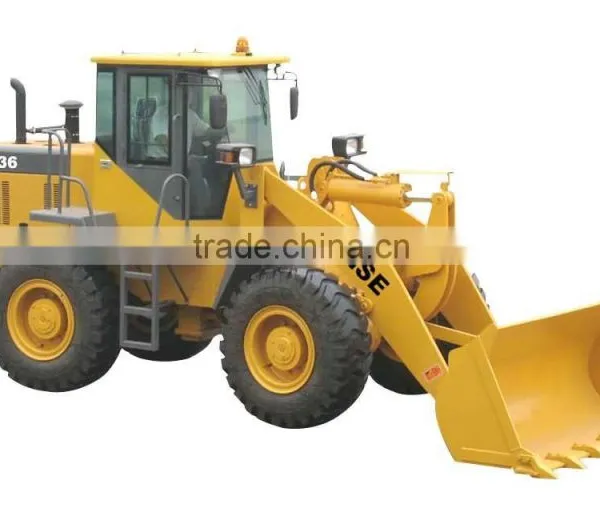

3ton China Front End Loader CS936 photo-4
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
CAISE
Model Number:
CS936
Contact Supplier Request Quote Chat Now
Jinan Fuman International Trade Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name CAISE
Model Number CS936
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6900*2480*3210mm
Rated Load 3000KG
Certification CE,ISO,CCC
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details:

1,For 1 or 2 ton mini wheel loader: one unit 1 or 2 ton mini loader put into one 20 GP’ CONTAINER, or two mini loaders put into one 40 HQ’ CONTAINER.

2, For 3ton, 5ton, 6ton wheel loader: one unit put into one 40HQ CONTAINER, Remove the bucket and uld drive in/out the cabin.easy to assemble up for customer.

Delivery Detail: wheel loader will be sent within 20 working days after recieving deposit or original L/C.



Factory details and specifications:

3ton china front end loader CS9363ton china front end loader CS936



Parameters and photo of details

main performance parameters of CS936 loader



Performance

1

rated load

3000kg

2

overall weight

10760kg

3

rated bucket capacity

1.7m3

4

maximum tractive force

104KN

5

maximum breakout force

≥100KN

6

maximum grade ability

30℃

7

maximum dump height

2940mm

8

maximum dump reach

1056mm

9

overall dimension (L*W*H)

6900*2480*3210mm

10

minimum turning radius

5250mm

Engine

11

model

Yu chai Steyr   YC6108G

12

type

Lnline water cooling dry cylinder  injection

13

No. of cylinder-bore/stroke

6-110*125mm

14

rated power

92kw--2200r/min

15

maximum torque

460/1300~1500N.m

16

min fuel-consume ratio

≤215g/kw.h

Emission(L)

7.12L

Transmission system

17

torque converter

Single stage three elements

18

gearbox mode

Fixed shaft power shift

19

gear shift

4 forward shift

10-14/16-25/21/35

2 reverse shift

10-14/16-25

20

maximum speed

38km/h

Drive axles

21

main reducing spiral

bevel gear grade 1reduction

22

decelerating mode

planetary reduction,grade 1

23

wheel base (mm)

2900mm

24

wheel tread

1900mm

25

minimum ground clearance

382mm

Hydraulic system

26

type

flexible operation

27

working pump

CBGJ2100

working pump emission

100ML

multiple valve

DF25B2

setting pressure

16M pa

28

boom lifting time

5.9±0.2s

29

fuel tank capacity

210L

30

function of leveling automatically

yes

Brake system

31

service brake

four wheel caliper disc brake

32

parking brake

shoe type brake

Tyre

33

type specification

17.5-25

34

front tyre pressure

0.4Mpa

35

rear tyre pressure

0.35Mpa







24000USD-33000USD

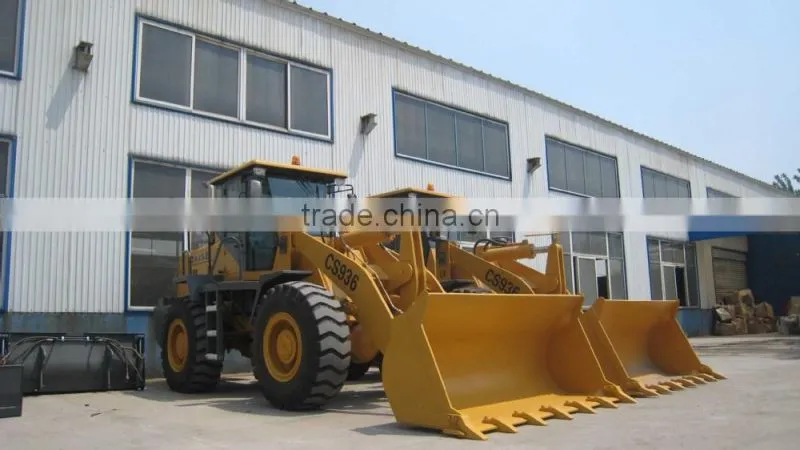

 3ton china front end loader CS936

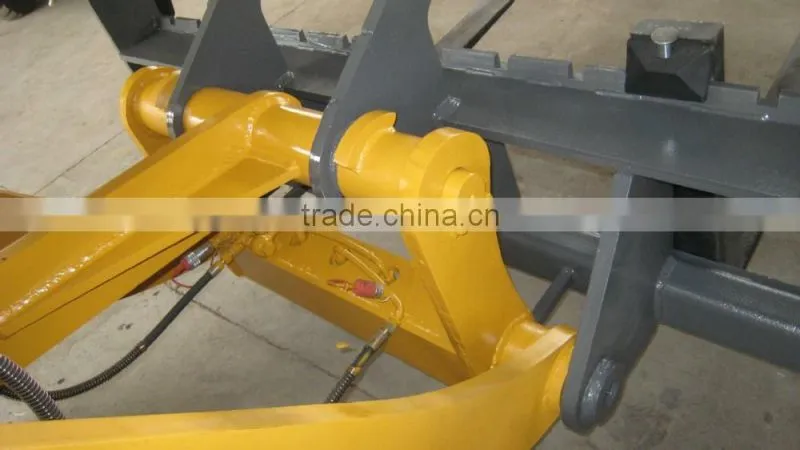

ATTACHMENTS(photos):

3ton china front end loader CS936

3ton china front end loader CS936

Company profile:

Jinan Fuman International Trade Co., Ltd has cooperation with Chinese top factories in area of construction machines and heavy duty trucks. We export mainly wheel loader, forklift, farm machinery, truck crane, excavator, road roller, motor grader, bulldozer, mining dump truck, tipper and etc, Our products have been exported to more than 70 countries and regions with high evaluation.

High quality and reasonable price are our promis to our clients.



Our service:

1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions professionally.
3.Provide customized design service.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.

6.Warranty period is one year or against Bill of Lading.

3ton china front end loader CS936
