mini wheel loader SAM826 loader
mini wheel loader main performance parameters of SAM826 loader
Performance |
1 |
rated loading |
1600kg |
2 |
overall weight |
4900kg |
|
3 |
rated bucket capacity |
1m3 |
|
4 |
maximum tractive force |
≥45KN |
|
5 |
maximum breakout force |
≥48KN |
|
6 |
maximum grade ability |
30℃ |
|
7 |
maximum dump height |
3200mm |
|
8 |
maximum dump reach |
1000mm |
|
9 |
overall dimension (L×W×H) |
5900×1900×2800mm |
|
10 |
minimum turning radius |
4367mm |
|
Engine |
11 |
model |
Wei fang hua dong ZH4102G |
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4—102×125mm |
|
14 |
rated power |
47kw—2400r/min |
|
15 |
maximum torque |
250N.m |
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ1—26501 |
18 |
gearbox mode |
Countershaft power-shift |
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
20 |
maximum speed |
24km/h |
|
Drive axles |
21 |
main reducing spiral
|
Circular Arc Bevel gear, single stage |
22 |
decelerating mode |
Single stage planetary type |
|
23 |
wheelbase (mm) |
2150mm |
|
24 |
wheel tread |
1440mm |
|
25 |
ground clearance |
310mm |
|
Hydraulic system |
26 |
system working pressure |
16MPa |
27 |
boom lifting time |
4.8s±0.2s |
|
28 |
total time |
9.2s±0.5s |
|
29 |
fuel tank capacity |
80L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air assist disc brake on 4 wheels |
32 |
parking brake |
flexible shaft operated external drum |
|
Tyre |
33 |
type specification |
16/70—20 |
34 |
front tyre pressure |
0.22Mpa |
|
35 |
rear tyre pressure |
0.18Mpa |

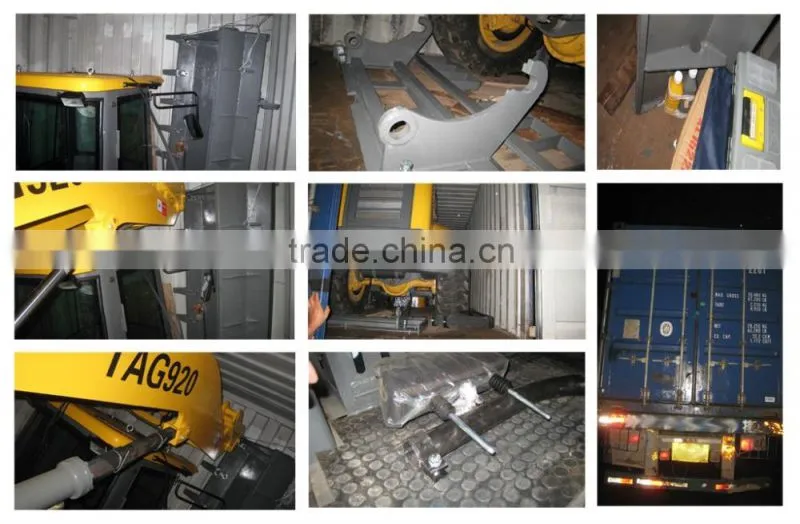

ATTACHMENTS(photos):
Packaging Details:
1,For 1 or 2 ton mini wheel loader: one unit 1 or 2 ton mini loader put into one 20 GP’ CONTAINER, or two mini loaders put into one 40 HQ’ CONTAINER.
2, For 3ton, 5ton, 6ton wheel loader: one unit put into one 40HQ CONTAINER, Remove the bucket and uld drive in/out the cabin.easy to assemble up for customer.
Delivery Detail:wheel loader will be sent within 20 working days after recieving deposit or original L/C.
1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions professionally.
3.Provide customized design service.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Warranty period is one year or against Bill of Lading.
Jinan Fuman International Trade Co., Ltd has cooperation with Chinese top factories in area of construction machines and heavy duty trucks. We export mainly wheel loader, forklift, farm machinery, truck crane, excavator, road roller, motor grader, bulldozer, mining dump truck, tipper and etc, Our products have been exported to more than 70 countries and regions with high evaluation. High quality and reasonable price are our promis to our clients.
Factory details and specifications:
1, Delivery time: Usually within 25 days after deposit.
2, Payment terms: Two ways
A, By T/T, 30% deposite and 70% before shipment.
B, By L/C
3, Warranty: one year
4, Personality requirement: we could provide customized service, please contact with us if you have any requirement.
5, After service: spareparts supplying, engineer guidance.
