china mining tipper truck for sale
- 20000 Unit / Units per Month
- Any port in China
- T/T Credit Card
- Gold mining jaw crusher equipment for sale, stone crusher machine
- First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
- China leader manufacturer ZHAOXIN high efficiency thickener
- Ore benefication thickener machine, dewatering thickener price
- china high quality center drive thickener, thickening equipment
- Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
Place of Origin: | Shandong, China | Brand Name: | HOWO | Model Number: | ZZ5707S3640AJ |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

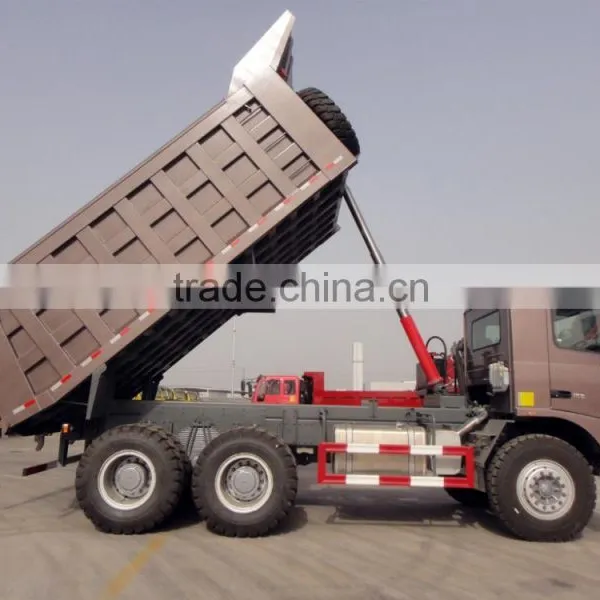

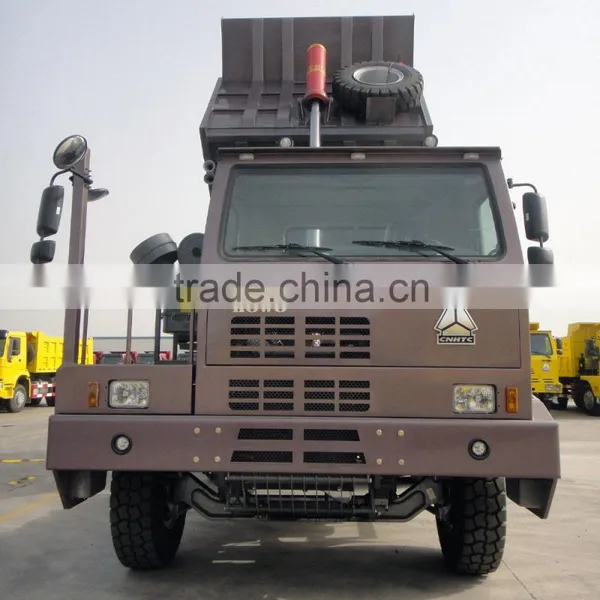

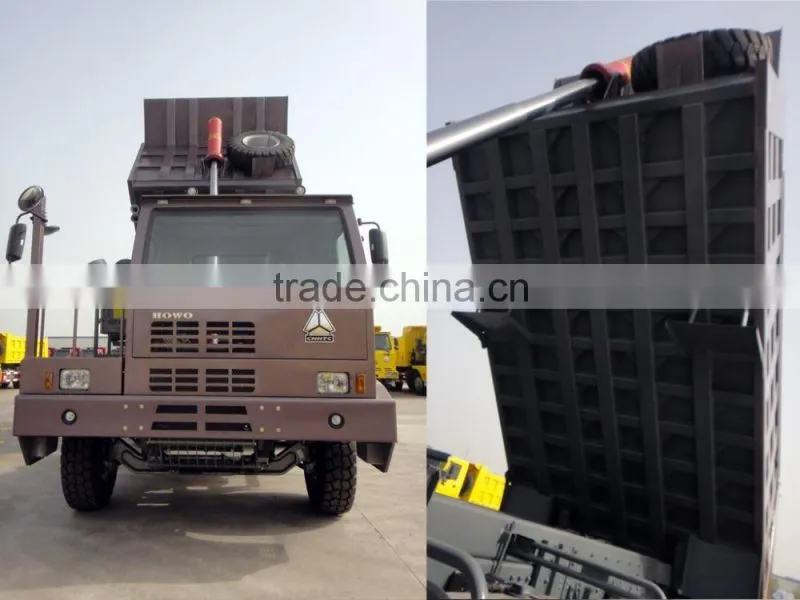

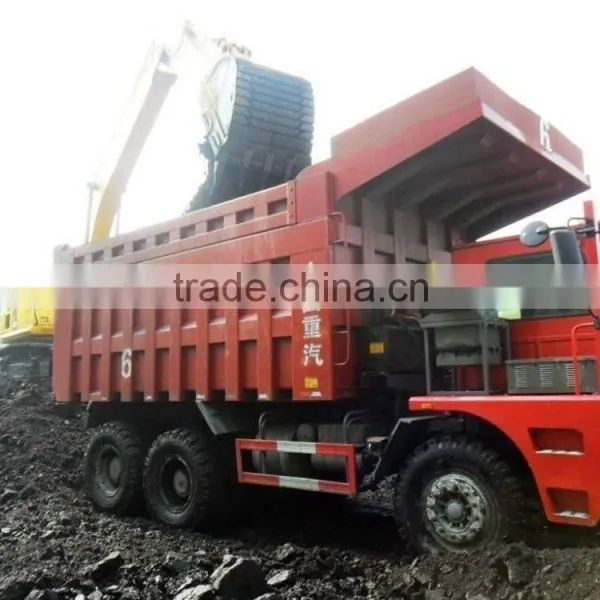

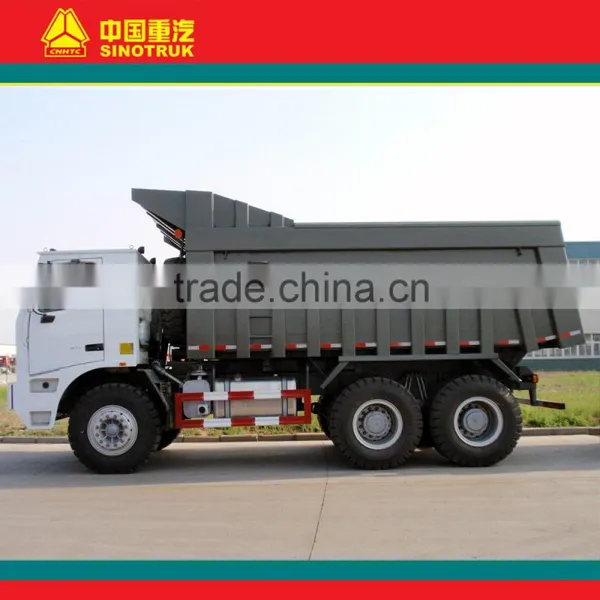

SINOTRUK
HOWO BRAND TIPPER Driving Type 6×4 GVW70000kg
Model | ZZ5707S3640AJ | |
Engine | Make: SINOTRUK Engine model: WD615.47, Euro II emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling Maximum output: 371hp(273Kw)at 2200 rpm according to DIN Maximum torque: 1350Nm at 1100~1600 rpm Bore: 126mm; Stroke: 130mm; Displacement: 9.726L; Compression ratio:17:1 Specific fuel consumption: 195g/kWh; Engine oil filling quantity: 23L Cooling system filling quantity (long-term filling): 40L Thermostat opening temperature: 80oC Twin cylinder air compressor Rigid fan Option: Thermostat with 71oC opening begin Visco fan | |
Clutch | Single- plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |
Transmission | Transmission, model HW19710, synchromesh, 10 forward and 2 reverse Ratio: 14.28;10.62;7.87;5.88;4.38;3.27;2.43;1.8;1.34;1 | |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
Front Axle | Steering with double T-cross section | |

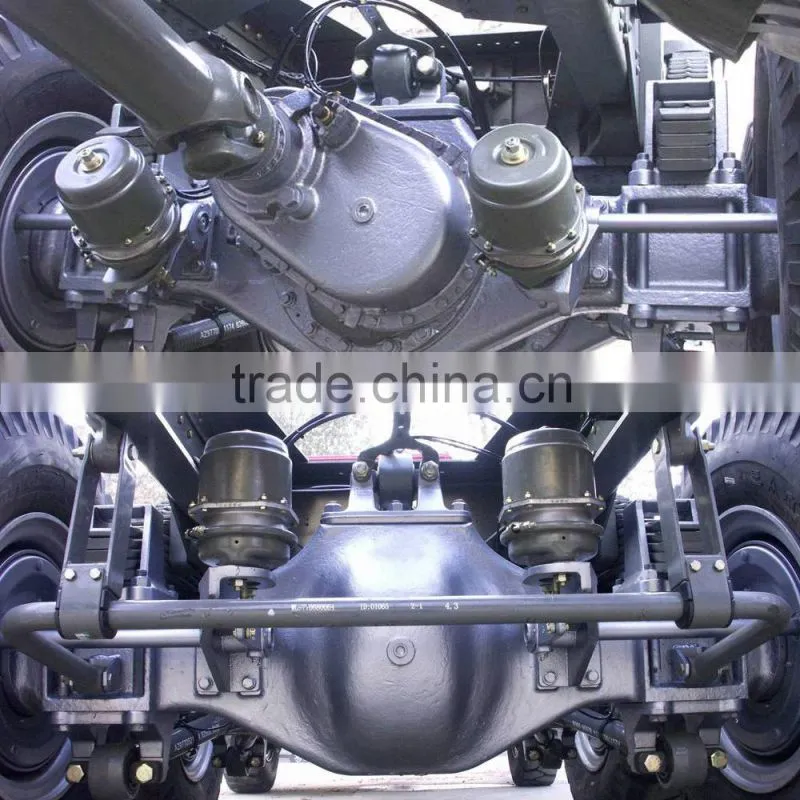

Rear Axles | Casted axle housing, central single reduction with planetary wheel reduction (hub reduction), and differential locks between wheels and axles Ratio: 10.47 | |
Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer With one spare wheel Fuel tank: with 500 L fuel tank with locking fuel cap | |
Steering | ZF8118 , hydraulic steering with power assistance Ratio: 22.2-26.2:1 | |
Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | |
Wheel & Types | Rims: 10.2-25 10 hole-steel Types 14.00-25 tube Option: 14.00R25 | |

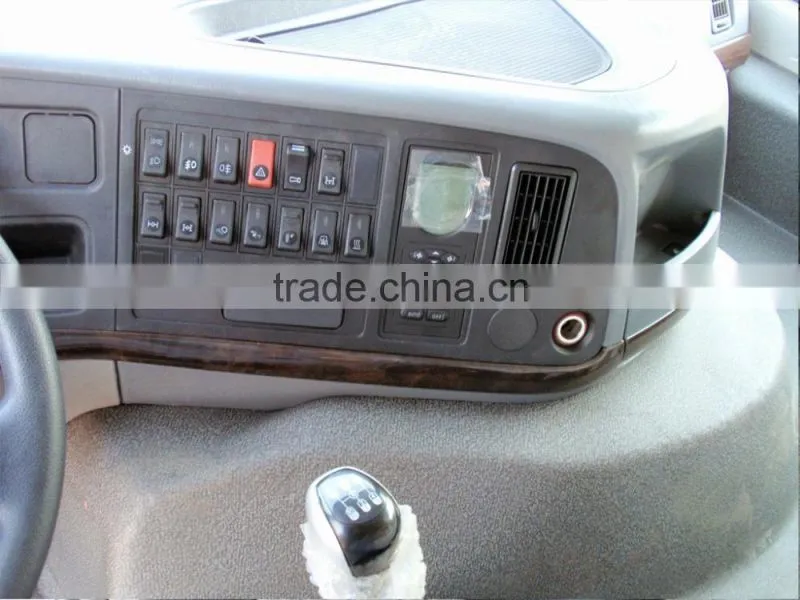

Driver’s cab | Standard cab, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, air conditioner, safety belt, adjustable roof flap. | |
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 3-phrase, 28V, 1500W; Batteries: 2×12, 180Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | |
Dimensions in mm | Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension Cargo body size | 3600+1500 2741 2520 1500 1000 32 40 8300×3300×4340(mm) 5500×3100×1800 (mm) |
Weight in kg | Permissible loading capacity on chassis Dead weight Gross vehicle weight Front axle loading capacity Rear axle loading capacity | 70000 29000 70000 12000 29000×2 |
Performance | Maximum driving speed(km/h) Maximum grade ability (%) Minimum ground clearance(mm) Minimum turning circle(m) Fuel consumption(L/100km) | 50 42 340 22 31 |
The manufacture reserves the right of technical alteration/change for better improvement without prior notice

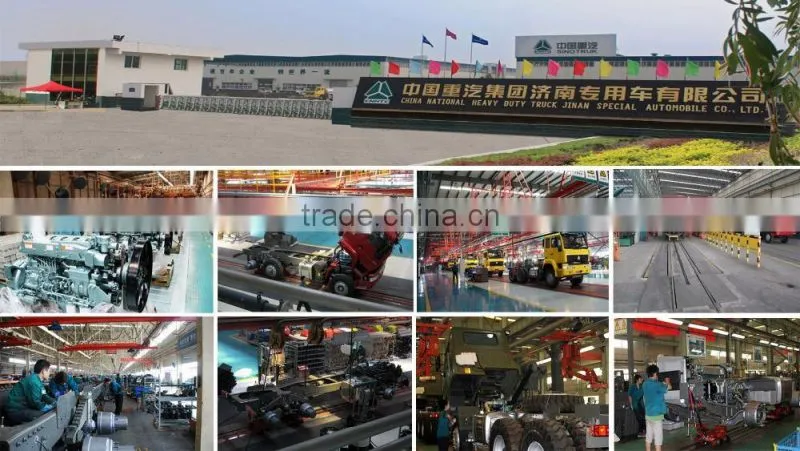

Company profile:
Jinan Fuman International Trade Co., Ltd has cooperation with Chinese top factories in area of construction machines and heavy duty trucks. We export mainly wheel loader, forklift, farm machinery, truck crane, excavator, road roller, motor grader, bulldozer, mining dump truck, tipper and etc, Our products have been exported to more than 70 countries and regions with high evaluation.
High quality and reasonable price are our promis to our clients.
Our service:
1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions in professional.
3.Provide customized design service.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Warranty period is one year or 1500 working hours against Bill of Lading.
Contact Us
- Jinan Fuman International Trade Co., Limited
- Contact nameFrida Shi
- Phone86-531-82868850
- Address2-401, Longshan Jiayuan, Shanghai Street, Zhonggong Town, Licheng Dist.
