Mild Steel Hot Rod H Beam JIS/GB Standard
US$ 390 - 450
/ Metric Ton
25 Metric Tons(Min. Order)
- Xingang Tianjin
- T/T
You May Like
-
Steel Profiles H Beam
-
Hot Rolled Mild Steel Structural H Beam Supplier From China
-
Structural Steel Fabrication Material H Beam
-
Q235 Q345 Ss400 Standard Structural Steel Hot Rolled h Beam Size
-
Structural Steel H Beam/Prime Hot Rolled Mild H Beam for Building Structures
-
Steel h Beam Structure Material/ Construction Steel / Hot Rolled h Beam
Product Details
| Place of Origin | Hebei, China | Grade | Other, Q235/SS400/A36 | |
| Technique | Hot Rolled | Thickness | 5-34mm | |
| Application | building material | Length | 5.8m,6m,9m,12m or as requirements | |
| Standard | JIS | Flange Width | 50-400 | |
| Flange Thickness | 7-34mm | Web Width | 100-900mm | |
| Web Thickness | 5-16mm | Brand Name | PENGLAI | |
| Model Number | Beam |
Product Description
h-beam(h section/h bar/h steel)
Specification:
1. Grade: Q235/SS400/S235JR
2. Length: 5.8m,6m-12m
3. Packing:standard export packaging
Dimensions details:
2. Grade: Q235/SS400/S235JR 3. Length: 6m-12m 4. Packing:standard export packaging
It is H beam steel
| ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005 | |||
| H beam Section sizenma(mm) | Weight (kg/m) | ||
| Height×Breadth | Web thichness | Flange thichness | |
| 100×100 | 6 | 8 | 16.9 |
| 125×125 | 6.5 | 9 | 23.6 |
| 150×150 | 7 | 10 | 31.1 |
| 175×175 | 7.5 | 11 | 40.4 |
| 200×200 | 8 | 12 | 49.9 |
| 250×250 | 9 | 14 | 71.8 |
| 300×300 | 10 | 15 | 93.0 |
| 300×300 | 15 | 15 | 105.0 |
| 350×350 | 12 | 19 | 134.9 |
| 400×400 | 13 | 21 | 171.7 |
| 148×100 | 6 | 9 | 20.7 |
| 194×150 | 6 | 9 | 29.9 |
| 244×175 | 7 | 11 | 43.6 |
| 294×200 | 8 | 12 | 55.8 |
| 340×250 | 9 | 14 | 78.1 |
| 390×300 | 10 | 16 | 104.6 |
| 440×300 | 11 | 18 | 120.8 |
| 482×300 | 11 | 15 | 110.8 |
| 488×300 | 11 | 18 | 124.9 |
| 582×300 | 12 | 17 | 132.8 |
| 588×300 | 12 | 20 | 147.0 |
| 100×50 | 5 | 7 | 9.3 |
| 125×60 | 6 | 8 | 13.1 |
| 150×75 | 5 | 7 | 14.0 |
| 175×90 | 5 | 8 | 18.0 |
| 198×99 | 4.5 | 7 | 17.8 |
| 200×100 | 5.5 | 8 | 20.9 |
| 248×124 | 5 | 8 | 25.1 |
| 250×125 | 6 | 9 | 29.0 |
| 298×149 | 5.5 | 8 | 32.0 |
| 300×150 | 6.5 | 9 | 36.7 |
| 346×174 | 6 | 9 | 41.2 |
| 350×175 | 7 | 11 | 49.4 |
| 396×199 | 7 | 11 | 56.1 |
| 400×200 | 8 | 13 | 65.4 |
| 446×199 | 8 | 12 | 65.1 |
| 450×200 | 9 | 14 | 74.9 |
| 496×199 | 9 | 14 | 77.9 |
| 500×200 | 10 | 16 | 88.1 |
| 596×199 | 10 | 15 | 92.4 |
| 600×200 | 11 | 17 | 103.4 |
| 700×300 | 13 | 24 | 181.8 |
| 800×300 | 14 | 26 | 206.8 |
| 900×300 | 16 | 28 | 240.1 |

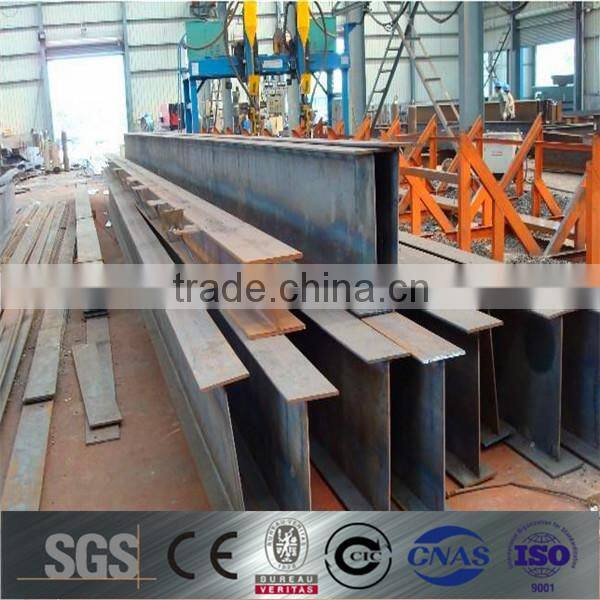

products pictures:
We also can provide steel plate, angle steel, I beam, flat bar, round bar, GI/PPGI coils, steel pipes, if you have inquiries about these products, please feel free to contact me, we will try our best to provide you prime cargo and bottom price.
