q235 channel bar/hot rolled u channel steel bar, SS400, A36
1.Detail information of C channel steel.
Height: 80-400mm Thickness: 1.5-3.0mm
Length: As customers’ requirements.
Material: Q195/Q235/Q345/SS400/S235JR Surface: Painted or Galvanized.
Punch: Can be punched as customer's drawing
2.Application

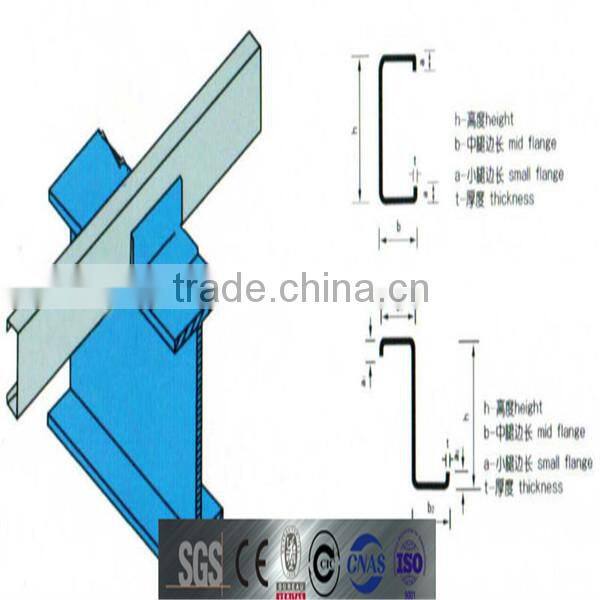

purlin and wall beam of steel structure building
The C-shaped purlins have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
3.Advantage
(1). Design according to customers’ requirements
(2). Manufacture under complete quality control system---ISO9001&SGS
(3). Installation with instruction of experienced engineers
(4). Easy to assemble and dismantle
(5). Eco-friendly material: can be used for several times and can be recycled
(6). Shorter construction period, longer using time
(7). High strength and stiffness, high weight bearing.
4. Common specification
| U channel | ||
| model | model | weight/m(kg) |
| 50*37*4.5 | 5# | 5.44 |
| 63**40*4.8 | 6.3# | 6.635 |
| 65*40*4.8 | 6.5# | 6.7 |
| 80*43*5 | 8# | 8.045 |
| 100*48*5.3 | 10# | 10.007 |
| 120*53*5.5 | 12# | 12.06 |
| 126*53*5.5 | 12.6# | 12.37 |
| 140*60*8 | 14#A | 14.53 |
| 140*60*8 | 14#B | 16.73 |
| 160*63*6.5 | 16#A | 17.23 |
| 160*65*8.5 | 16#B | 19.755 |
| 180*68*7 | 18#A | 20.17 |
| 180*70*9 | 18#B | 23 |
| 200*73*7 | 20#A | 22.637 |
| 200*75*9 | 20#B | 25.777 |
| 220*77*7 | 22#A | 24.999 |
| 220*79*9 | 22#B | 28.453 |
| 240*78*7 | 24#A | 26.86 |
| 240*80*9 | 24#B | 30.628 |
| 250*78*7 | 25#A | 27.41 |
| 250*80*9 | 25#B | 31.335 |
| 270*82*7.5 | 27#A | 30.838 |
| 270*84*9.5 | 27#B | 35.077 |
| 280*82*7.5 | 28#A | 31.427 |
| 280*84*9.5 | 28#B | 35.823 |
| 300*85*7.5 | 30#A | 34.463 |
| 300*87*9.5 | 30#B | 39.173 |
| 320*88*8 | 32#A | 38.083 |
| 320*90*10 | 32#B | 43.107 |
| 360*96*9 | 36#A | 47.814 |
| 360*98*11 | 36#B | 53.466 |
| 400*100*10.5 | 40#A | 58.928 |
| 400*102*12.5 | 40#B | 65.208 |

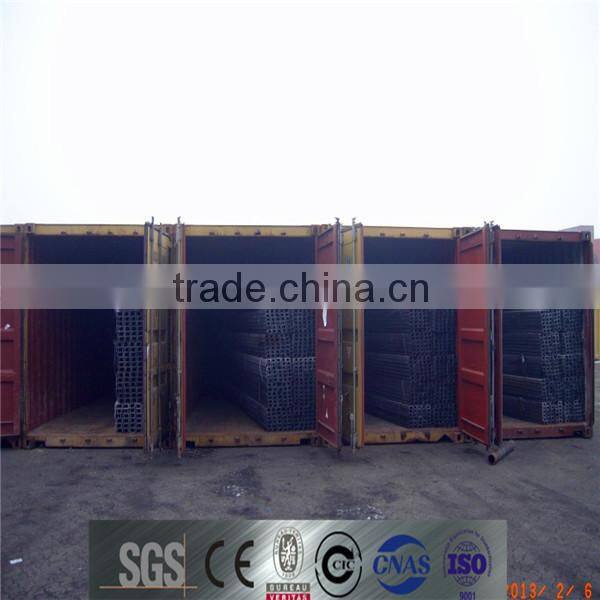

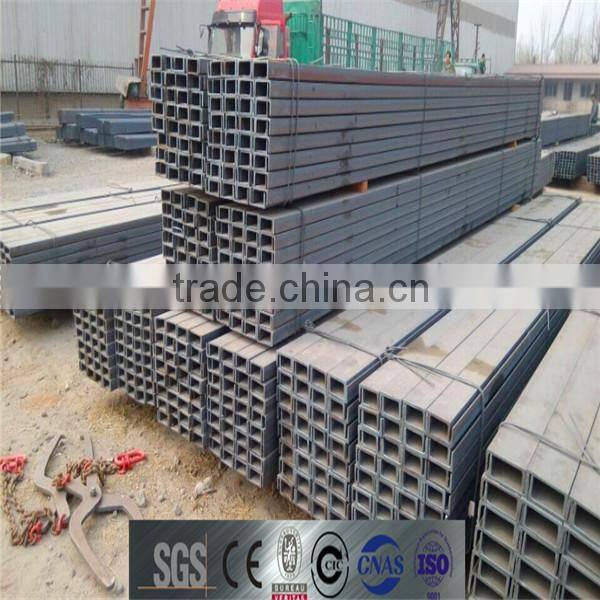

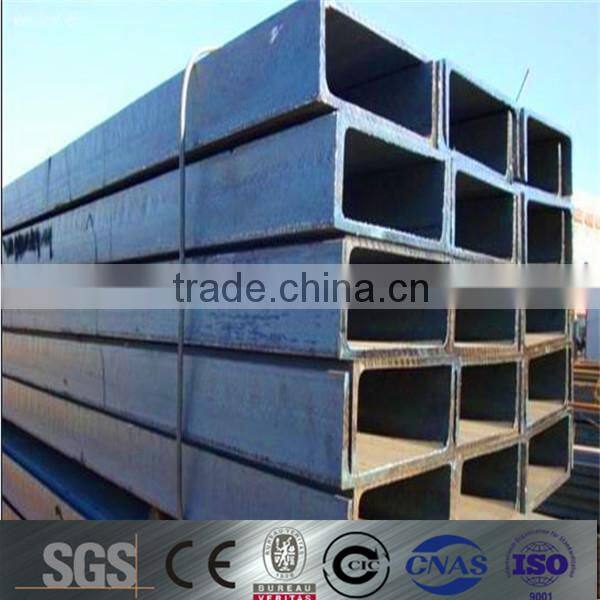

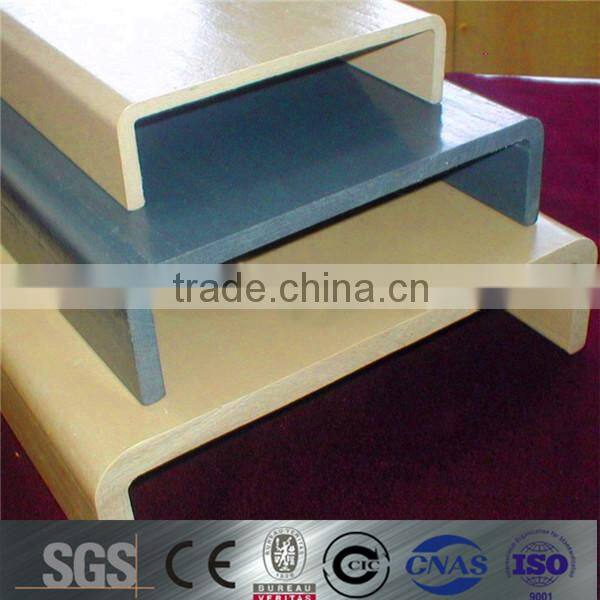

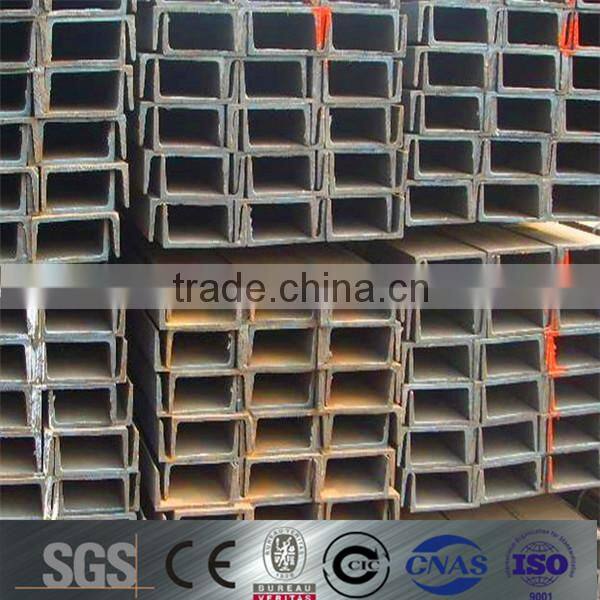

The picture of the products:
We export in Asia , Middle East , European, Africa, South America , Such as Bangladesh, India, Jordan, Pakistan, Indonesia, Maymar, Thailand, Malaysia, Egypt, Turkey etc.
