Home > Products > Profile Steel > Standard Metal Structural Carbon Steel i Beam Sizes, Q235,q345,s235jr,ss400
Standard Metal Structural Carbon Steel i Beam Sizes, Q235,q345,s235jr,ss400
US$ 280 - 395
/ Ton
25 Tons(Min. Order)
- tianjin xingang port
- T/T L/C D/P D/A Credit Card
You May Like
-
Hot Rolled Standard Metal Structural Carbon Steel i Beam Sizes for Sale, Q235,q345,s235jr,ss400
-
Hot Rolled Standard Metal Structural Carbon Steel i Beam Sizes for Sale, Q235,q345,s235jr,ss400
-
Prime Hot Rolled Carbon Steel i Beam Sizes for Sale, Q235,s235jr,ss400
-
Prime Hot Rolled Standard Metal Structural Carbon Steel i Beam Sizes for Sale,/i Beam in European Standard
-
Prime Hot Rolled Standard Metal Structural Carbon Steel i Beam Sizes A36
-
Prime Hot Rolled Standard Metal Structural ms Carbon Steel i Beam Sizes Standard i Beam Dimensions
Product Details
| Leg Height | 55-130mm | Depth | 100-300mm | |
| Standard | AISI, ASTM, BS, DIN, EN, GB, JIS | Grade | S235JR - S355J2 | |
| Place of Origin | Hebei, China | Brand Name | PENGLAI | |
| Model Number | 001 | Application | building and construction |
Product Description
standard metal structural carbon steel i beam sizes, q235,q345,s235jr,ss400
| 1) Material: Q235B, SS400,A36,S235JR | |||
| 2) Usage: structure construction and electronic tower building | |||
| 3) Weight tolarance: -4% TO -11% | |||
| 4) Payment terms: TT or LC | |||
| 5) Delivery date: within 30 days after receiving the LC or TT prepay | |||
| 6) Packing: Export package | |||
| 7) Inspection: accept third party inspection |
The sizes of IPE and IPEAA are as below:
IPE BEAMS | |||||||
Commodity size | Commodity size | b(mm) | Thickness (mm) | Theoretical Weight | |||
IPE80 | 80*46 | 3.8 | 5.2 | 6.0 | |||
IPE100 | 100*55 | 4.1 | 5.7 | 8.1 | |||
IPE120 | 120*64 | 4.4 | 6.3 | 10.4 | |||
IPE140 | 140*73 | 4.7 | 6.9 | 12.9 | |||
IPE160 | 160*82 | 5 | 7.4 | 15.8 | |||
IPE180 | 180*91 | 5.3 | 8 | 18.8 | |||
IPE200 | 200*100 | 5.6 | 8.5 | 22.4 | |||
IPE220 | 220*110 | 5.9 | 9.2 | 26.2 | |||
IPE240 | 240*120 | 6.2 | 9.8 | 30.7 | |||
IPE270 | 270*135 | 6.6 | 10.2 | 36.1 | |||
IPE300 | 300*150 | 7.1 | 10.7 | 42.2 | |||
IPE330 | 330*160 | 7.5 | 11.5 | 49.1 | |||
Length=6------12meters SS400 or Q235 | |||||||
IPEAA I BEAM | |||||||
Commodity size | Commodity size | b(mm) | Thickness (mm) | Theoretical Weight (kg/m) | |||
IPEAA80 | 78*46 | 3.2 | 4.2 | 4.95 | |||
IPEAA100 | 97.6*55 | 3.6 | 4.5 | 6.72 | |||
IPEAA120 | 117*64 | 3.8 | 4.8 | 8.36 | |||
IPEAA140 | 136.6*73 | 3.8 | 5.2 | 10.05 | |||
IPEAA160 | 156.4*82 | 4 | 5.6 | 12.31 | |||
IPEAA180 | 176.4*91 | 4.3 | 6.2 | 14.94 | |||
IPE200 | 196.4*100 | 4.5 | 6.7 | 17.95 | |||
Length=6------12meters SS400 or Q235 | |||||||

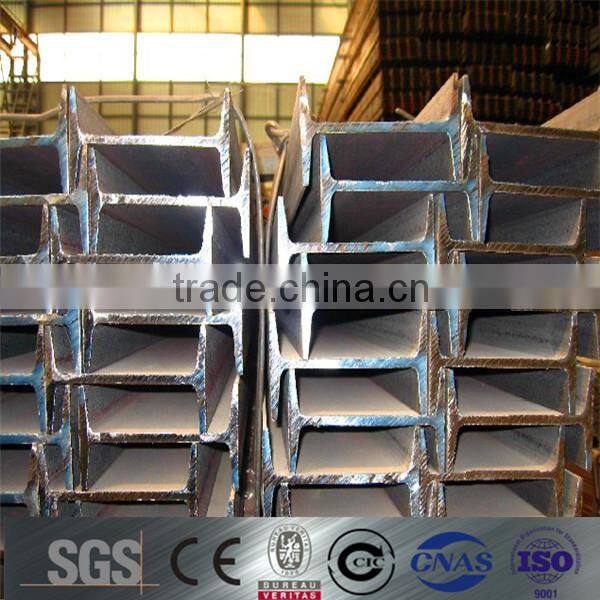

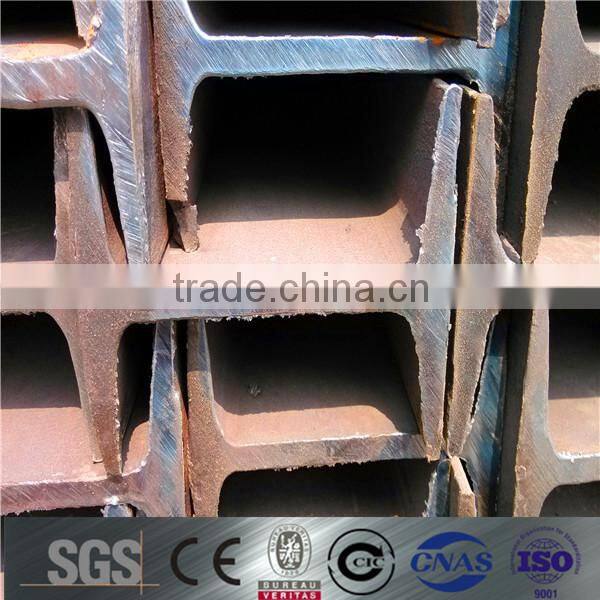

The detail pictures of the products:

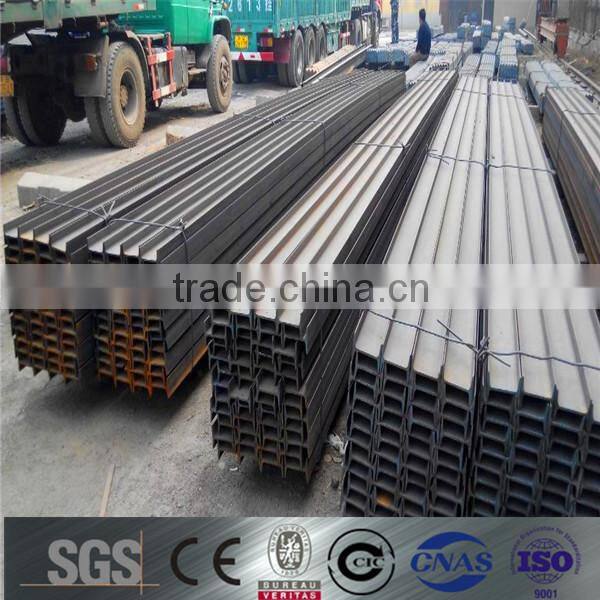

The products at stock:

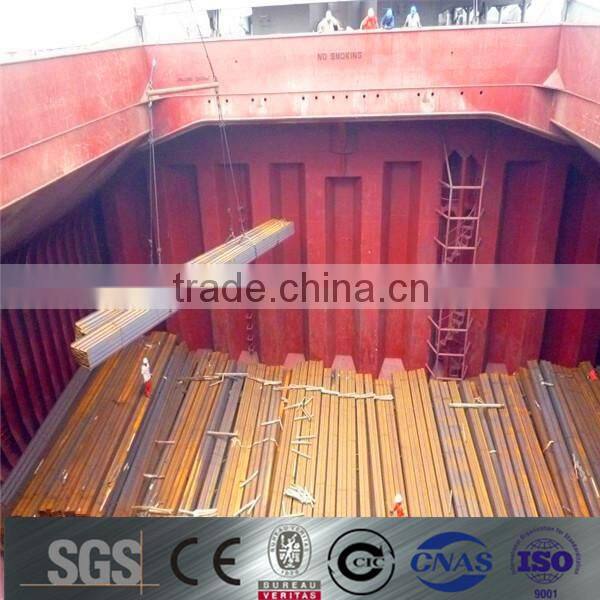

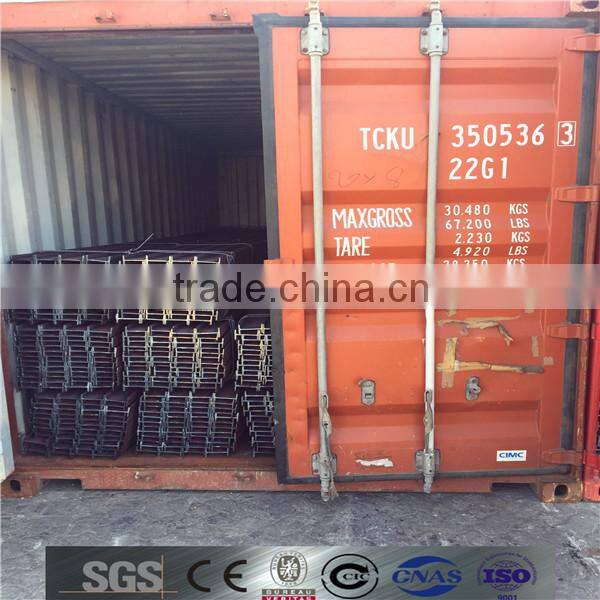

The transportation by container and by bulk vessel:
Company Information
Penglai Group includes Tangshan Penglai Trading Co., Ltd, Tangshan YingDong International Trading Co., Ltd., Xinmiao Industry and Trade, Zhuofan steel, Tangshan The First Cement Factory and Huarui Refractory Materials Factory.
We can provide:
Section steel (H beam, I beam, Angle steel, Channel steel, flat bar and so on.
Hot rolled and Cold rolled steel plate/coil
GI/PPGI/PPCR/Roofing sheet
Steel pipes(Round pipe and square pipe)
Steel billet/ Wire rod/ Deformed steel bar
We export in Asia , Middle East , European, Africa, South America , Such as Bangladesh, India, Jordan, Pakistan, Indonesia, Maymar, Thailand, Malaysia, Egypt, Turkey etc.
