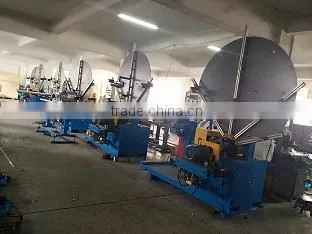

Spiral duct machine (Saw cutting )
- 20 Piece / Pieces per Month
- TIANJIN PORT
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Condition: | New | Type: | Pipe Production Line | Pipe Material: | Other, Spiral duct machine (Saw cutting ) ,Galvanized steel |
Application: | Other, Spiral duct machine (Saw cutting ) ,HVAC idustry | Production Capacity: | 1-455m/min | Place of Origin: | Tianjin, China |
Brand Name: | TANJIN COORIG,CHINA | Model Number: | SDM-1500 | Voltage: | 380v 3ph |
Power(W): | 5.5kw | Dimension(L*W*H): | 2700*1700*2300mm | Weight: | 2200KG |
Certification: | BV and ISO9000 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Spiral duct machine (Saw cutting ) ,Outside tube, on the inside on request
Spiral duct machine (Saw cutting )
Main Technical Specification
Tube diameter | 80-1500mm |
Tube length | 120-8000mm |
Suitable material | Galvanized steel,Stainless steel,Aluminum |
Thickness of strip | 0.4-1.2mm |
Width of strip | 137-140mm |
Strip speed | 1-45m/min |
Lock seam | Outside tube, on the inside on request |
Controlling system | PLC automatic control |
Main motor power | 5.5KW |
Cutting motor power | 4kw |
Cutting system | Sawing cutting |
Weight | 2200kg |
packing dimension | 2700*1700*2300mm |
Spiral duct machine (Saw cutting )
