Super Auto Duct Line 3
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Production Line
Pipe Material:
Other, Galvanized steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Vertical Duct ZipperNegotiableMOQ: 1 Set -
Tube Forming Machine, Round Elbow MachineNegotiableMOQ: 1 Piece
-
China Hvac Duct Machine, Spiral Duct MachineNegotiableMOQ: 1 Piece
-
China Duct Machine, Round Elbow MachineNegotiableMOQ: 1 Piece
-
Duct Machine, Spiral Duct MachineNegotiableMOQ: 1 Piece
Condition
New
Type
Pipe Production Line
Pipe Material
Other, Galvanized steel
Application
Other, HVAC industry
Production Capacity
15m/min
Place of Origin
Tianjin, China
Brand Name
COORIG
Model Number
ADL-3S-1250
Voltage
380V 3PH 50Hz
Power(W)
10 KW
Dimension(L*W*H)
2500*1800*1500
Weight
3500 Kgs
Certification
ISO 9000
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

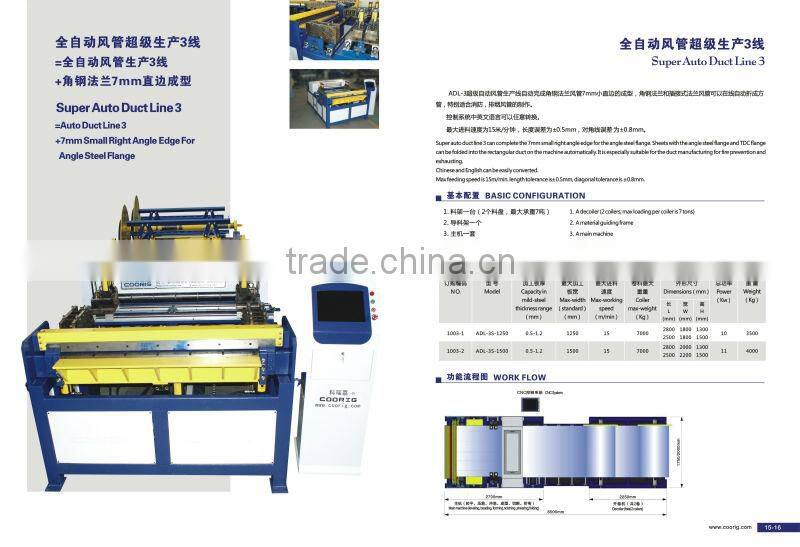

Super Auto Duct Line 3
Super auto duct line 3 can complete the 7mm small right angle edge for angle steel flange, sheet with the angle steel flange and TDC flange can be folded into the rectangular duct on the machine automatically. it is especially suitable for the duct producing for fire prevention and exhausting.
Basic Configuration:
* A material frame(2 coils; the max loading per coil is 7 tons)
* A transmission frame
* A main machine
* A CNC system
Main Technical Data
| No. | Model |
Capacity in mild-steel thickness range (mm) |
Max-width(standard) (mm) |
Max-working speed (m/min) |
Coiler max-weight (Kg) |
L*W*H (mm) |
Power (Kw) |
Weight (Kg) |
| 1003-1 | ADL-3S-1250 | 0.5-1.2 | 1250 | 15 | 7000 | 2800*1800*1300 | 10 | 3500 |
| 1003-2 | ADL-3S-1500 | 0.5-1.2 | 1500 | 15 | 7000 | 2800*2000*1300 | 11 | 4000 |

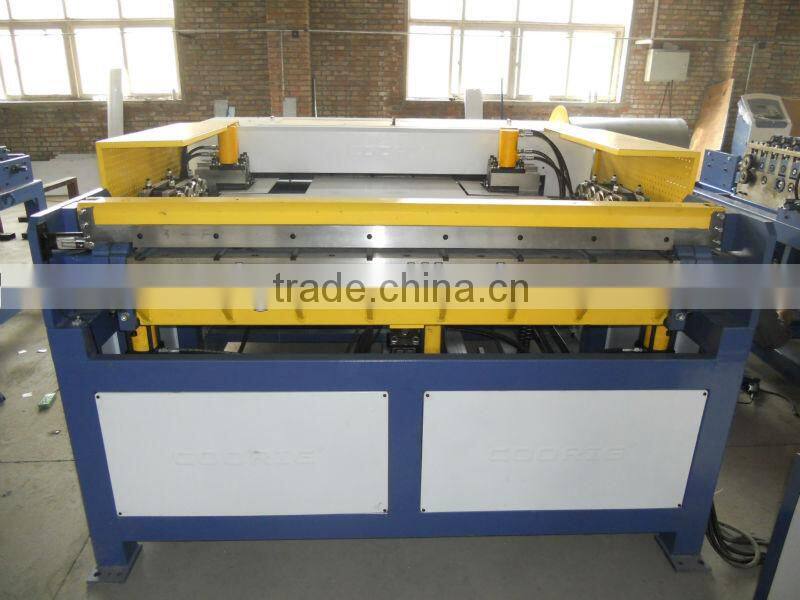

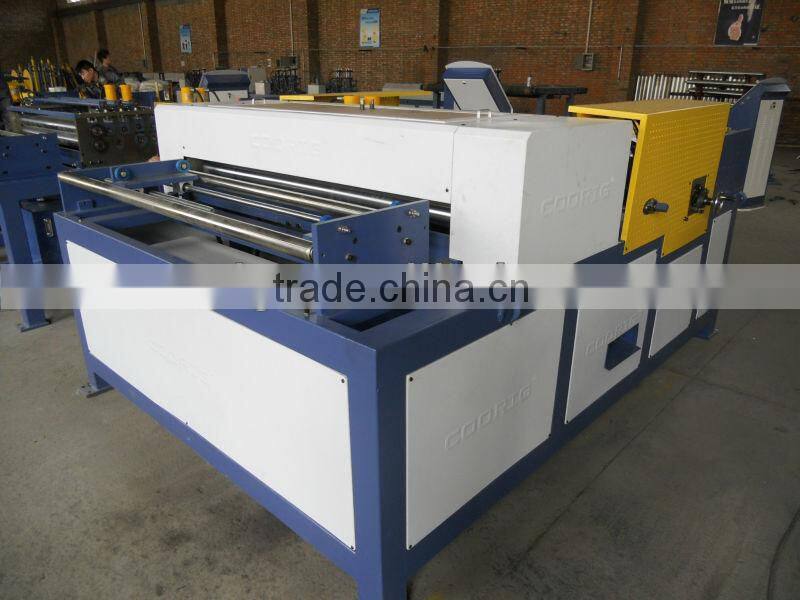

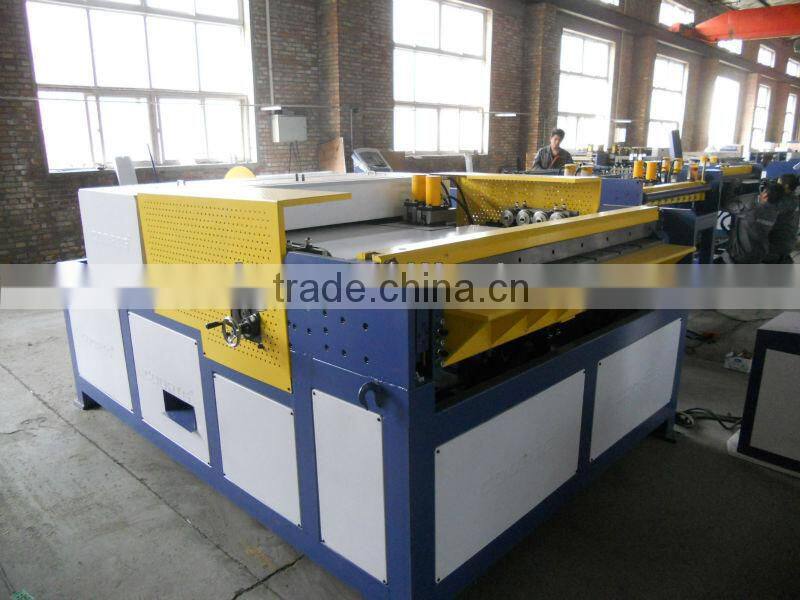

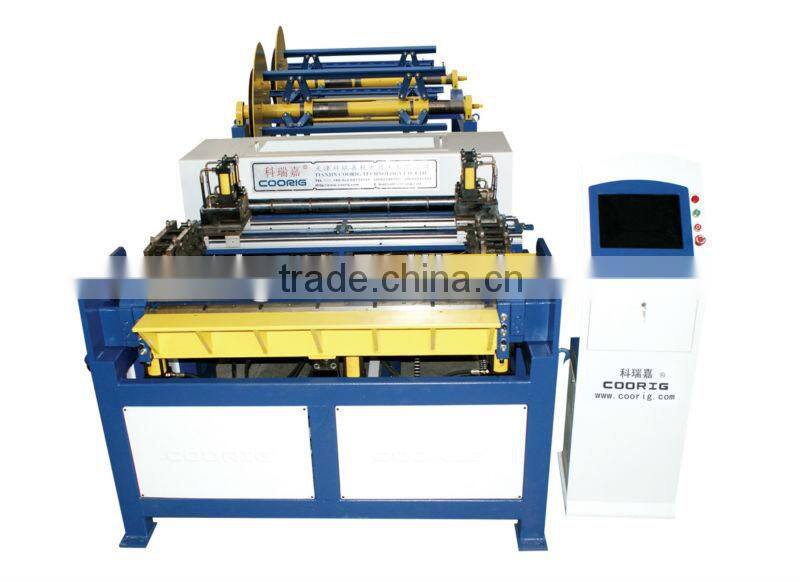

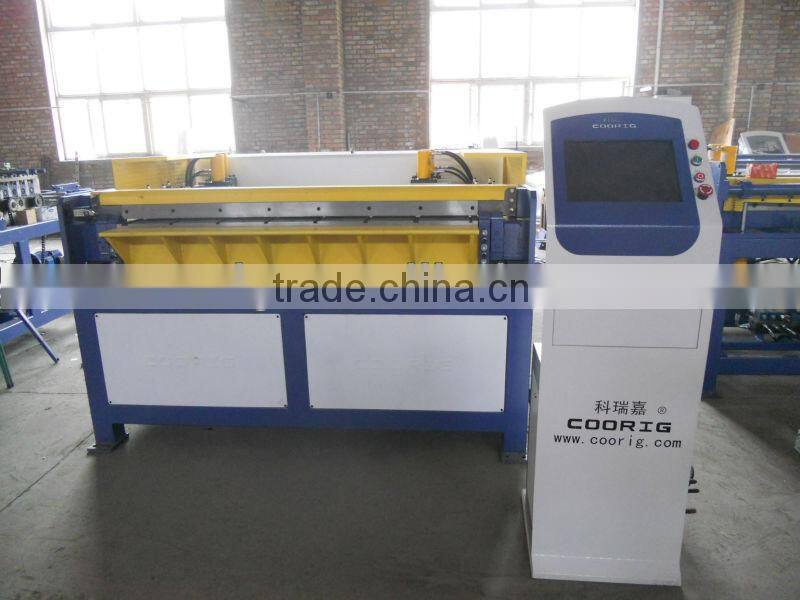

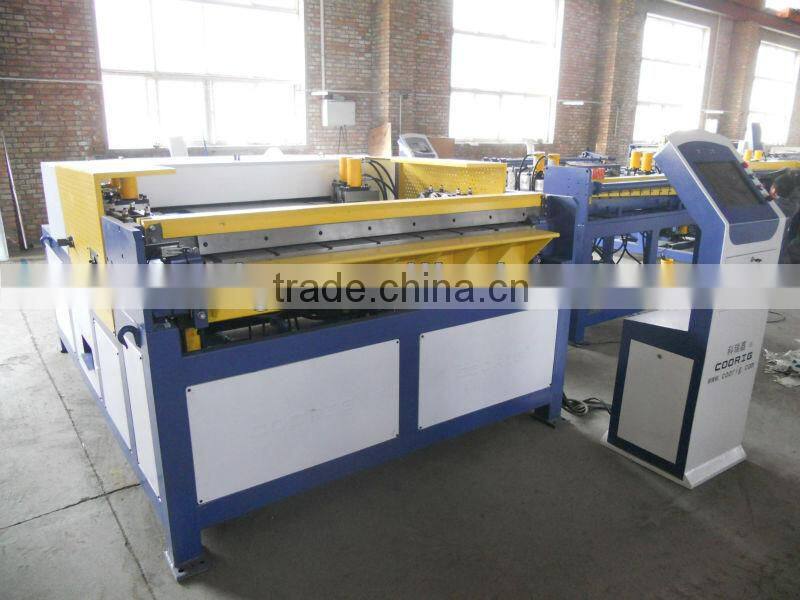

Appearance of the machine:

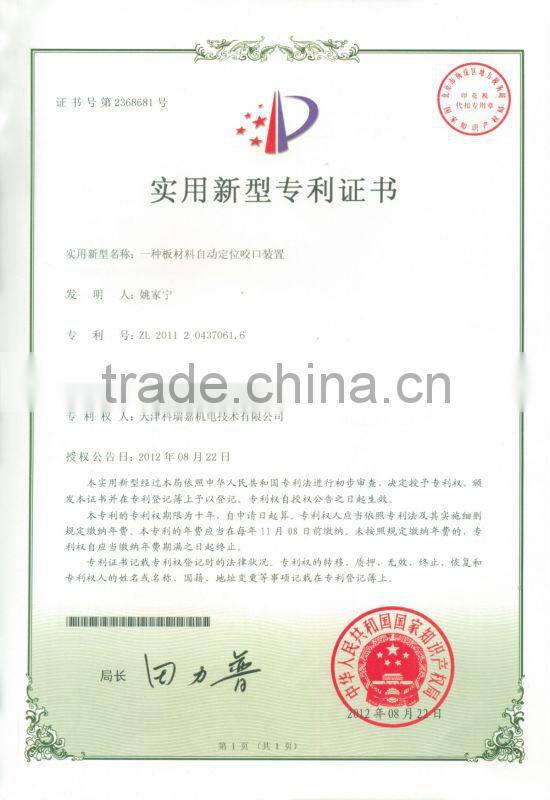

Certificate:
Packaging & Shipping
- Packaging Detail: A 20ft Container
- Delivery Detail: 30 Days after confirmation of P/I and receive 30% deposit.
Our Services
- After service and maintenance
- The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ ,MSN .email ,remote assistance ,and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance.
Company Information
- Tianjin COORIG Technology Co., Ltd. was established in 2004 which is a professional manufacturer for HVAC duct processing equipments and sheet metal forming equipments, our company has passed the ISO9000 certification and BV certification, develop a stable, efficient and automated product is our responsibility.
- COORIG uphold the “automation”, “fast and efficient service” as the core concept, always insist on technological innovation, independent research and development of new products to meet the diverse needs of customers, we have obtained the patents for national utility models. The company’s core products are auto duct line series and CNC plasma cutting machine series. Our products not only has a large market share in our domestic market, but also exported to Russia, India, Brazil, Australia, the Middle East, Southeast Asia, South America etc in 24 countries and regions.
- Services create value, Technology leading the trend, Professional achieved the future, select COORIG is your vision!
