Super Auto Duct Line 2
Super auto duct line 2 can complete TDF flange forming, cutting sheet metal for angel steel flange and pittsburgh lock forming. This line can be combined with Duplex TDF flange forming machine and Pneumatic folding machine to form a highly efficient linear production line.
Max feeding speed is 13m/min, length tolerance is +-0.5mm; diagonal tolerance is +-0.8mm.
with material saving mode and standard mode
Chinese and English language can be easily converted.
Basic configurations:
* A material frame(2 coils, the max loading per coil is 7tons)
* A transmission frame
* A main machine
* A movable pittsburgh lock forming machine
* A CNC System
Main Technical Data
| No. | Model |
Capacity in mild-steel thickness range (mm) |
Max-width(standard) (mm) |
Max-working speed (m/min) |
Coiler max-weight (Kg) |
L*W*H (mm) |
Power (Kw) |
Weight (Kg) |
| 1002-1 | ADL-2S-1250 | 0.5-1.2 | 1250 | 13 | 7000 | 2500*3400*1400 | 13 | 3500 |
| 1002-2 | ADL-2S-1500 | 0.5-1.2 | 1500 | 13 | 7000 | 2500*3800*1400 | 14.5 | 4000 |

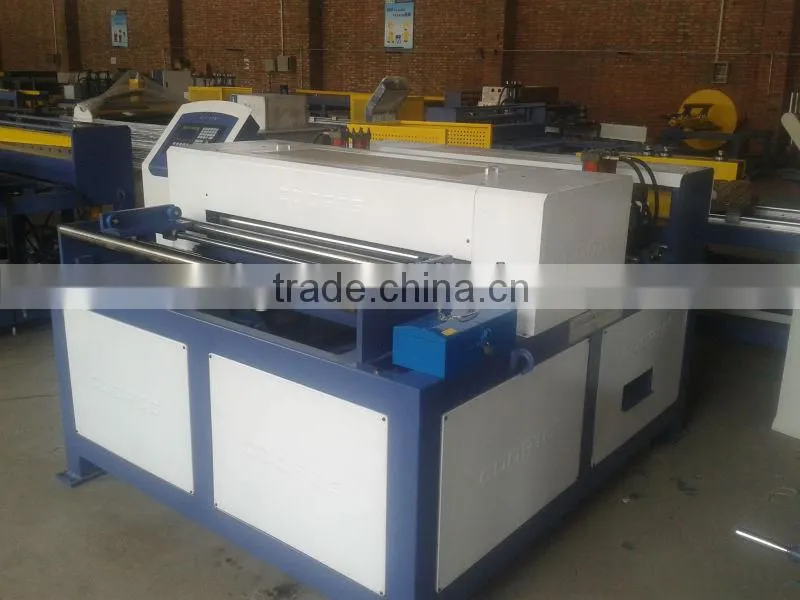

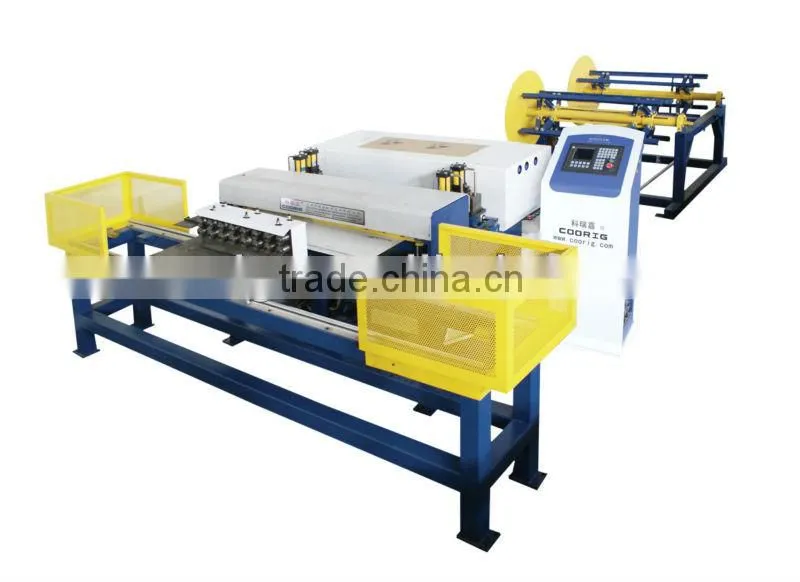

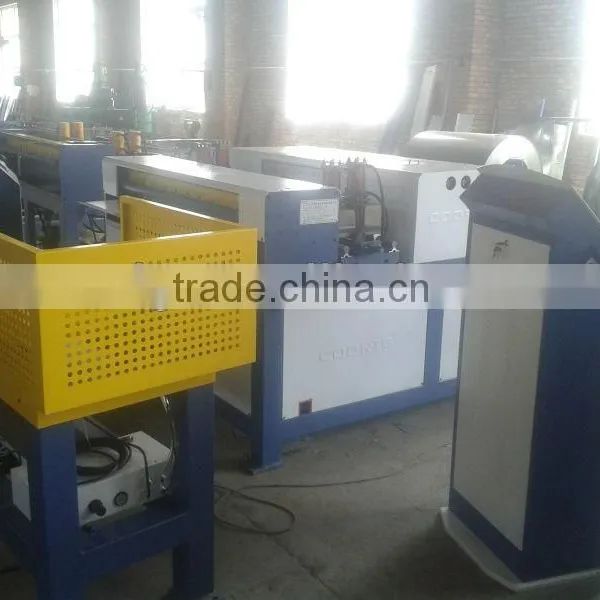

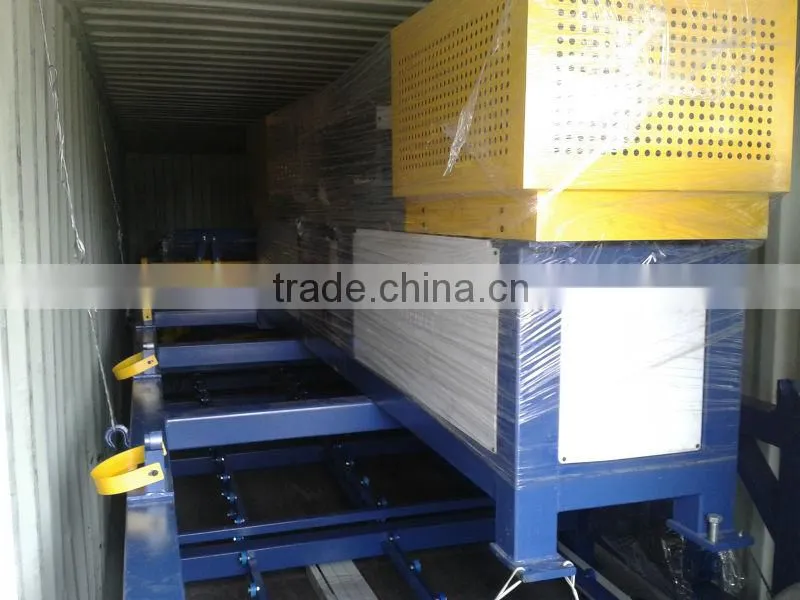

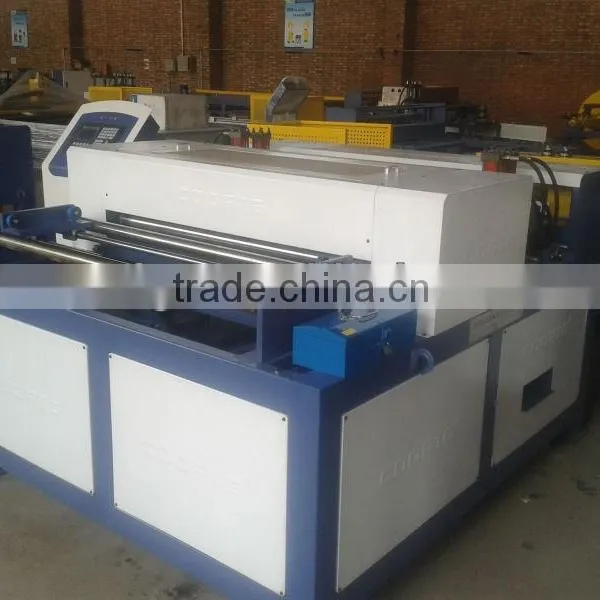

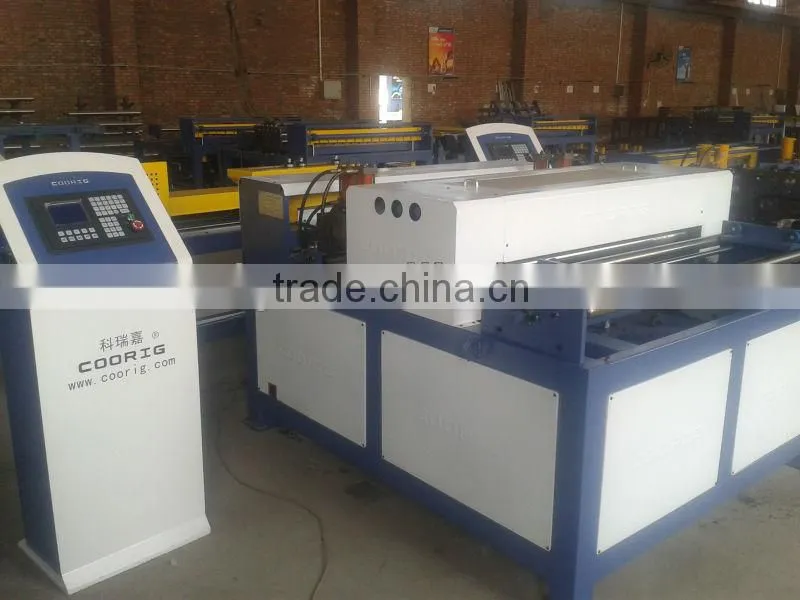

Appearance of the machine:
CERTIFICATE:
