Help CenterLiquid Level Sensor Module Water Level Detection Controller Sensor
Related Products
-
LM2576 Power Supply (With Light Coupling) 5V 12V 24V 16 Road/Channel Relay Module,NegotiableMOQ: 20 Pieces -
12V Delay Switch NE555 ModuleNegotiableMOQ: 100 Pieces
-
For Arduino Robot Kit DC 12V Rain Water Sensor Control ModuleUS$ 0.1 - 4.17MOQ: 50 Pieces
-
1-way-12V Flame Sensor Module Relay Module Fire FlameUS$ 0.1 - 2.5MOQ: 50 Pieces
-
12V Normally Closed Type Trigger Relay Delay Circuit ModuleUS$ 0.1 - 5.2MOQ: 10 Pieces

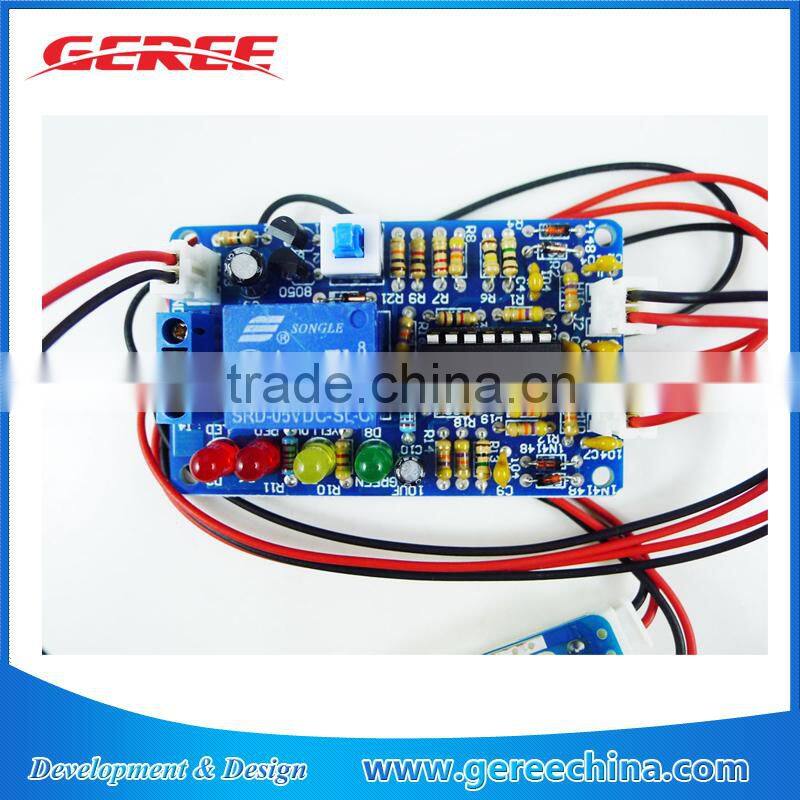

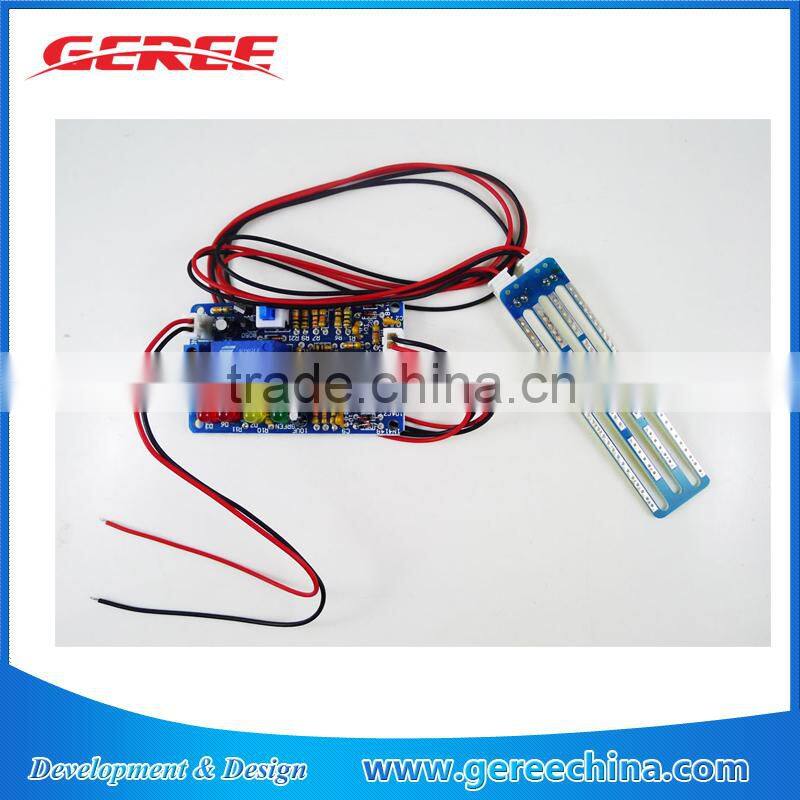

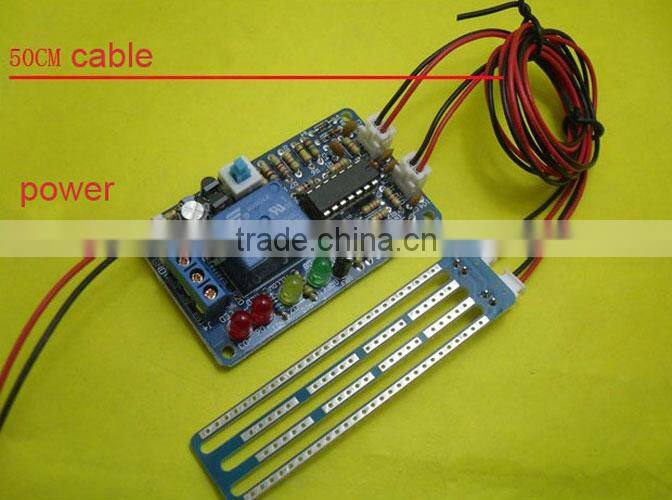

kit name : water level detection automatically pumping water control module
work voltage : 5v
relay contact capacity : 10a / 250v
control board measurement : 42 * 69mm
sensor measurement : 83 * 21mm
lct-1 level controller can hereinafter , two kinds of function :
three kinds of color led indicator low respectively ( red ) , in ( yellow ) , high ( green ) water level , lowstand pump water or high water table can can pump water switch switch , function switch when press bounce ( also 'll is in ) , low water level relay pickup ( circumscribing water pump work ) , addingwater start , forestry to the high water level relay Break ( pump stop working ) , stay again drop to low water level relay again pickup , the above cycle . application in this function automatic adding water equipment , can let maintain in the water level low water and high water table between . function switch when pressed , high water level relay pickup ( circumscribing solenoid valve work ) , start drainage , drop water level to low water level relay Break ( solenoid valve stop working ) , stay again rose to high water level relay again pickup , the above cycle . the should function used in automatic drainage equipment , can let water level in lowstand maintain and high water table between .
Test:
1 , not plug in the first sensor the two lines , continuousheating , lowstand of the indemnifiable ( red ) led luminous should .
2 . can be conductive tweezers ( steel material 's ) put j1 short circuited , water level the floodwas to water , this time water ( yellow ) shall led light .
3 . keep j1 state short circuited , with a tweezed will j2 short circuited , water level rise to the high water table , this time high water ( green ) led camp light emitting , relay pickup , relay indicator lamp led light .
package:
1XLiquid Level Controller Sensor Module Water Level Detection Sensor
