DC DC10-32V to 36V-60V Step-up Converter 120W MAX5A

DC DC10-32V to 36V-60V Step-up Converter 120W MAX5A thumbnail-1
DC DC10-32V to 36V-60V Step-up Converter 120W MAX5A photo-1
US$ 1 - 4 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GEREE
Model Number:
U013V
Contact Supplier Request Quote Chat Now
Shenzhen Geree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GEREE
Model Number U013V
Output Power 201 - 300W
Output Type Single
Size -
Weight 65g
Input Voltage 10-32V
Output Voltage 36-60V
Type DC/DC Converters
Output Frequency -
Output Current 5A

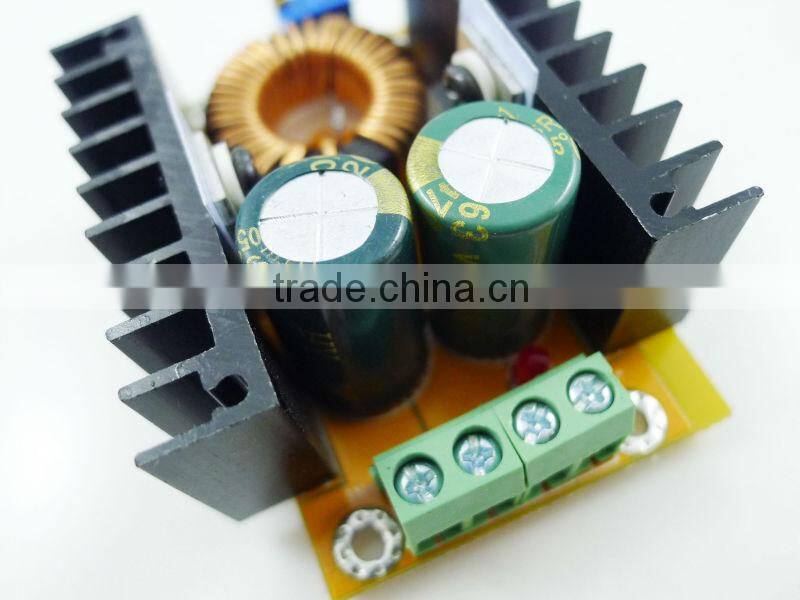

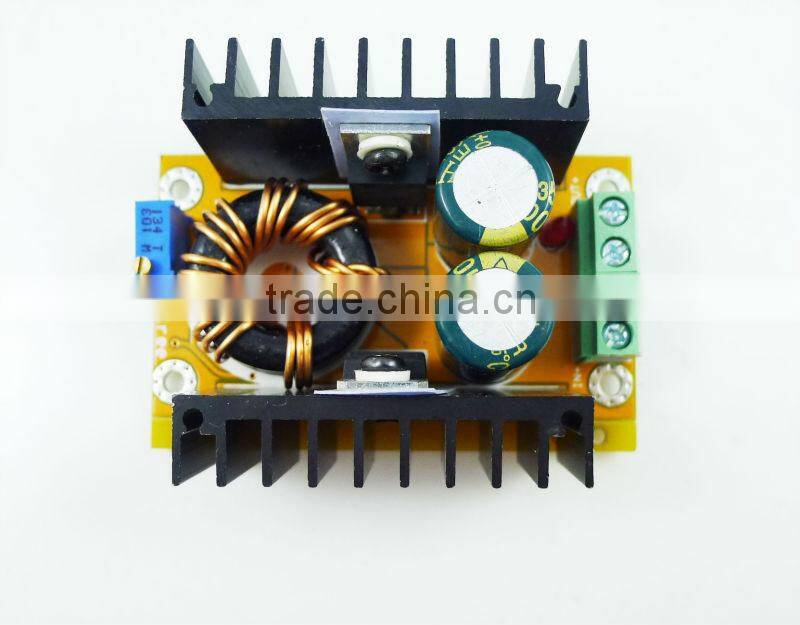

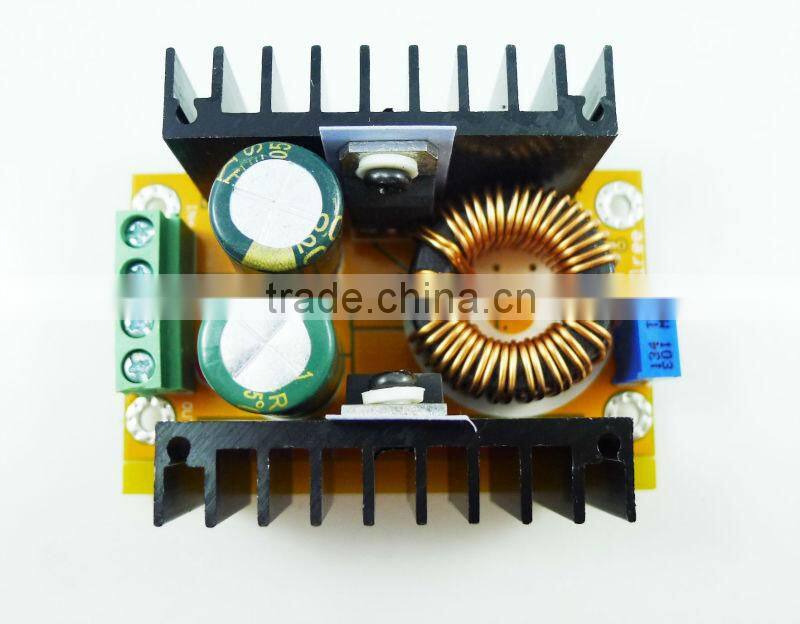

120W Boost DC-DC 10-32V to 36-60V Converter
Input: 10-32V, Output: 36-60V 5A





Featrure:

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage :10-32V
  • Output voltage: 36-60V (adjustable)
  • Output Current: 5A (MAX)
  • Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: natural cooling 82W (MAX), enhance heat dissipation 120W (MAX)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°c
  • No-load current: 25mA typical
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
  • Input Reverse Polarity Protection: None (Please Series diode at the input port.)


Some Applications:

1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.


 DC DC10-32V to 36V-60V step-up converter 120W MAX5ADC DC10-32V to 36V-60V step-up converter 120W MAX5ADC DC10-32V to 36V-60V step-up converter 120W MAX5A
