Home > Products > Power supply Module > DC/DC Converter Boost 12V to 24V 6A 150W Step Up Voltage Power Supply

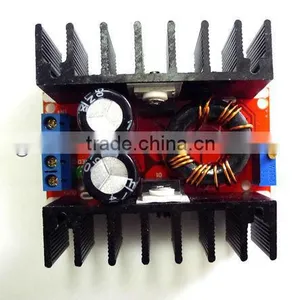

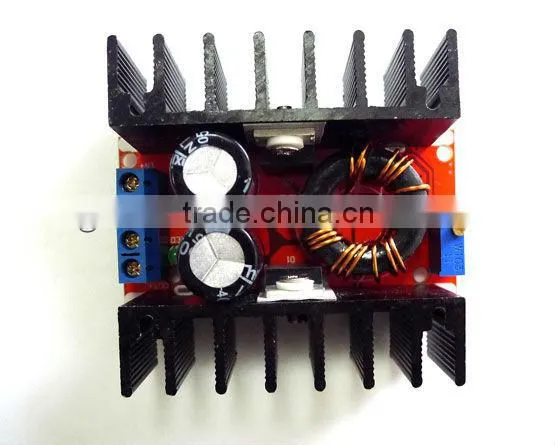

DC/DC Converter Boost 12V to 24V 6A 150W Step Up Voltage Power Supply
USD $3 - $3.3
/ Piece
50 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- shnzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Geree | Model Number: | U005V |
| Current Type: | DC |
Product Description
Specifications
150W Boost DC-DC 10-32V to 12-35V ConverterInput: 10-32V, Output: 12-35V 6A
150W Boost DC-DC 10-32V to 12-35V Converter
Input: 10-32V,
Output: 12-35V 6A
Featrure:
- Module Properties: non-isolated step-up module (BOOST)
- Input voltage :10-32V
- Output voltage: 12-35V (adjustable)
- Output Current: 6A (MAX)
- Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
- Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c - Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45°c
- No-load current: 25mA typical
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
- Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Some Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
