DC 3-30V to 4-35V Boost Converter Voltage Adjustable Module LM2577
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Geree
Model Number:
U002V
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC3V to 5V 1A USB Charger Boost Module for Phone IphoneNegotiableMOQ: 20 Pieces -
DC 3V-32V to 5V-35V 4A Dc-dc Buck Converter Step Down ModuleUS$ 0.9 - 1.2MOQ: 20 Pieces
-
DC to DC Converter Module Boost 10-32V to 12V -35V 150W Step Up Voltage MAX 10ANegotiableMOQ: 20 Pieces
-
DC-DC Step Down Step up Converter 4-35V to 1.25-25V 3A Max Adjustable Power Supply Battery Charger ModuleUS$ 2.9 - 4.2MOQ: 20 Pieces
-
Dc-dc Buck Converter Step Down ModuleNegotiableMOQ: 20 Pieces
Place of Origin
Guangdong, China
Brand Name
Geree
Model Number
U002V
Output Power
1 - 50W
Size
48 x 23 x 14 mm
Weight
0.011kg
Input Voltage
3V-30V
Output Voltage
4V-35V
Type
DC/DC Converters
Output Current
3A (max)
Specifications

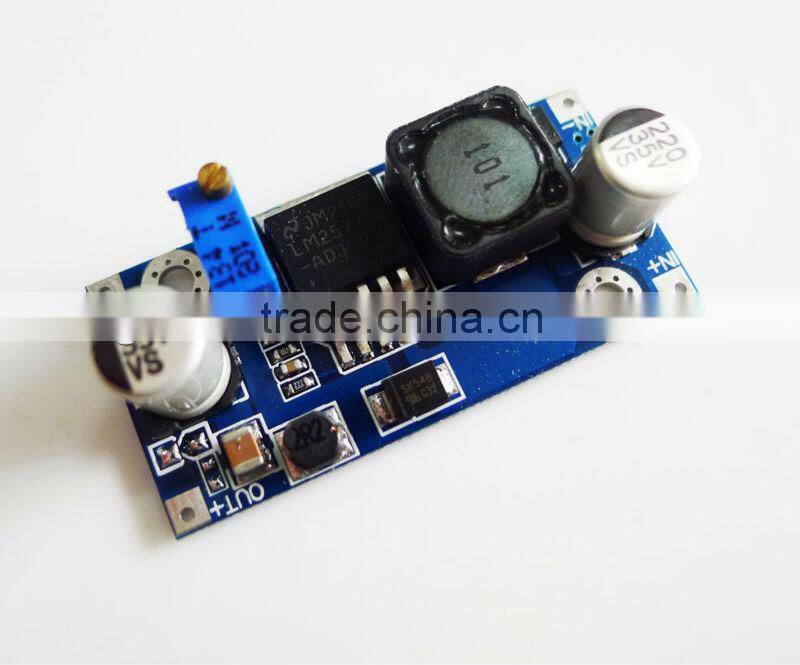

LM2577 3-30V to 4-35V DC-DC Boost Converter Step Up Voltage Adjustable ModuleFeatures :
Modules nature: Non-isolated step-up (Boost)
Rectification: Non-synchronous rectification
Input voltage: 3V-30V
Output voltage: 4V-35V
Input current: 3A (max), No-load current 15mA
Power: 15W, if install heatsink can reach 20W (MAX), Please do not exceed 20W, or it would burn out.
Conversion efficiency: 92% (highest)
Switching frequency: 50KHz
Output ripple: 50mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Operating Temperature: -40 ° C to +85 ° C
Dimension: 48 x 23 x 14 mm
Short Circuit Protection: NONE
Applications:
DIY a mobile power supply
Boost charger
Power supply for electronic equipment
