China dredges gold
1. Brife Introduction
Gold panning dredger, as an integral unit for mining and concentration that is constructed in engineering flat boat and floats on water, is usually composed of excavation, ore washing, tailing disposal, water supply, power supply and lateral movement systems etc.
1. Hull:
It is made of two or three pontoons, easy to install or take apart during shipment , including operating cabin, pump cabin and so on .
2. Dredging System:
It includes bucket, chain, underwater big arm, upper and lower tumbler, active power, main reducer, main frame and other components.
3. Mine Selecting Equipment:
It can include trommel screen, gold jigger machine, Fluctuation sluice box, fixed sluice with carpet or centrifugal concentration machine.Engineer will design according to your mining site environment.
4. Tailings System:
It can include conveyor belt, fixed sluice, motor, reducer .It can discharge the tailing to the river.
6. Power System:
It contains diesel engine, electronic generator sets, distribution box.
It is used for providing power for the entire dredger.
2. Parameters for your reference:
Model |
HAGD-50 |
|
Dimension |
L*W*H(mm) |
16*1.8*1.0 |
Working Capacity |
m3/h |
80-120 |
Dredging depth |
m |
3 |
Bucket |
Size(mm) |
500*500 |
Power(kw) |
22kw-6 |
|
Quantity(piece) |
around 50 |
|
Trommel |
Type |
Double layer |
Power(kw) |
7.5 |
|
Outer Dia(mm) |
1500 |
|
Inner Dia(mm) |
1100 |
|
Length(mm) |
3200 |
|
Chute |
Length(mm) |
7000 |
Width(mm) |
1500 |
|
Type |
with carpet |
|
Positioning anchor |
Unit |
4 |
Power |
Diesel generator |
100kw |
Please notice that all the parameters are only for your reference.
As clients’ mining site environment are different,engineer will usually have different design according to the local mining environment.It will make sure you get the best design to have more gold mining .

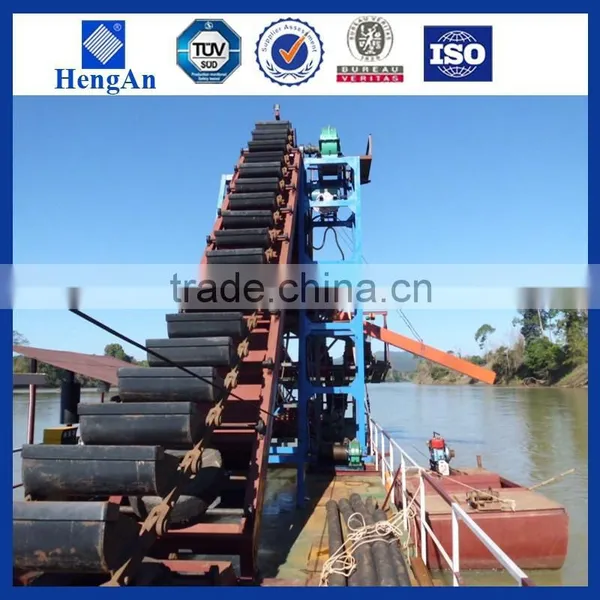

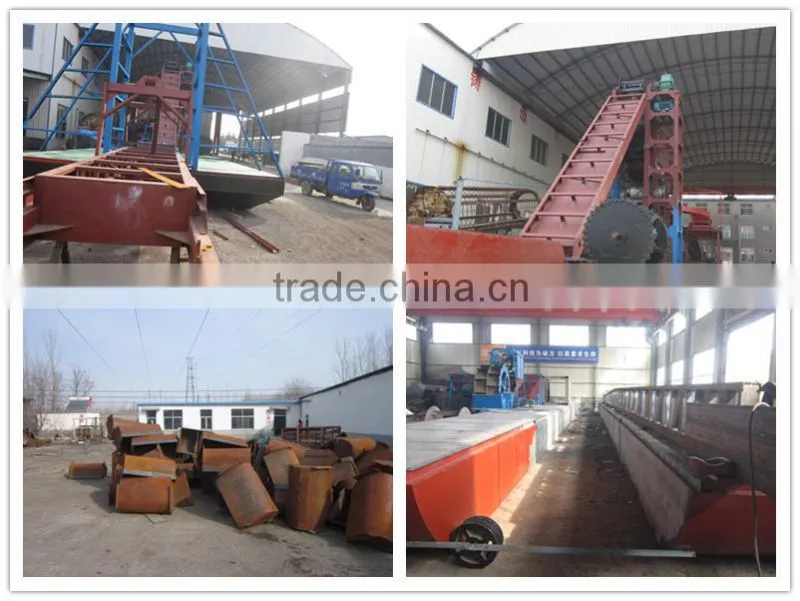

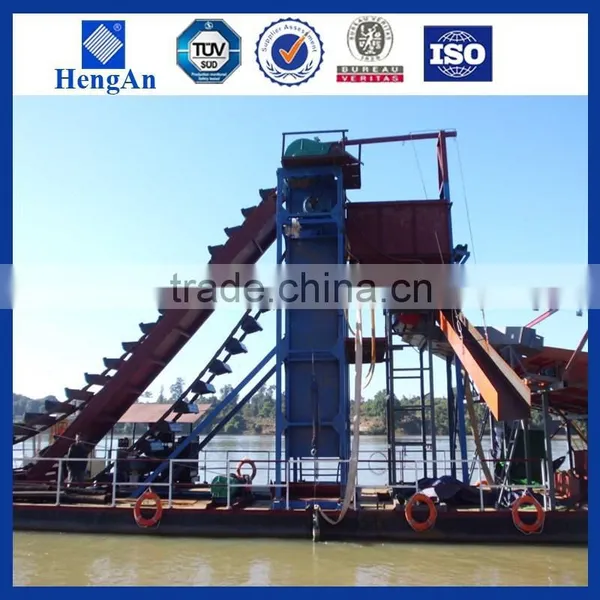

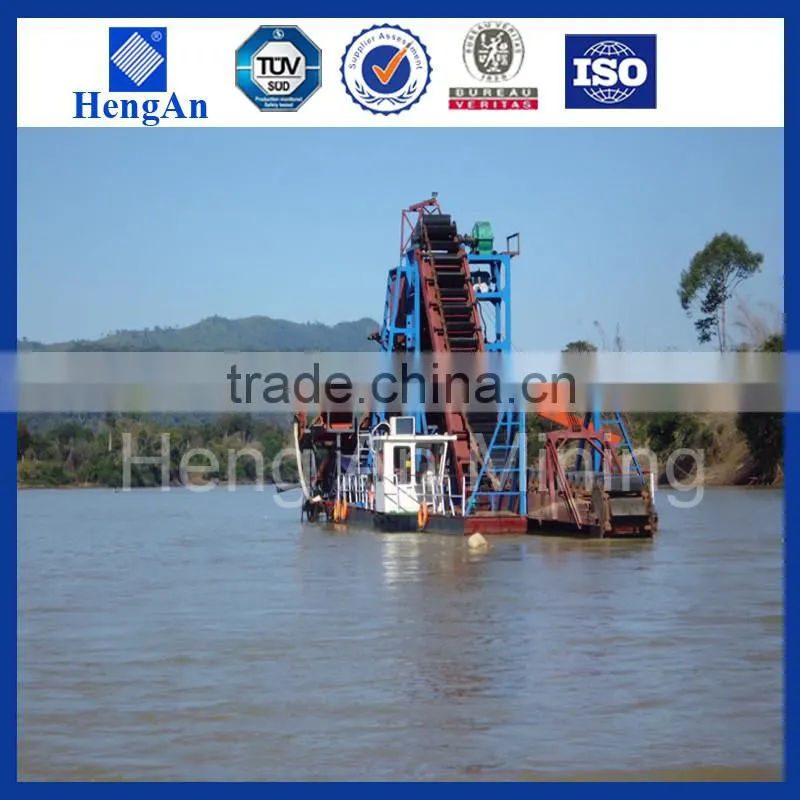

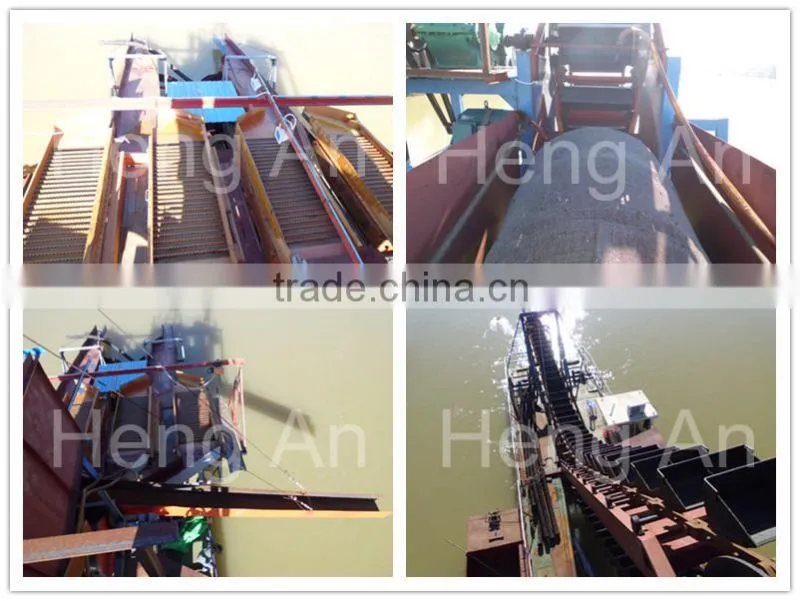

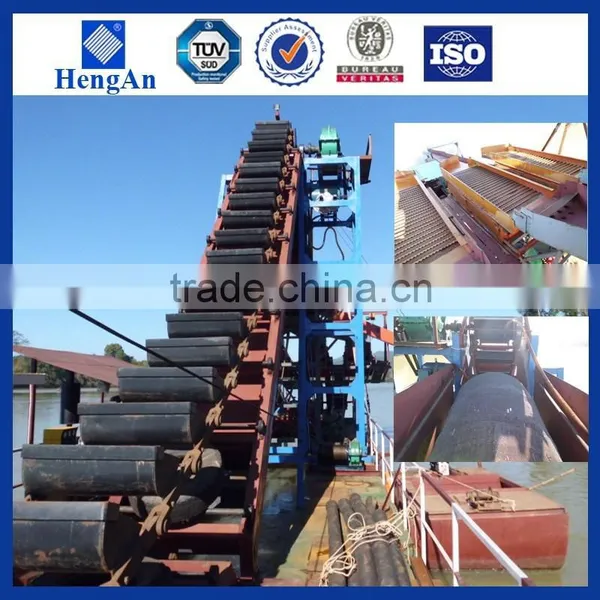

3.Pictures of our gold mining dredger
4. Our service for you:
-- Particular design according to your mining site environment
--Meeting with you and machine showing when you visiting in our factory
--Good quality material and fast production after confirm the order
--Testing machine before delivery
--Safe and professional delivery and shipping team
--Supply engineer to do installment and guide when the machine arrive to your
mining site
--Fast supply for spare parts
5.Weifang Heng An Mining
We are a group company in China since 1975, mining factory have history more than 20 years , Our mining are mainly for gold mining and sand mining .For the sand mining , different type sand dredger ,sand washing plant .For gold mining , gold mining dredger, dryland mining plat.We exported more than 20 countries,welcome to visiting us .
6.Please give me more information beofer our design :
No. |
Inquiry |
Reply by customer |
1 |
In river, sea, or lake? |
|
2 |
Depositional sand or primary sand? |
|
3 |
Depth of the water (m)? What is the digging depth (below the water)? |
|
4 |
Thickness of sand and stones layer? |
|
5 |
Rate of stones among solid media? |
|
6 |
Diameter of the stones (mm)? |
|
7 |
Need sand or stone or not except gold washing? |
|
8 |
Maximum depth needing to excavate (from water surface)? |
|
9 |
Content of the gold ? |
|
10 |
Output of the raw material per hour(m3) |
|
11 |
Wanted size of the gold dredger |
|
12 |
Electric or hydraulic equipment needed or not |
|
13 |
Mud layer or not? |
|
14 |
Wanted size of the mercury pool? |
|
15 |
Can offer more detailed ideal data or not? |
|
Any other problem ,please feel fre to contact me if you have any problem of our gold dredger.
Sales Manager:Ms.Sunny Zhou
Mob:0086 1886625022
Email:export03(at)
Skype:wfhengan02
