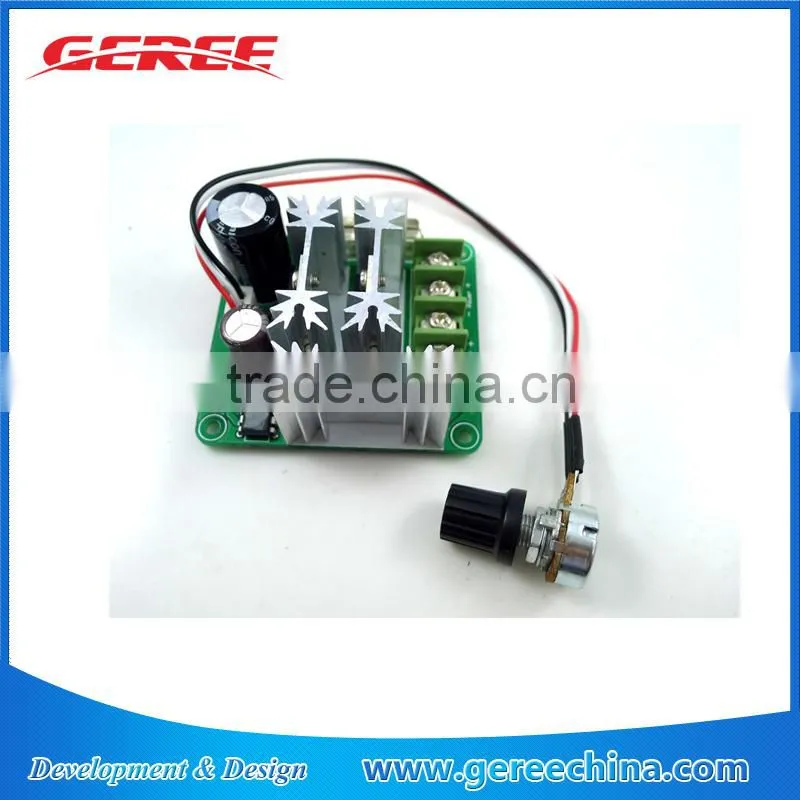

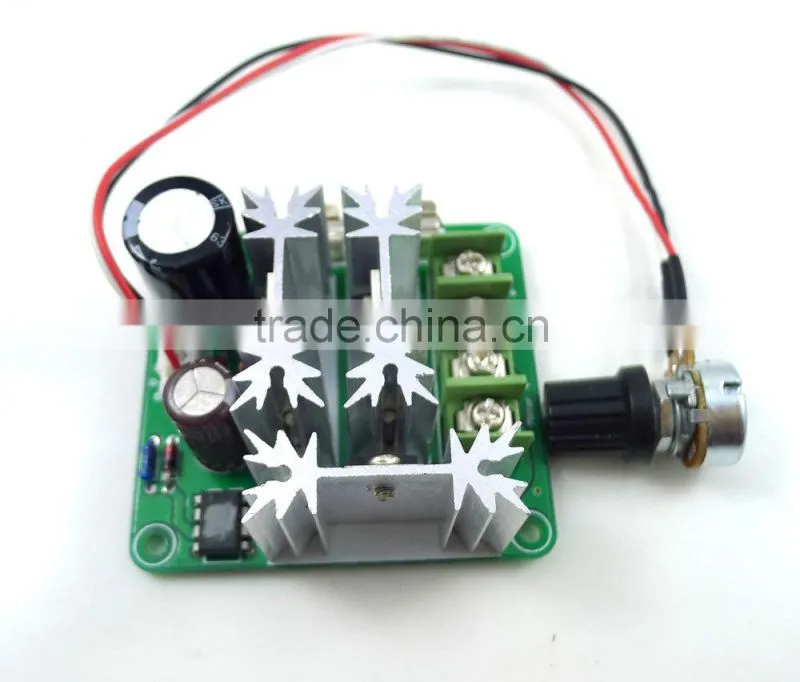

6V-90V 10A PWM DC Motor Speed Control
Features:
DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller can provide a
continuous current of 10A to your DC motor or other DC load.
The circuit also includes a 20A fuse, with reverse connection of power
supply and control voltage over-voltage protection function.
Main technical parameters:
Input supply voltage: 6V-90VDC
The maximum output power: 0.01-1000W
The maximum continuous output current :10A;
The overload and short circuit protecting current is 15A
PWM frequency: 16kHz
Duty Cycle adjustable: 0%-100%
The 20A fuse with reverse connection of power supply and control
voltage over-voltage protection function
Can adjust the speed by the external 0-5V signal
Specifications:
Item size:64*59*28mm
Two mounting holes of 3.2 mm each
Net weight: 80g
Important Notes
An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is
recommended to ensure safe operation.
The controller is with reverse-polarity protection and the fuse will be damaged if connect the
supply voltage with wrong polarity. Double check all connections before applying power and always
turn off the power supply before making any wiring changes.
Package include:
1 x 6V-90V Speed Control Switch
