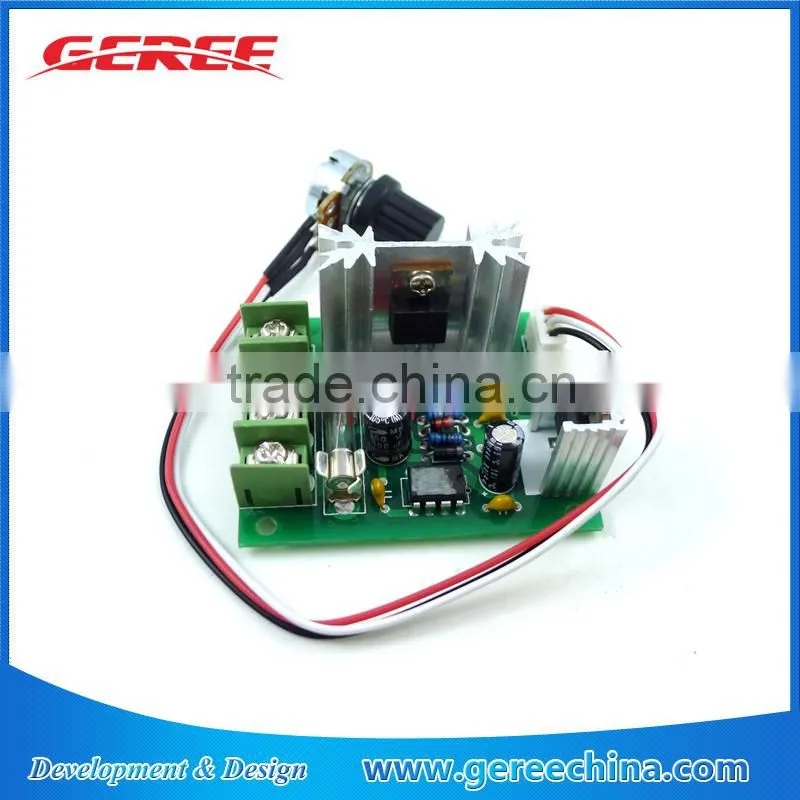

10V-30V 120w MAX PWM DC Motor Speed Control
Features:
DC Motor Speed Controller allows controlling speed of a DC
motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle
fully adjustable from 0%-100%. The motor speed controller can provide a
continuous current of 5A to your DC motor or other DC load.
The circuit also includes a 10A fuse, with reverse connection of power
supply and control voltage over-voltage protection function. The circuit also
includes LED whose brightness varies proportional to the relative speed of
the motor therefore giving a visual feedback of the current speed.
Main technical parameters:
Input supply voltage: 10V-30VDC
The maximum output power: 120W
The maximum continuous output current :5A;
The overload and short circuit protecting current is 10A
PWM frequency: 1kHz
Duty Cycle adjustable: 0%-100%
The 10A fuse with reverse connection of power supply and control
voltage over-voltage protection function
Power-On LED indicator
Specifications:
Item size:60*47*28mm
Four mounting holes of 3.2 mm each
Net weight: 50g
Important Notes
An appropriately rated fuse (rated a little higher than the maximum
current you expect to draw) is recommended to ensure safe
operation.
The controller is with reverse-polarity protection and the fuse will
be damaged if connect the supply voltage with wrong polarity.
Double check all connections before applying power and always turn
off the power supply before making any wiring changes.
Package include:
1 x10V-30V Speed Control Switch
