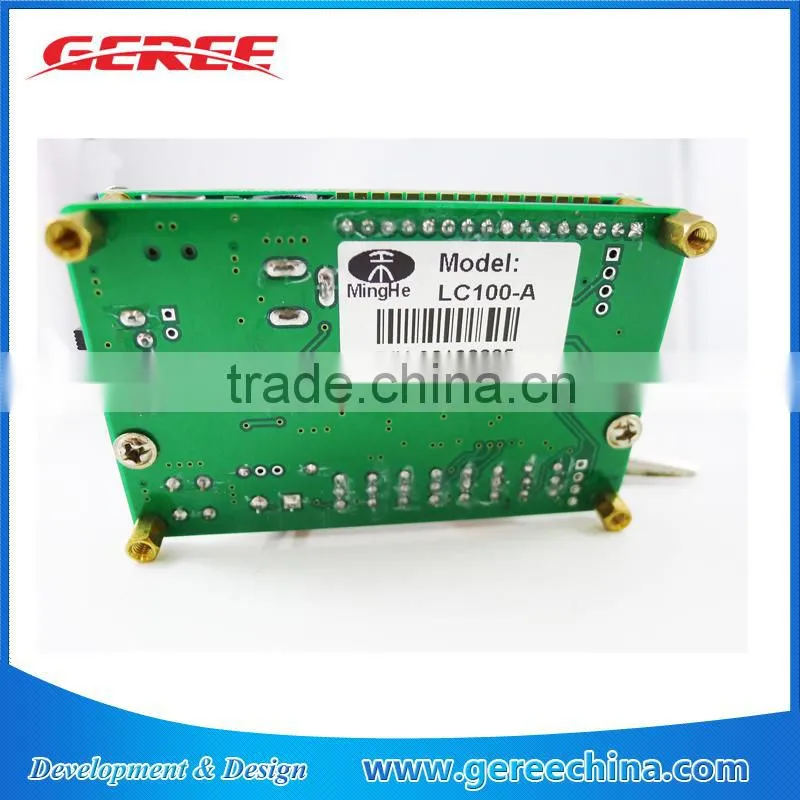

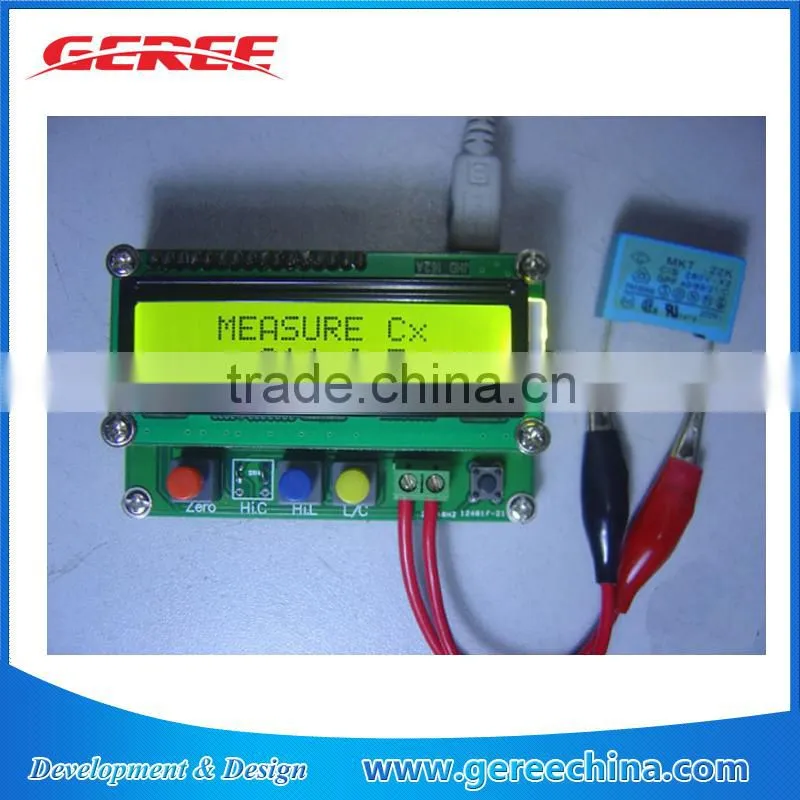

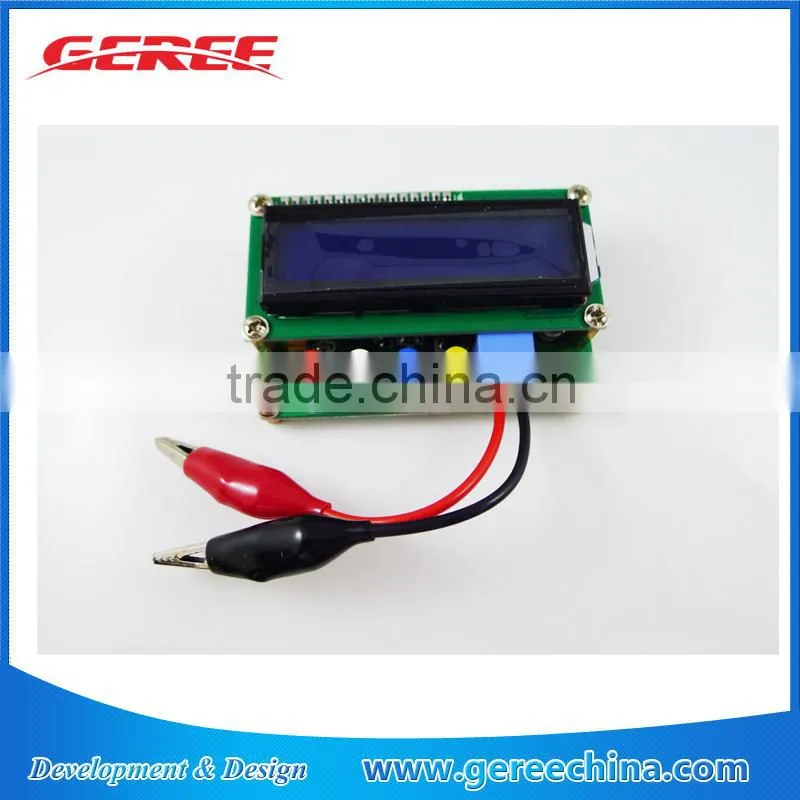

LC100-A Digital LCD High Precision Inductance Capacitance L/C Meter Tester
Features:
100% brand new and high quality
modle:LC100-A
Supply power: +5v ,mini USB interface
Measurement accuracy:1%
Capacitance measuring range: 0.01 pF - 10uF
The minimum resolution: 0.01 pF
Big Capacitance measuring range :1uF-100mF/minimum resolution:0.01UF
Inductance measuring range: 0.001 uH - 100mH
Big inductance measuring range: 0.001 mH - 100H
The minimum resolution: 0.001uH
Test frequency range: L/C about 500KHZ/Big inductance 500HZ
Effective display digits: 4 digits
LCD display mode: 1602
Powered by Mini USB cable(included)
Note:
When measuring the frequency of the inductance or Capacitance, please press the black button.
Please reset to zero, before testing a Capacitance or inductance, or it may damage the board.
If the result on the LCD is not stable, it s normal due to the poor quality of L/C.
Specifications:
Original box: NO
Color: Green & Black
Item size: 83*50*22mm
Net weight: 109g
Package weight: 120g
Packet content:
100% Brand New
1 x LC-100A sensor
1 x USB power cable
