Home > Lights & Lighting > LED Interior Lighting > LED Tube > High Quality Integrated Led Light Tube With CE,TUV,RoHS

High Quality Integrated Led Light Tube With CE,TUV,RoHS

High Quality Integrated Led Light Tube With CE,TUV,RoHS thumbnail-3

High Quality Integrated Led Light Tube With CE,TUV,RoHS thumbnail-4

High Quality Integrated Led Light Tube With CE,TUV,RoHS thumbnail-5

High Quality Integrated Led Light Tube With CE,TUV,RoHS thumbnail-6

High Quality Integrated Led Light Tube With CE,TUV,RoHS photo-1

High Quality Integrated Led Light Tube With CE,TUV,RoHS photo-2

High Quality Integrated Led Light Tube With CE,TUV,RoHS photo-3

High Quality Integrated Led Light Tube With CE,TUV,RoHS photo-4

High Quality Integrated Led Light Tube With CE,TUV,RoHS photo-5

High Quality Integrated Led Light Tube With CE,TUV,RoHS photo-6

US$ 7.13 - 14.12 MOQ: 10 Pieces

Key Specifications

Get Latest Price

LED Light Source:

SMD3528 Epistar

Warranty(Years):

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Shenzhen Bright Lighting Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD3528 Epistar

Warranty(Years) 3

Input Voltage(V) AC85-265V

Lamp Power(W) 18

Lamp Luminous Flux(lm) 1500-1700

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) -20, 45

Working Lifetime(Hour) 100000

Lamp Body Material Aluminum Alloy

IP Rating IP65

Certification CE, EMC, LVD, UL

Place of Origin Guangdong, China

Brand Name BRT

Model Number Other, T5/T8/T10/T5Integration, BRT-T8-1200-18W

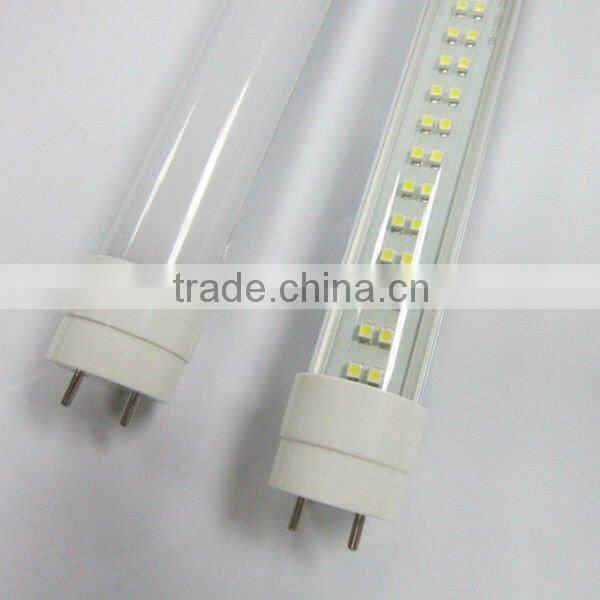

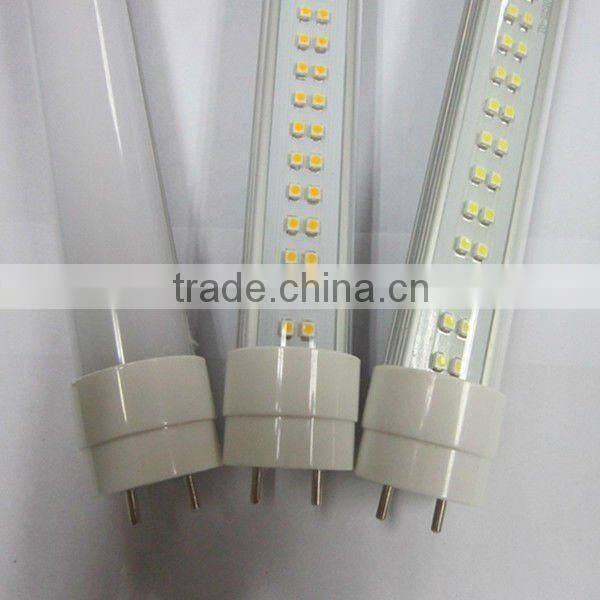

As a professional manufacturer of T8 LED Tube, we have many kinds of T8 LED Tube lights for choosing. Advantages of our T8 LED Tube are no RF interference, free maintenance, easy installation, low power consumption, high intensity, and long lifetime.

Led Tube Light Specifications:

Item No.:	T8 LED Tube	Color Temp:	2800 - 7000K
Light Source:	SMD3528 Eipstar	Life Span:	50,000Hrs
Input Voltage:	86 - 265Vac	Material:	Aluminium + pc
Power:	18W	Certificate	TUV,CE,RoHS
Led Efficiency:	100Lm/W	Power Factor:	0.99
Led Qty:	288 PCS	Lumen:	1500-1700Lm
Dimension:	25.6mm	Length:	1198mm
CRI:	72 ~ 85Ra	Warranty:	2 years

LED tube light features:

1.Isolated power supply and can be replaced easily by hand.

2.High luminous 0.06W SMD LED and low light decay.

3.Constant LED forwarder current during tube operating.

4.Temperature difference less than 10 deg between inside and outside.

5.Environment friendly,no UV and infrade radiation,no risk of mercury emission.

6.It's ideal for replacing incandescent lamp.

7.TUV,CE,RoHS approved.

Installation Intructions:

A:Take down the "Starter and Electronic Ballast" when you replace the traditional tubes into
Led tubes.

B:How to change the beaming angle:
step a: take off the tube, make sure on both sides, the angle mark are all on the degree of 90
step b: on both sides, change the angle mark to a same degree that you need
step c: install the tube into the fixture.

More models of tube:

Item No.:	LED tube	Item No.:	LED tube
Light Source:	SMD3528 Eipstar	Light Source:	SMD3528 Epistar
Input Voltage:	86 - 264VAC	Input Voltage:	86 - 264V AC
Power:	10W	Power:	15W
Led Efficiency:	Above 90Lm/W	Led Efficiency:	Above 90Lm/W
Led Qty:	120 PCS	Led Qty:	288 PCS
Lumen	900Lm	Lumen	1750Lm
CRI:	72 ~ 85Ra	CRI:	72 ~ 85Ra

Item No.:	LED tube	Item No.:	LED tube
Light Source:	SMD3528 Epistar	Light Source:	SMD3528 Epistar
Input Voltage:	86 - 264V AC	Input Voltage:	86 - 264V AC
Power:	12W	Power:	20W
Led Efficiency:	Above 90Lm/W	Led Efficiency:	Above 90Lm/W
Led Qty:	144 PCS	Led Qty:	360 PCS
Lumen	820Lm	Lumen	2000Lm
CRI:	72 ~ 85Ra	CRI:	72 ~ 85Ra

Trading terms:

1.MOQ:10pcs/model.

2.Warranty:2 years.

3.Shipping Method:Express DHL/UPS/Fedex/EMS,Air Cargo,Sea,for small/big quantity.

4.Production Time:3-5 days for samples.7-12 days for offical orders.

5.Payment:T/T,Western Union,Paypal,30% for prepayment,balance paid before delivery.

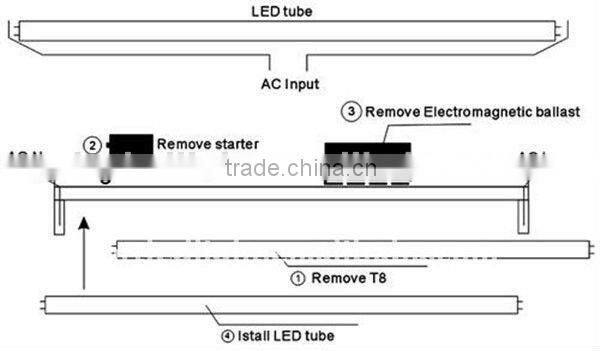

LED tube intallation instruction:

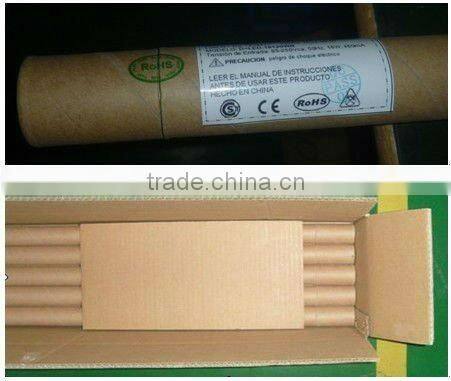

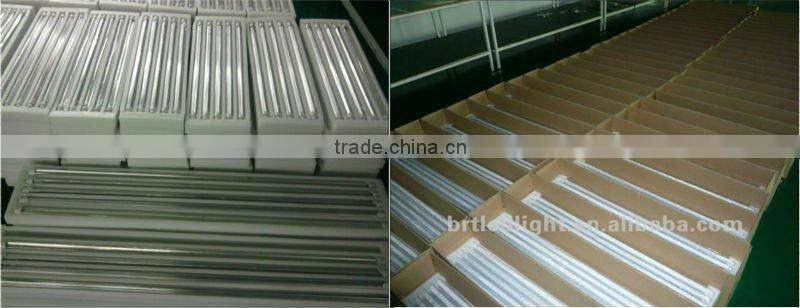

LED tube packing:

About us:We are professional led lighting manufacturer in shenzhen for more than 6 years,produce led tube,led strip,led downlight,etc.All our products passed CE&RoHS,LED tube passed TUV,LED strip passed UL certification.

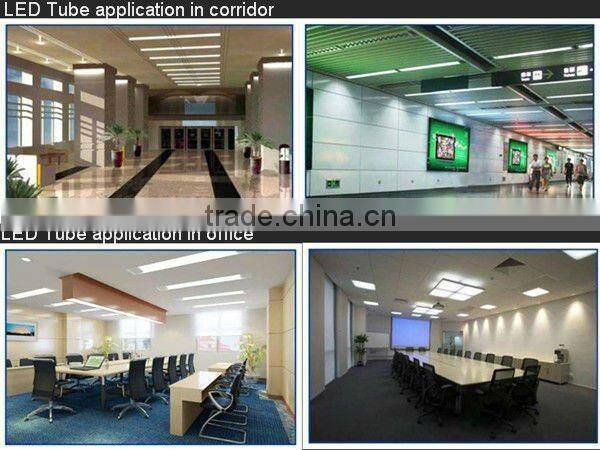

Application:

T8 LED Tube can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, cabinet, cupboard, kitchen, refrigeration units etc. Replace conventional fluorescent tube or sodium TUBE.
