480TVL 0.008Lux Mini Cctv Camera Security CAMERA

480TVL 0.008Lux Mini Cctv Camera Security CAMERA thumbnail-1
480TVL 0.008Lux Mini Cctv Camera Security CAMERA thumbnail-2
480TVL 0.008Lux Mini Cctv Camera Security CAMERA thumbnail-3
480TVL 0.008Lux Mini Cctv Camera Security CAMERA thumbnail-4
480TVL 0.008Lux Mini Cctv Camera Security CAMERA photo-1
480TVL 0.008Lux Mini Cctv Camera Security CAMERA photo-2
480TVL 0.008Lux Mini Cctv Camera Security CAMERA photo-3
480TVL 0.008Lux Mini Cctv Camera Security CAMERA photo-4
US$ 30.67 - 32 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Geree
Model Number:
C016TV
Contact Supplier Request Quote Chat Now
Shenzhen Geree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Geree
Model Number C016TV
Type Digital Camera
Style Other
Sensor CMOS
480TVL Mini CCTV Camera 0.008Lux, 90 degree

480TVL 0.008Lux mini cctv camera security CAMERA480TVL 0.008Lux mini cctv camera security CAMERA480TVL 0.008Lux mini cctv camera security CAMERA480TVL 0.008Lux mini cctv camera security CAMERA480TVL 0.008Lux mini cctv camera security CAMERA

Specification



PICK UP ELEMENT
Single chip 1/3 CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC:656(H)×492(V)
PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS
Digital Signal Processing System
SENSOR DIMENSION
4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION
Approximately 480TV Lines
SCANNING SYSTEM
2:1 Interlace
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F1.2 / 90 °
S/N RATIO
48dB
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO  OUT
1.0V p-p/75ohm
AUDIO  OUT
1.0V p-p/1Kohm
WORK CURRENT
70mA
POWER REQUIREMENT
DC 3.3V-6V
OPERATING TEMPERATURE
- 10° C ~ +50°C ,less than 90% RH

It’s a  high definition thin-sized CCTV camera with excellent night vision.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Small size make it easy to install and conceal.Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.             .

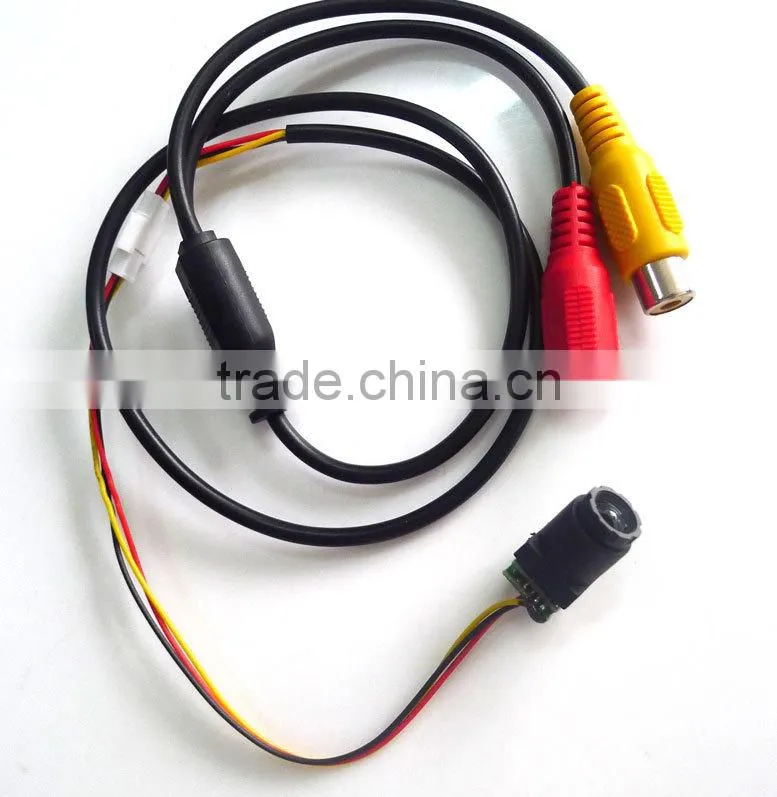

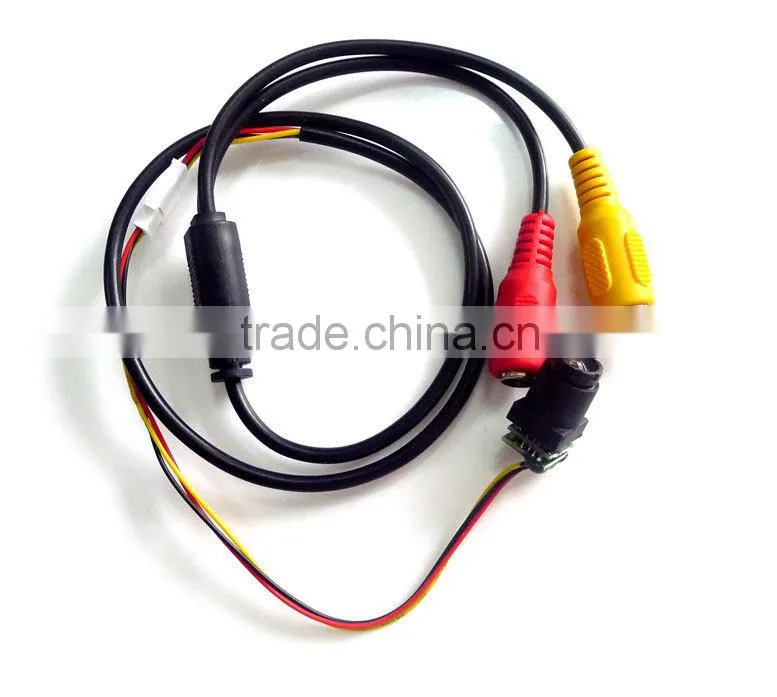

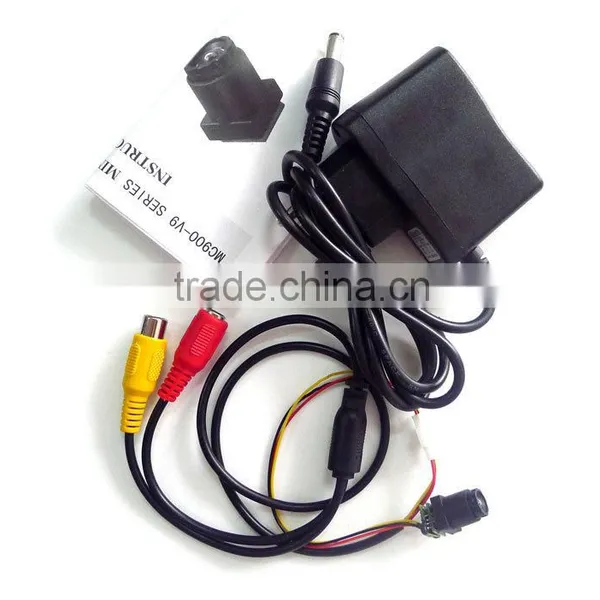

Ready AV/BNC cable and power supply cable. Just plug & play!

Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR
