7" TFT LCD Rear View Monitor +12V/24V Car Truck Bus Excavator Rear View Wireless Night Vision Reversing Camera
US$ 36 - 41
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Type:
Parking Sensor System
Voltage:
DC 12V
Power:
-
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V/24Vnight Vision Reverse Car Camera,vehicle Reversing Camera Back Up Camera for BusUS$ 9.5 - 12.5MOQ: 5 Pieces -
Car Reverse Backup Radar With 4 Parking Sensors+4.3" Car Mirror Monitor +Waterproof Car CameraUS$ 23 - 33MOQ: 5 Pieces
-
7" Inch Wireless Monitor +2.4G Wireless 120 Degree Night Vision Infrared Bus/car Rear CameraUS$ 49.9 - 61MOQ: 5 Pieces
-
170 Degree Driver Record hd Car DVR Dash Camera 3.0" LCD Camera Support G-Sensor Motion Detection Loop RecordingUS$ 59.9 - 73MOQ: 5 Pieces
-
NTSC/PAL 4 CH Real-Time Video Quad Processor for CCTV Camera System With Remote ControlUS$ 20 - 24.5MOQ: 10 Pieces
Type
Parking Sensor System
Voltage
DC 12V
Power
-
Car Make
ALL
Place of Origin
Guangdong, China
Brand Name
GEREE
Model Number
C039DC
Warranty
1 Years
Features:

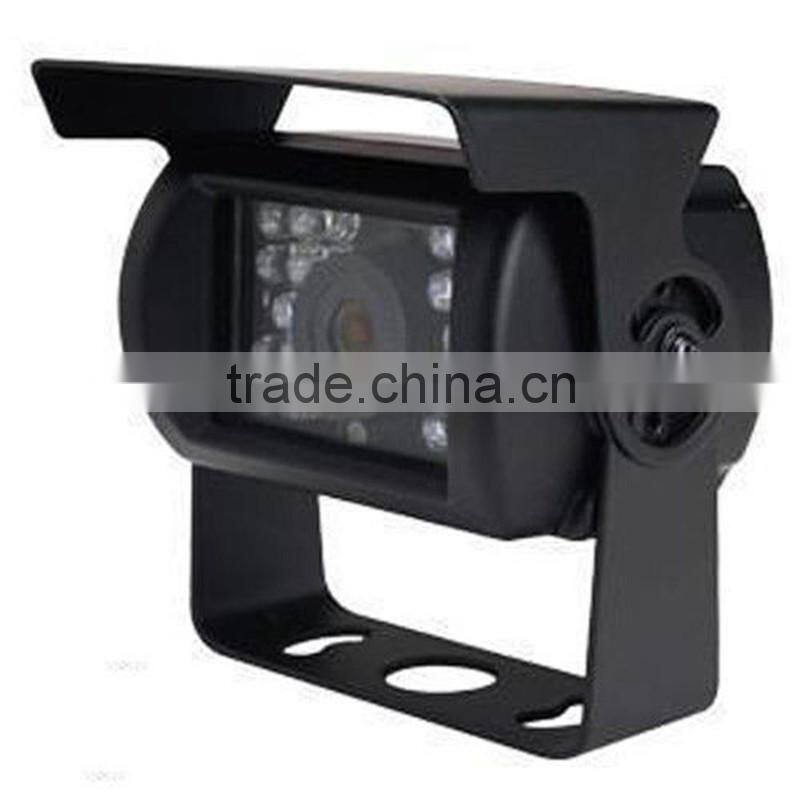

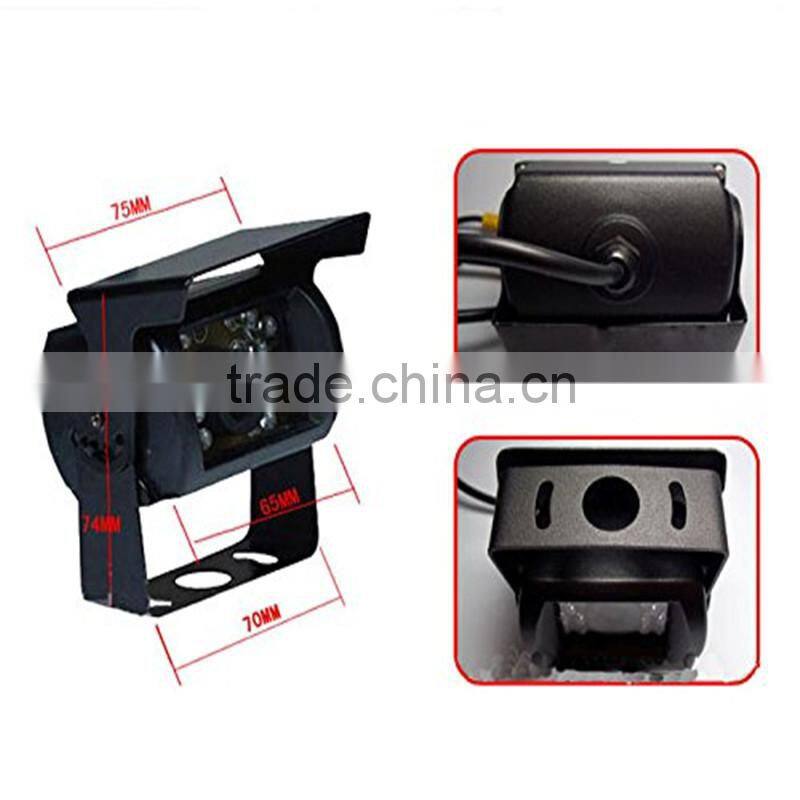

- Color : CMOS Camera
- Pick-up Device: 1/3" CMOS
- TV System : PAL (CCIR), NTSC (EIA)
- Scanning System: PAL : 625 Lines; NTSC: 525 Lines, 60 Field
- Lens: 3.6mm
- Number of Pixels: 500 (H) * 582 (V), 510 (H) * 492 (V)
- Horizontal Resolution: 420 TV Lines
- Scan Frequency: 50 Hz, 60Hz
- Electronic Shutter: 1/50 - 1/100 (sec) 1/60 - 1/100,100 (sec)
- S/N Ratio: >=48dB (AGC OFF)
- Minimun Illumination: 0.8 Lux / F1.2
- BLC: Open
- White Balance: Auto
- Gain Control (AGC): Auto
- Video Output: 1.0 Vp - p.75 Ω, BNC Connector
- Synchronous System: Internal Synchronization
- Operation Temperature: -20 - +80 degree
- Power Supply: DC 12-24V
- Focal Distance: 30mm to Infinite

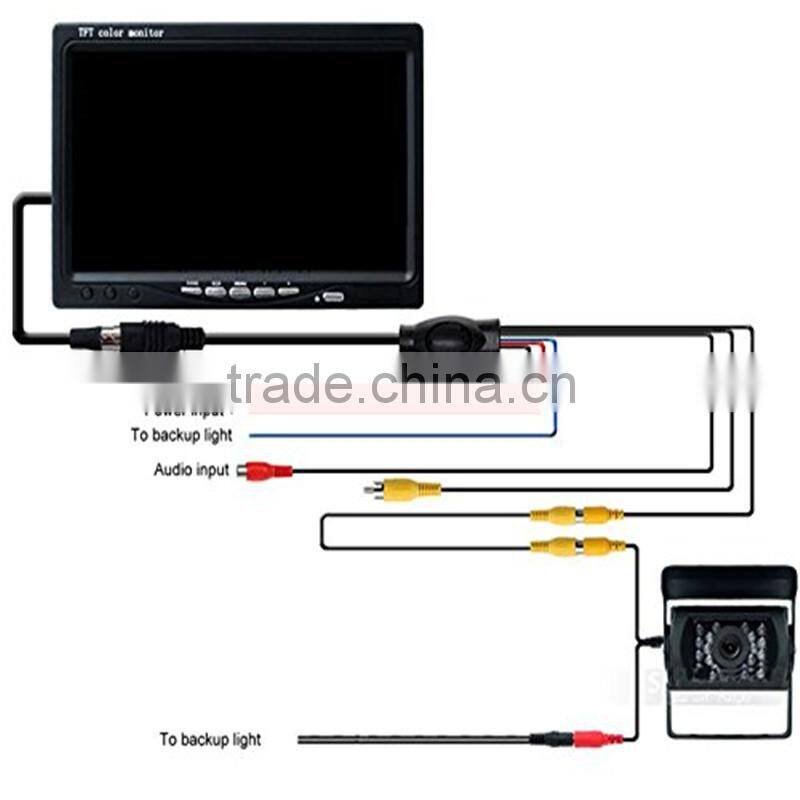

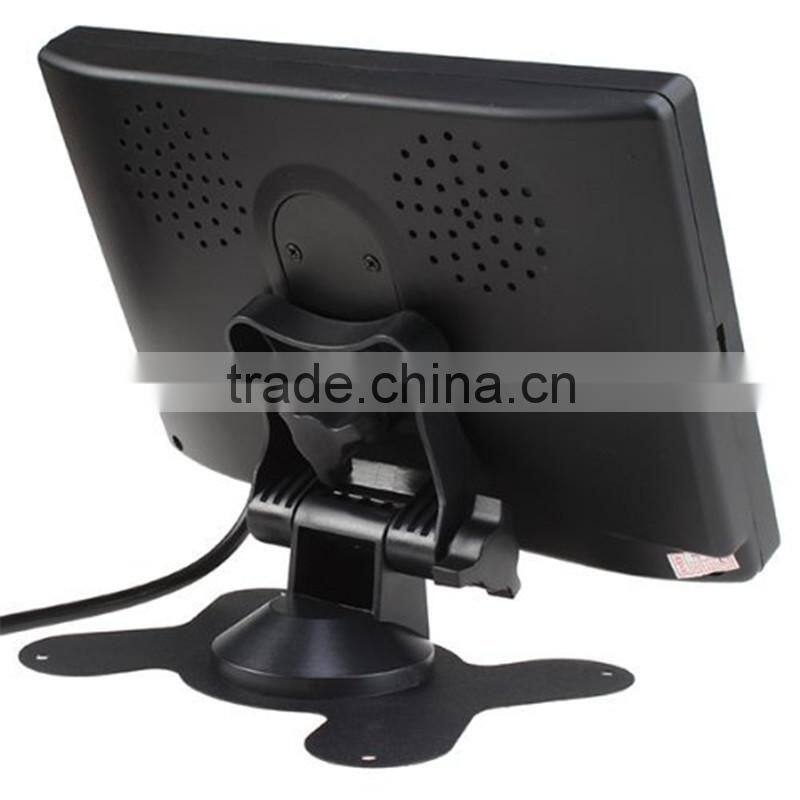

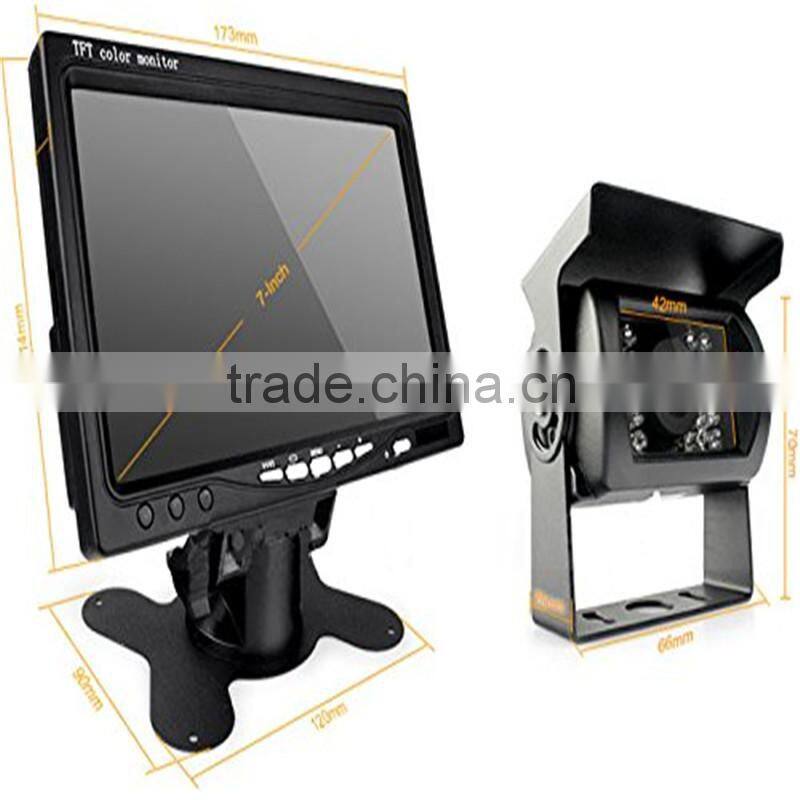

7'' CAR TFT LCD Monitor
- Display Size: 7 Inch
- Resolution: 480 (W) * RGB * 234 (H)
- System: PAL & NTSC
- Power Supply: DC 12-24V
- Consumption: 6W

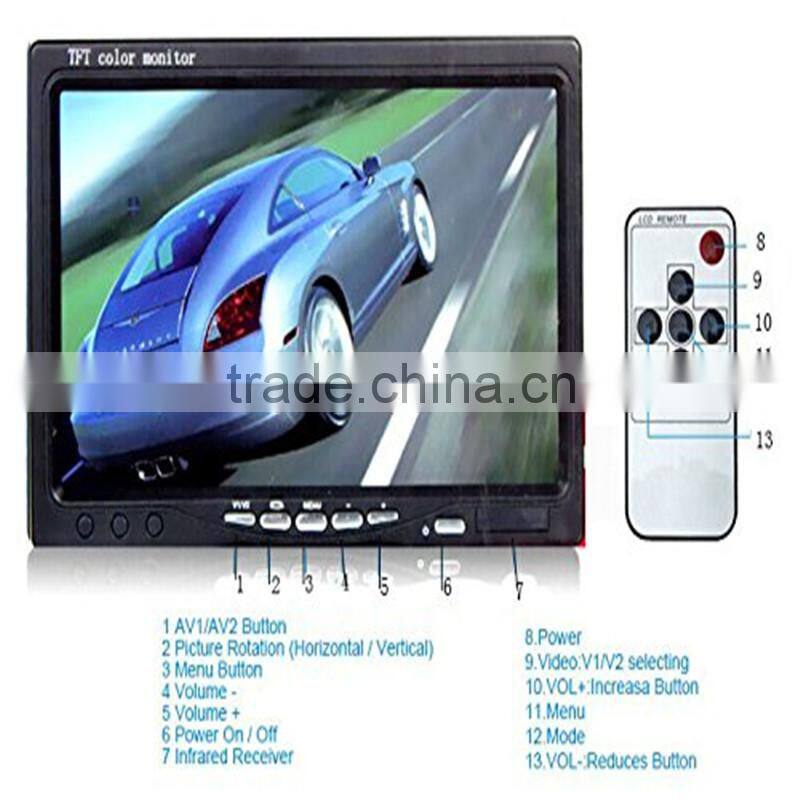

- Video: 2 - Channel Video Input, V1 / V2 Switch
- Audio: 1 channel
- Net Weight: Around 740g

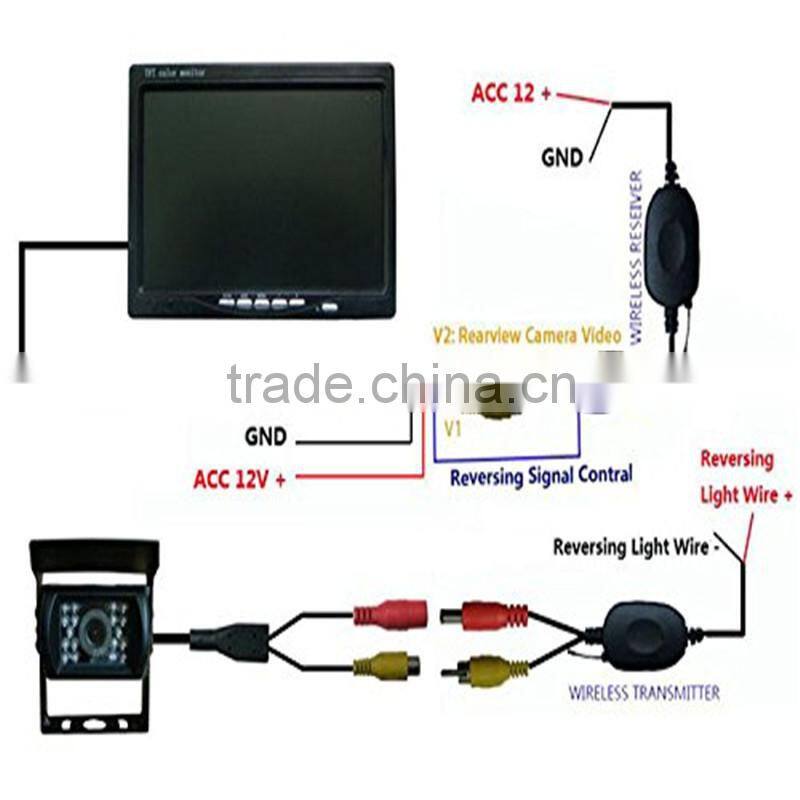

wireless module
- Power Supply DC12V-24V
- Consumption Current 200mA
- Tx Channel 1 channels
- T/R Frequency 2.2G~2.3G~2.4G
- Output Power 200mW
- Unobstructed Effective Range 0 ~ 150 m
- Operating temperature -40°c ~ +80°c
- Receiving sensitivity:-90dbm
- Video input PAL/NTSC
- Transmitting/receiving frequency points 2370MHZ

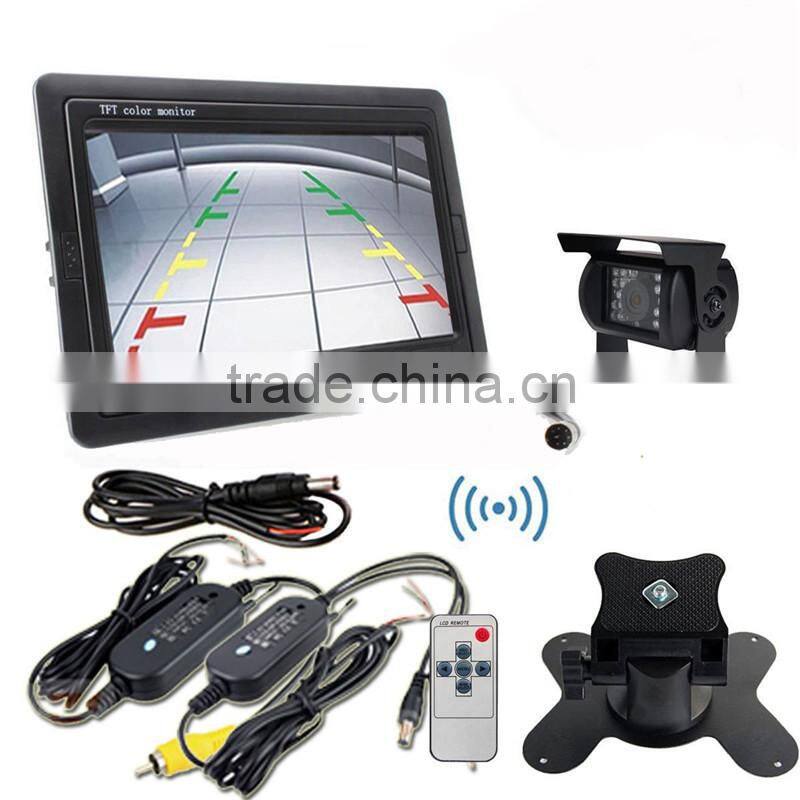

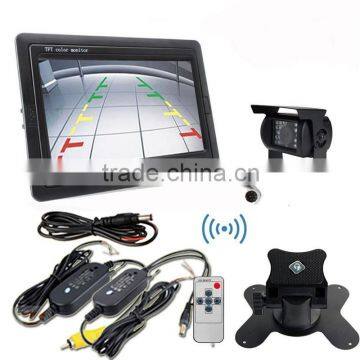

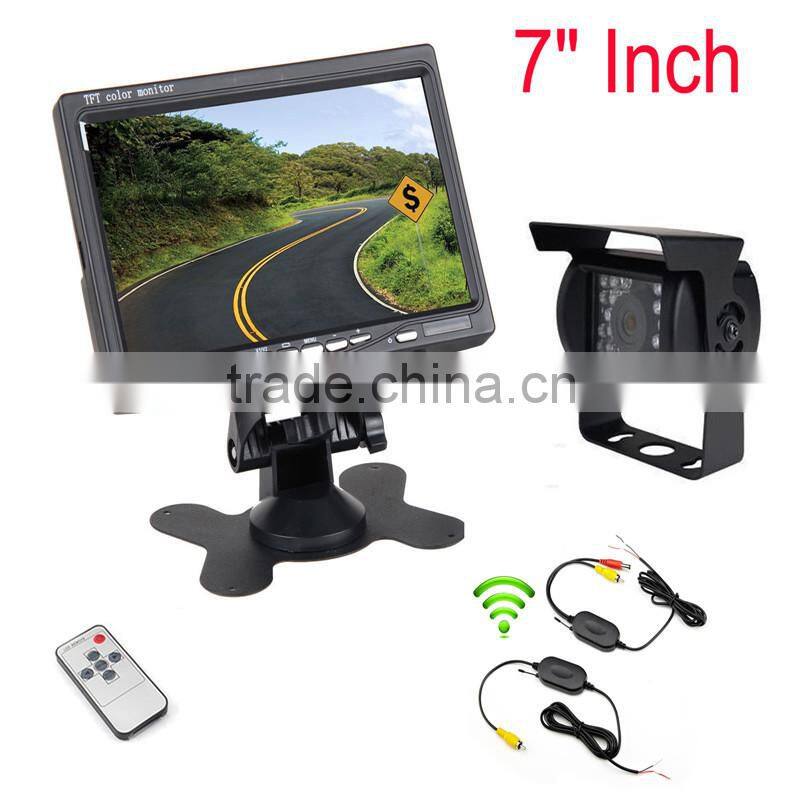

Package Include:
1 x 7'' TFT LCD Monitor
1 x Rearview Camera
1 x Mounting Plate
1 x Remote Controller (batteries are not included)
1 x Signal Rransmitter
1 x Signal Receiver
1 x Install Instruction
