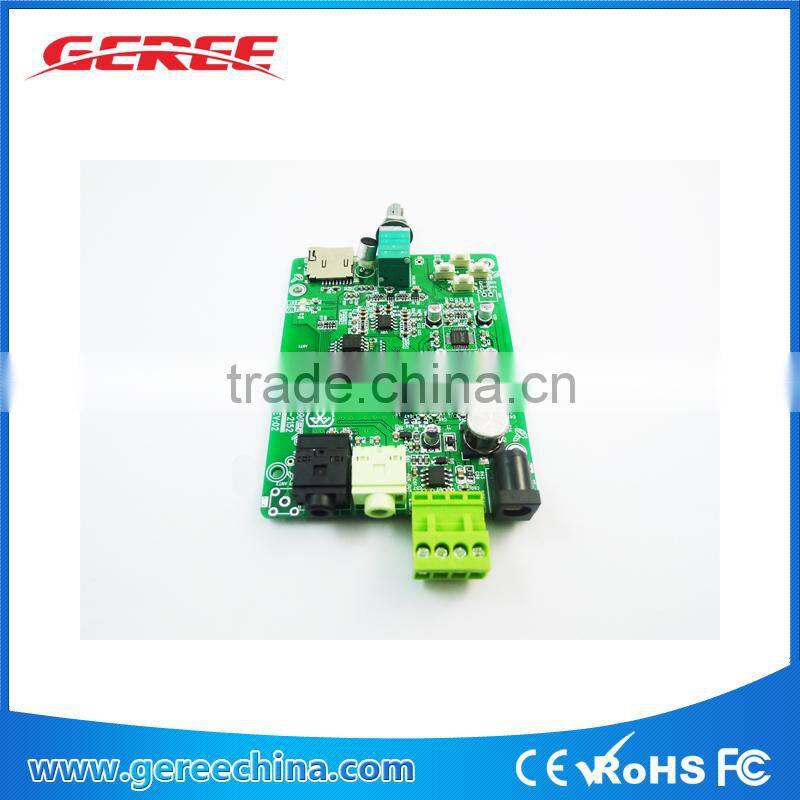

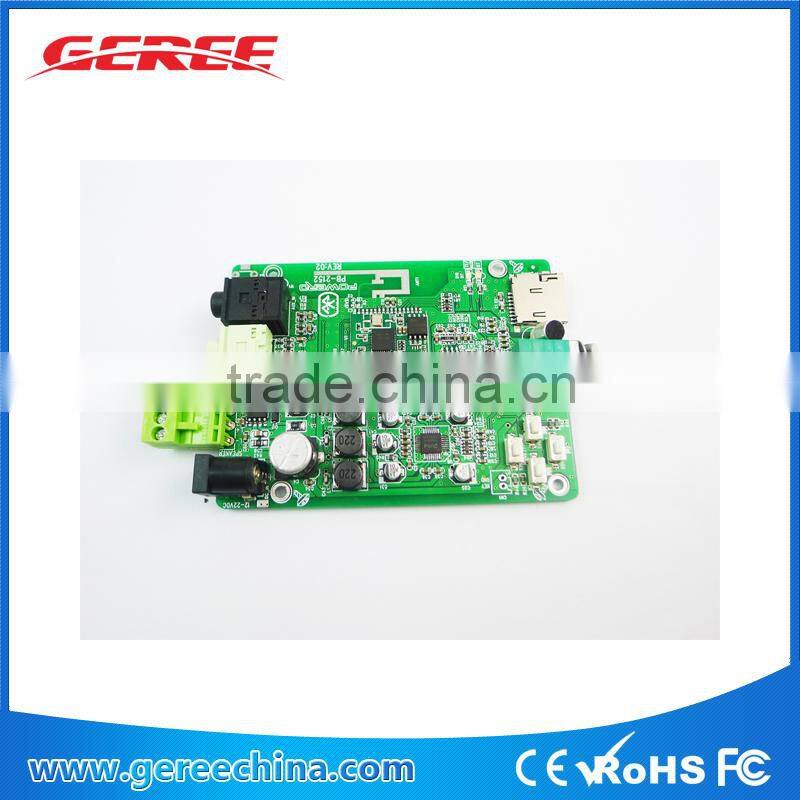

Bluetooth Audio Receiver Board Wireless HIFI 15Wx2 Stereo Amplifier Module AUX
Features:
This Bluetooth digital amplifier board, use Broadcom Bluetooth Core BEKEN high quality music and compatibility Bluetooth chip, built-in enhanced signal transmission circuit, Bluetooth receiver from the stable continuous sound, built-AEC echo cancellation and noise cancellation ANC circuit, speakerphone ultra-quiet no echo and noise. amplifier IC to make efficient use of pure class D M6008N chip. With ultra-wide bandwidth excellent EMI performance Low-E, the maximum power output 15Wx2, clear and pure treble powerful bass, beautiful appearance, stable, sound quality is excellent and affordable.
Amplifier chip features:
With anti-breaking sound control function, can detect and suppress the input music, voice signal amplitude is too large output signal caused by broken sound and minimizes distortion and noise pulse output signal. In addition, the chip built-in shutdown function enables standby current is minimized, but also integrates the mute function, fade effect, the speaker output over-current protection, over-temperature protection inside the chip and other features.
Using DC power supply interface, Bluetooth stereo dual speaker outputs, paired with a Bluetooth phone or computer, can wirelessly listen to music, but also hands-free phone calls, back-linking function. Support TF card to play, there AUX IN / OUT audio input / output, Max features is switching function / voice prompts. (3.5mm stereo headphone plug audio signal input / output audio amplifiers do have a role).
Performance Parameters:
Name : Bluetooth amplifier board
DC power supply voltage: 8V-22V recommended voltage: 19-20V
Current: more than 3A
Maximum output power: 15Wx2 [2ch / 2 channel 8 Europe horn]
Output impedance: 8 ohms
Board Size (width / length / thickness): 66x90x1.6mm
DC jack: 5.5*2.1mm
Bluetooth Specifications: Bluetooth V2.1 + EDR
Transmit power: CLASS2 3db
Bluetooth protocol: HFP V1.5 A2DPV1.2 AVCRPV1.0
Transmission distance: 15M (open area)
Frequency range: 2.4GHz_2.48GHz
SNR: ≥80dB
Frequency response: 120HZ-19KHZ
Note:
DC power supply voltage can not exceed 22V
Chip supply voltage can not be lower than 1.8V, if low 1.8V, undervoltage protection function automatically start to prevent the chip logic disorder due to burning amplifier tube. After starting the undervoltage protection mode, the supply voltage if the direct return 5V, the chip is still in the protection of the state, to prevent damage to repeatedly switch chip at low voltage.
Play model change:
1. When turned on, the Bluetooth priority;
2. Bluetooth playback, when the plug AUX IN or TF card, it will automatically switch to the AUX IN / TF card;
3. If the TF card and AUX IN are plugged in, then according to MODE / PHONE button for 2 seconds, you can switch functions required to play
Package Contents
100% Brand New
Bluetooth Audio Receiver Board Wireless HIFI 15Wx2 Stereo Amplifier Module x 1
