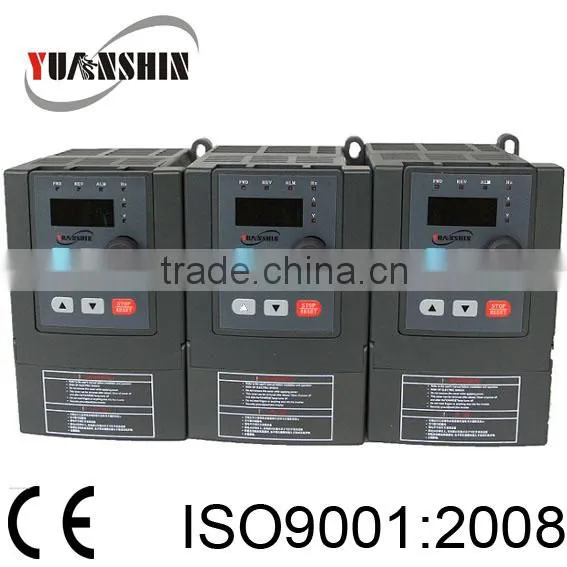

Mini Size Variable Speed Drive / Vsd for Lower Torque and Control ac Motor

Mini Size Variable Speed Drive / Vsd for Lower Torque and Control ac Motor thumbnail-1
Mini Size Variable Speed Drive / Vsd for Lower Torque and Control ac Motor photo-1
US$ 58 - 8,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Yuanshin
Model Number:
YX3000 series
Contact Supplier Request Quote Chat Now
Shenzhen Yuanxin Electric Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Yuanshin
Model Number YX3000 series
Output Power Other, 0.4kw-400kw
Output Type Triple
Input Voltage 380V
Output Voltage 0-380V
Type Other, AC-DC-AC type
Output Frequency 0-400Hz
Output Current 0-890A

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Yuanshin
  • Model Number: YX3000 series
  • Output Power: 0.4kw-400kw
  • Output Type: Triple
  • Size: depends
  • Weight: depends
  • Input Voltage: 380V
  • Output Voltage: 0-380V
  • Type: DC/AC Inverters
  • Output Frequency: 0-400Hz
  • Output Current: 0-890A
  • Certification: IS09001,CE

Packaging & Delivery

Packaging Details: The inverter under 37kw will be packed in the carton first and then be packed in wooden box for international transportation. The inverter above 45kw will be packed directly in wooden box which is ready for international transportation.
Delivery Detail: 5-10 days


yuanshin AC Drives  Frequency Inverters

(frequency inverter =frequency converter= ac drive =VFD =VSD)



YX3000 Series General Purpose Frequency Inverter is specially designed for variable frequency control and energy saving.



Instruction



YX3000 Series Sensor-less Vector Control Frequency Inverter is a function enhanced product with strong stability. It takes use of Fuji IGBT and the TI DSP chip set, completely optimizes vector control and V/F control. It has been widely deployed in various industrial environment, and special in situations requiring speed control precision pump torque response speed and low-frequency output.





Specification







Technical Features



  1. Two control modes: V/F control, and sensor-less vector control;
  2. Starting torque: 0.4Hz-20Hz;
  3. Internal brake unit has been deployed, and the braking resister can be connected outside for a quick stop;
  4. Five kinds of V/F control, which are constant torque V/F curve, One kind of customer defined V/F curve, 3 kinds of down torque curve (2.0/1.7/1.2 times the power).
  5. Through PLC or internal control terminal, multi-speed control and PID control could be realized. And users could combine a variety of operating modes while it’s necessary;
  6. Supporting multi-frequency deploy methods: digital setup, PID setup, analog quantity setup, and communication setup;
  7. Supports starting and stopping DC brake;
  8. YX3000 is Equipped with jump frequency control, which prevents mechanical resonance and makes the system more stable and reliable;
  9. YX3000 has build-in PI in order to establish close-loop control system easily;
  10. YX3000 is designed with the central frequency switch function, which let the end user to fix the central frequency while it is necessary;
  11. YX3000 has been equipped with RS485 communication interface, which support MODBUS protocol with ASCII and RTU forms;
  12. Working with water supply accessory to realize multiple-pump stable pressure water supply function.



Application



  1. Boiler drum, Induced draft fan, Mine exhaust fan;
  2. Energy-saving central air conditioning, Energy-saving air compressor
  3. Mechanical equipment, Conveyor
  4. Oil injection pump, Oil transfer pump;
  5. Circulating pump, water supply pump, constant pressure water supply;











Certification









Package





products power under 37KW are packed in the carton boxes;



products power above 45KW are packed in the wooden boxes.









Pictures of our factory and part of our products
