New Product Mini PC Barebone System Intel Core i3 4158u 2.0G Fanless Desktop Computer i3 Windows Ubuntu Dual NIC 2 Lan

Note: This link for FMP03B Fanless Mini PC with Core i3-4158U CPU, if you have other requirement pls select from below tablet or contact us online directly.
Case Material: Brushed Aluminum Alloy ; Size: 200 * 170 * 45MM; Shipping carton per unit:31.5*26*8 CM;  NW: 1.8kg; GW: 2.7kg

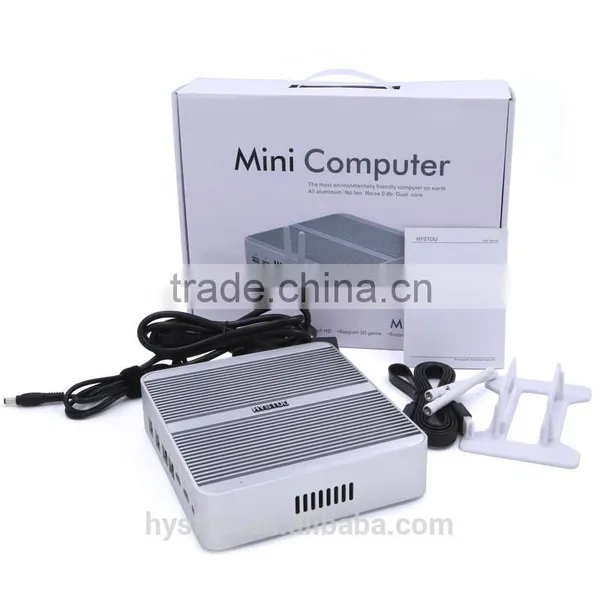

Package Content: 1* Mini PC HTPC; 1* power adapter; 2* WiFi Antennas; 1* desk base;
Warranty: 30 days free defective replacement and 3 years free repair.



Main advantages:

Small size: all Hystou mini pcs smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.

Durability: all those fanless mini pcs are highly intergrated, fanless design makes it runs silent and no need extra maintenance like normal fat comptuters. And most of them using aluminium alloy computer case, very durable.

Low power: all the Hystou mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.

Universal performance: Hystou mini pcs compatiable with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.


Key Features:

CPU: Intel ® Core ™ i3- 4158U Processor (3M Cache, 2.0GHz)

RAM: max expanded to 16GB DDR3L-1333/1600MHz SODIMM Notebook memory;

Storage: max expanded to 2 * mSATA3 SSD and 1 * 2.5 inch laptop HDD SATA3, no limitation on storage capacity;

I/O: Front panel ports: 1 * Power indicator and switch, 1 * MIC, 1 * SPK, 1 * SD Card, 4 * USB3.0 port, 1 * Optical Port; Backside ports: 1 * DC IN, 2 * HDMI port, 2 * Gigabit LAN port (RJ-45), 4 * USB2.0 ports, 2 WiFi antennas;

Internal ports: 2 * M-SATA3.0 port, support 6Gb/s, 1 * SATA3.0 port, support 6Gb/s, 2 * mini-PCIE port (WIFI);

Operating System: Windows 7, 8, 10 & Linux Compatible, suggest Kodi(XBMC) with Openelec preinstalled for less than 16GB SSD, up to 32GB SSD suggest Win7/8;

Language: Multi Language;

USB port: 4 * USB 3.0, 4 * USB 2.0;

Feature: Fanless;

Wireless: 300MB Wifi with 2 Antennas;

HD Out put: 2 * HDMI, support HDMI to DVI and HDMI to VGA;

LAN port: 2*Gigabit RJ45 port speed up to 1Gbps;

Case Material: Brushed Aluminum Alloy;


Advanced Technologies:

Intel® Turbo Boost Technology;

Intel® Hyper-Threading Technology;

Intel® Virtualization Technology (VT-x);

Intel® VT-x with Extended Page Tables (EPT);

64-bit computing;

Idle States;

Enhanced Intel SpeedStep® Technology;

Intel® HD Audio Technology;

Intel® Identity Protection Technology;

Intel® Rapid Storage Technology;

Intel® Smart Connect Technology.

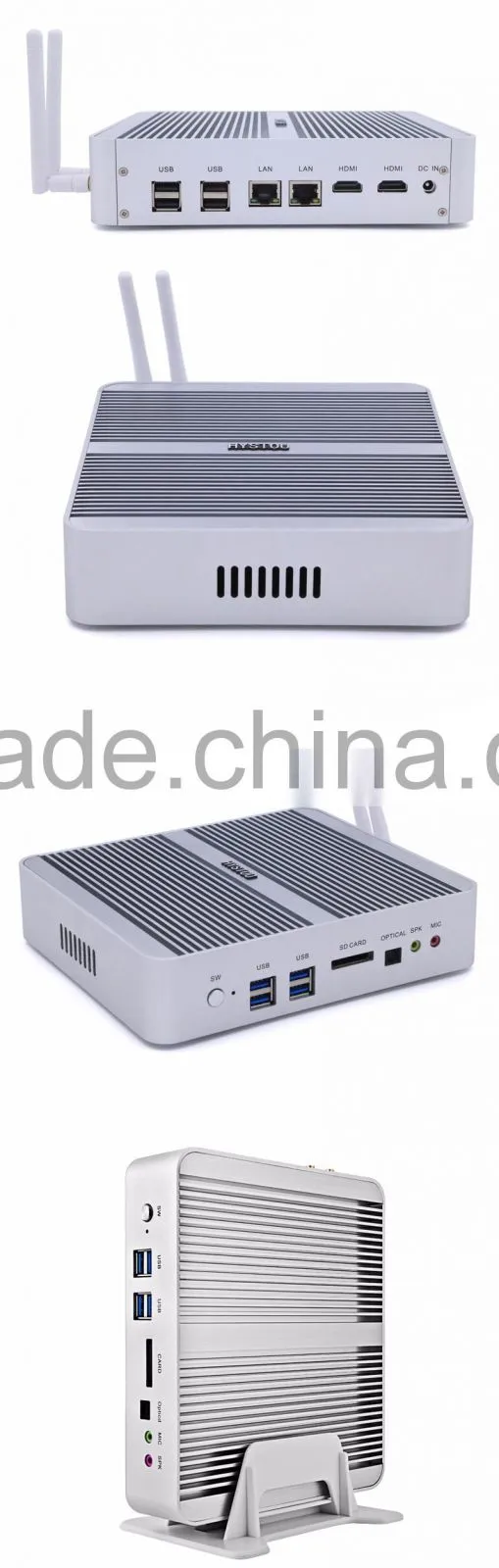

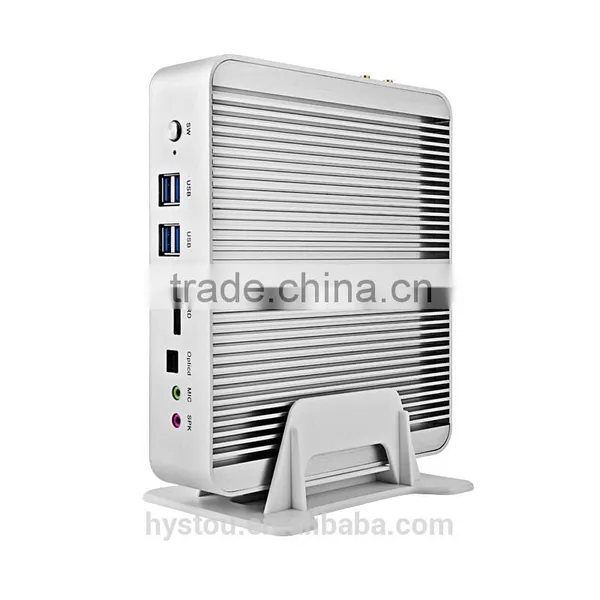

Product picture 360 degree Show:

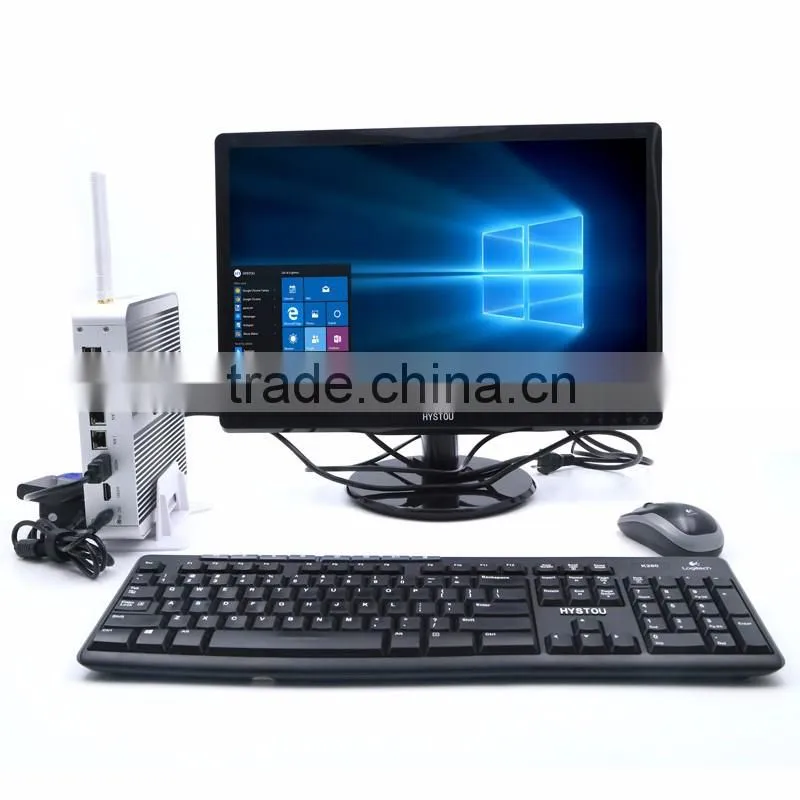

What can this mini computer do?
1. Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;

2. Design work: Photoshop, CorelDraw, Dreamweaver, iIIustrator, Flash, InDesign and all others

3. Game playing: support most online games and PC games, like War craft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

4. Entertainment: support ultra HD 4K resolution, support XBMC and others program that support Windows and Linuxs





Operating System Multiple Version For You:




Specifications of Intel Core i3-4158u Haswell Processor:

Processor
Clockspeed	2.0GHz
# of Cores	2
# of Threads	4
Chipset	Haswell-U
TDP	28W
Cache	3 MB
Memory
Max Memory Size	16 GB
Memory Types	DDR3L 1333/1600, LPDDR3 1333/1600
Memory Channels	2
Max Memory Bandwidth	25.6 GB/s
Graphics
Processor Graphics	Intel® Iris™ Graphics 5100
Graphics Base Frequency	200 MHz
Graphics Max Dynamic Frequency	1.1 GHz
I/O Specifications
Display Port	2 HDMI2.0, support HDMI to DVI and HDMI to VGA
USB port	4*USB 3.0, 4* USB 2.0
Lan Port	2* RJ 45 10/100/1000Mbps lan port
other slot / port	1* SD card slot, 1* Optical Port
Audio	Standard 3.5 Audio input and output
Power and Working Environment
Power Input	DC100-240V AC/50-60Hz
Power Output	DC 12V/3A~9A
Style	External power adapter mode
Consumption	15-30W
Noise	Fanless System no Noise
Temperature	Unknown to 100°C
Others
Package	Neutral color box size 31.5*26*8 CM
Computer Size	230*180*45MM
Cabinet material	Brushed Aluminum Alloy (Rugged surface)
Net Weight	1.8kg
Gross Weight	2.7kg



Mini PC FAQ

1. How to install Wifi if I have barebone computer only?

Please click and go to step by step picture guide after this answer, it is suitable for Hystou mini pc 1037u, i3-4010u, i5 4200U, i5 4258u, i5 5200u and so on, exactly please check your barebone computer.

/2014/08/15/how-to-install-ram-hdd-and-wifi-if-i-have-barebone-computer-only/

2. How to add RAM and Storage to barebone computer?

Hystou mini pc 1037U, Intel core i3-4010u, i5-4200U, i5 4258u, i5 5200u and i7 4500u support 2 storage together, all of them similar and can share the guide here: /2014/04/02/how-to-install-two-storage-on-hystou-c1037u-mini-computer/

And before purchase RAM for our mini computers, make sure you know clearly the RAM style the mini pc required, you can learn more here: /2014/09/22/ddr3-ddr3l-and-lpddr3/

3.How to disable external USB port if I don't want my office work to use extra USB on the mini computers?

Please click and go to step by step picture guide here: /2014/08/06/how-to-disable-external-usb-port-for-your-computers/

4. How to mount the mini pc tower if I want the mini pc mounted onto backside the monitor?

Please click and go to step by step picture guide here: /2014/07/17/how-to-mount-the-mini-pc-tower-to-back-of-monitor/

5. How much power consumption this mini computers cost?

All our mini computers using low power input 12V only, mostly power consumption around 20 watt when running, exactly you can see the real testing pictures from this link: http:///2014/07/02/testing-c1037u-mini-computers-power-consumption/

6. Will it be very hot since the mini computer CPU has no fan?

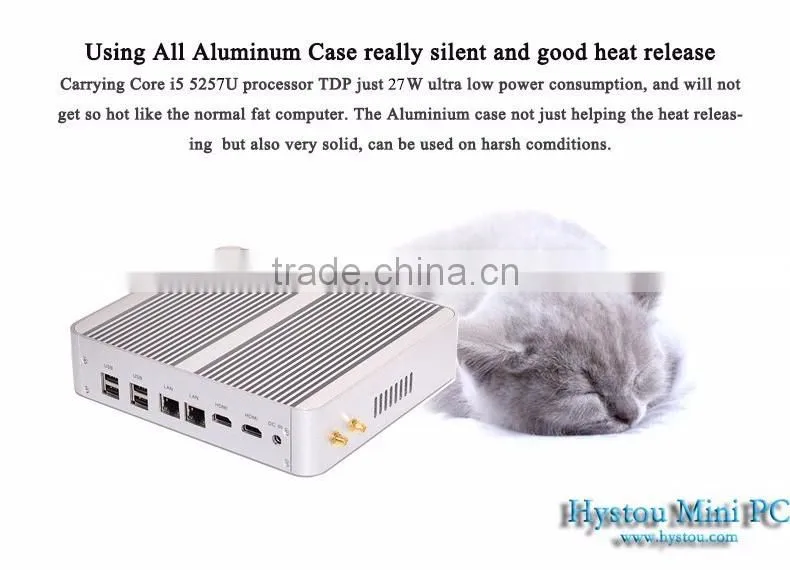

Hystou fanless mini pc using Aluminium alloy case to help CPU heat releasing, so even it is fanless, it won't be very hot, normally around 36 centigrade degree around the mini pc, you can check exactly testing pictures via this link: /2014/07/02/users-testing-of-temperature-around-hystou-mini-computer/

7. What operating system can I use on the Mini PC?

Hystou mini pc support all kind main operating systems, most buyers using Windows and Linux.

8. Is the mini pc enough to run XBMC in living room and connect to big size TV?

Yes, our mini pc also HTPC, widely used in living room connected to TV via HDMI cable, HDMI up to 1920*1080 HD resolution and Ultra HD 4K resolution, depends on different models.

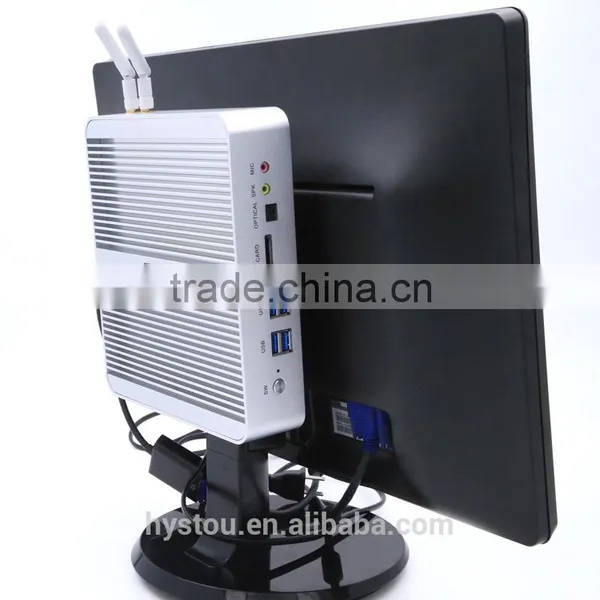

9. Can the mini pc be mounted to backside of monitor and saving space?

Yes, here are pictures shows how to mount Hystou mini pc to backside of monitor: /2014/07/17/how-to-mount-the-mini-pc-tower-to-back-of-monitor/

10. I lost the drivers, what to do if I want to reinstall the system?

You can find drivers from our download center, or use software tools to get driver directly, here is some free software tools information: /2014/09/12/top-6-free-software-tools-to-take-care-of-your-drivers/

11. Why my Mini PC (XBMC) has no Sound when connect to TV by HDMI cable?

When first time to connect the mini pc (XBMC with OpenELEC pre-installed) to TV by HDMI, you should select the correct HDMI device if it didn’t have any sound. Here is picture guide how to set it: /2014/09/05/why-my-mini-pcxbmc-has-no-sound-when-connect-to-tv-by-hdmi-cable/

12. After set the Mini PC to "Stand by" mode, I cannot wake it up directly by touch keyboard or mouse, no matter long press the power switch or short press the power switch, the mini pc will restart directly instead of wake up, how to solve it?

To wake up the computer directly via mouse or keyboard, you should not close your hard disk when the computer goes to "stand by" mode, go to power options and set the hard disk, never turn off will be ok, here is detailed guide with pictures: /2014/10/07/how-to-wake-up-mini-computer-via-mouse-directly/

13. When first time use the mini pc, there is totally no signal from VGA or HDMI, even I try different monitors still same, is the mini pc broken?

Every mini pc was tested OK before shipment, when facing this problem, please firstly check if the indicator turns on or not, if the indicator turns on, problem mostly comes from memory, please make sure the memory you use is the same kind as per our mini pc requirement, and also make sure it plugged in correctly; if the indicator didn't turn on, please change another 12V power adapter, mostly it is the power adapter get problem. And sometimes the problem comes due to CMOS battery problem, the CMOS battery will remember some error information and make the computer no display, you can remove and try it again, details check this link: /2014/10/14/cmos-battery-cr2032/

14. Why my internet get not stable when I plug the USB flash or external USB DVD to the USB 2.0 Port on the mini pc, but internet stable when plug the same USB products to the USB 3.0 port in the same mini pc, what happen?

This problem most due to USB power supply different, USB 2.0 port can supply max 500ma but USB 3.0 can supply up to 900ma, so if your USB products require more than 500ma and less than 900ma, it will not stable on the USB 2.0 port but stable on the USB 3.0 port. And USB problem on the motherboard will hurt the LAN chip power supply, that's why the internet getting not stable if you plug USB products to USB 2.0. More difference between USB 2.0 and USB 3.0 please check this link: /2014/10/14/usb_2-0_vs_usb_3-0/

15. How to install Windows 7/ 8 / Linux or other operating system to the mini computer?

Our mini computer has no DVD ROM, if you have external USB DVD ROM, you can just connect the external USB DVD ROM to the mini computer, and install OS from the DVD ROM directly; if you don't have external DVD ROM, you can use USB booting, here is some information about how to make USB booting: /2014/11/10/free-iso-to-usb-burners/  /2014/11/10/how-to-make-a-usb-bootable/

16. Why there is no Wi-Fi connection in the OpenELEC system of the mini pc?

Please go to check step by step guide with pictures of how to set Wi-Fi in OpenELEC: /2014/10/12/wifi-set-up-for-openelec-xbmc-on-hystou-mini-pc/

17. Why My Hystou Mini PC with Windows 7 keeps asking me to log on as administrator and wanting my admin password every time I attempt to open Mozilla Firefox?

This issue not comes from Hystou mini pc hardware, tones of people having this problem. Here is a solution we collected from internet:

Firstly, Save installation file on your hard disk

Secondly, Right click on mouse

Thirdly, Execute (file) as administrator

18. Why my computer has no display when collect to DVI port on my monitor using HDMI to DVI adapter and DP to DVI adapter?

Pls use active DP to DVI cable, HDMI to DVI cable please check details here: /2015/03/27/hdmi-and-dp-display-problem/

19. The computer I get is already with disk C, D, but I want only one disk, how can I make the two into one disk?

Mostly if there no special requirement, for disk space up to 64GB our person will divided the disk into two disks C and D. C for Windows and D for your other use. If you want to combine the disks together to one only, please check picture guide here: /2015/06/18/how-to-manage-disk-partitions-in-windows-7/

20. What is HS code of Hystou mini pc?

8471494000

More information will be collected and update here any time.
