Thin Client Fanless Mini PC 2G RAM 512G SSD X86 Desktop Computer Intel Celeron J1800 thin client MIC, Full Screen HD Movies

Name: Thin Client Fanless Mini PC 2G RAM 512G SSD X86 Desktop Computer Intel Celeron J1800 thin client MIC, Full Screen HD Movies
Brand: HYSTOU
Availability: InStock

FOB Price

USD $367.5 - $367.5 / Piece

10 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Desktop
Screen Size	No Monitor	Processor Brand	Intel
Memory Capacity	Other, 512G SSD	Hard Drive Capacity	Other, 2G RAM
Graphics Card Type	Integrated Card	Display Type	Other, LED or LCD
Widescreen	Yes	Optical Drive Type	Other, External USB DVD
Processor Main Frequency	2.41GHz	Brand Name	HYSTOU
Model Number	FMP09-J1800	Place of Origin	Guangdong, China

Product Description

Thin Client Fanless Mini PC 2G RAM 512G SSD X86 Desktop Computer Intel Celeron J1800 thin client MIC, Full Screen HD Movies

Note:This is 2 lan port j1800, if you can't find the right configuration you want please contact us directly.

Here is link for FMP09-J1900(only support mSATA SSD);FMP10-J1800(support mSATA SSD and 2.5 inch SSD or HDD); FMP10-J1900(support mSATA SSD and 2.5 inch SSD or HDD)
Operating System: Windows 7, 8 & Linux Compatible, suggest Linux for less than 16GB SSD, up to 32GB SSD suggest Win7
2G RAM 8G SSD	2G RAM 64G SSD+500G HDD	4G RAM 128G SSD
2G RAM 16G SSD	2G RAM 64G SSD+1TB HDD	4G RAM 256G SSD
2G RAM 32G SSD	2G RAM 128G SSD+500G HDD	4G RAM 512G SSD
2G RAM 64G SSD	2G RAM 128G SSD+1TB HDD	4G RAM 32G SSD+500G HDD
2G RAM 128G SSD	4G RAM 8G SSD	4G RAM 64G SSD+500G HDD
2G RAM 256G SSD	4G RAM 16G SSD	4G RAM 64G SSD+1TB HDD
2G RAM 512G SSD	4G RAM 32G SSD	4G RAM 128G SSD+500G HDD
2G RAM 32G SSD+500G HDD	4G RAM 64G SSD	4G RAM 128G SSD+1TB HDD

Main advantages:

1. Small size: all Hystou mini pcs smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.

2. Durability: all those fanless mini pcs are highly intergrated, fanless design makes it runs silent and no need extra maintenance like normal fat comptuters. And most of them using aluminium alloy computer case, very durable.

3. Low power: all the Hystou mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.

4. Universal performance: Hystou mini pcs compatiable with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.

Key Features & Benefits:

CPU: Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)

RAM: 2G DDR3 RAM ;Support 2G/4G/8G DDR3L-1333 MHz SODIMM Notebook memory;

Storage: 512G SSD storage;

Graphics: Intel® HD Graphics

I/O: Mic;Speaker;2*USB 2.0 port; 2* USB 3.0 port; 2* RJ45 LAN Port; 1* HDMI; 1*VGA; 1* COM port; 1* DC12V In;

Operating System: Windows 7, 8 & Linux Compatible, suggest Linux for less than 16GB SSD, up to 32GB SSD suggest Win7

Language: Multi Language

USB port: 2* USB 3.0, 2* USB 2.0

Feature: Fanless

Wireless: 300MB Wifi with 2 Antennas

HD Out put: 1*HDMI port, support 1080P, 1* VGA out;

Power and Working Environment:

Input: DC100-240V AC/50-60Hz
Output: DC 12V~3A/5A
Operating Temperature: 0/70 Centigrade(32F~140F)
Storage Temperature: -20/+85 Centigrade
Relative Humidity: 0%~90% (non-condensing)
Energy-saving: Support Energy-saving technology, Speedstep
64 bit computing: Support 64 bit computing
Virtualization: Support Virtualization technology
Hyper-threading: Support Hyper-Threading
Product Dimension & Details
Consumption: 15W

Advanced Technologies:
Intel® Virtualization Technology (VT-x)
Intel® 64
Enhanced Intel SpeedStep® Technology

What can this mini computer do?

Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play, Kodi(XBMC) and others.

Memory
CPU		Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Clockspeed		2.41 GHz
# of Cores		2
# of Threads		4
Max Turbo Frequency		2.58 GHz
TDP		10W
Max Memory Size		8 GB
Memory Types		DDR3L 1333
Memory Channels		1
Graphics
Processor Graphics		Intel® HD Graphics
Graphics Base Frequency		688 MHz
Graphics Max Dynamic Frequency		854 MHz
I/O Specifications
Display Port		1* HDMI+ 1* VGA
USB port		2* USB 3.0, 2*USB2.0
Lan Port		2* RJ 45 10/100/1000Mbps, 802.11.b/g/n 300M wifi
Audio		Standard 3.5 Audio input and output
Power and Working Environment
Power Input		DC100-240V AC/50-60Hz
Power Output		DC 12V/3A
Style		External power adapter mode
Consumption		10W
Noise		Fanless System no Noise
Temperature		Unknown to 100°C
Humidity		10%-85%
Others
Computer Size		13412436mm
Cabinet material		Brushed Aluminum Alloy (Rugged surface)
Net Weight		0.7 kg
Gross Weight		1.5kg

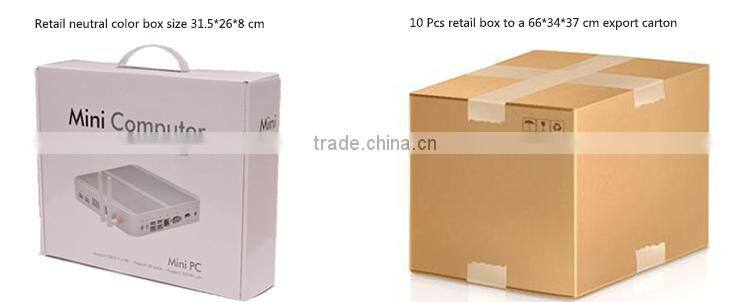

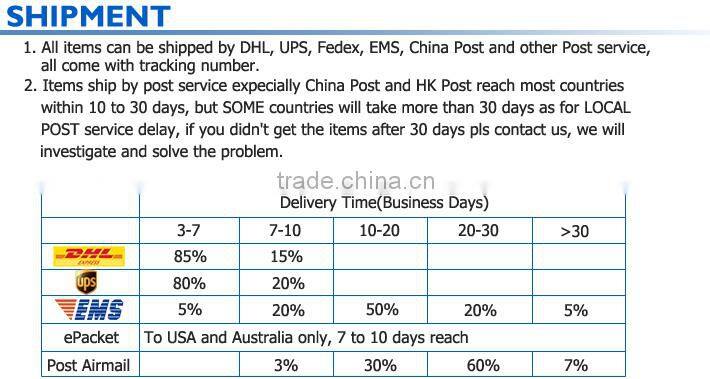

Packaging & Shipping

Our Services

Company Information

FAQ

Mini PC FAQ:

1. How to install Wifi if I have barebone computer only?

Pls click and go to step by step picture guide after this answer, it is suitable for hystou mini pc 1037u, i3-3217u, i5 3317U and so on, exactly pls check your barebone computer.
/2014/08/15/how-to-install-ram-hdd-and-wifi-if-i-have-barebone-computer-only/

2. How to add RAM and Storage to barebone computer?
Hystou mini pc 1037U, intel core i3-3217U, i5-3317U and i7 support 2 storage together, all of them similar and can share the guide here: /2014/04/02/how-to-install-two-storage-on-hystou-c1037u-mini-computer/
And before purchase RAM for our mini computers, make sure you know clearly the RAM style the mini pc required, you can learn more here: /2014/09/22/ddr3-ddr3l-and-lpddr3/

3.How to disable external USB port if I don't want my office work to use extra USB on the mini computers?
Pls click and go to step by step picture guide here: /2014/08/06/how-to-disable-external-usb-port-for-your-computers/

4. How to disable external USB port if I don't want my office work to use extra USB on the mini computers?

Pls click and go to step by step picture guide here: /2014/07/17/how-to-mount-the-mini-pc-tower-to-back-of-monitor/

5. How much power consumption this mini computers cost?

All our mini computers using low power input 12V only, mostly power consumption around 20 watt when running, exactly you can see the real testing pictures from this link: /2014/07/02/testing-c1037u-mini-computers-power-consumption/

6. Will it be very hot since the mini computer CPU has no fan?

Hystou fanless mini pc using aluminium alloy case to help CPU heat releasing, so even it is fanless, it won't be very hot, normally around 36 centigrade degree around the mini pc, you can check exactly testing pictures via this link: /2014/07/02/users-testing-of-temperature-around-hystou-mini-computer/

7. What OS can I use on the Mini PC?

Hystou mini pc support all kind main operating systems, most buyers using Windows and Linux.

8. Is the mini pc enough to run XBMC in living room and connect to big size TV?

Yes, our mini pc also HTPC, widely used in living room connected to TV via HDMI cable, HDMI up to 1920*1080 HD resolution and Ultra HD 4K resolution, depends on different models.

9. Can the mini pc be mounted to backside of monitor and saving space?
Yes, here is pictures shows how to mount hystou mini pc to backside of monitor: /2014/07/17/how-to-mount-the-mini-pc-tower-to-back-of-monitor/

10. I lost the drivers, what to do if I want to reinstall the system?
You can find drivers from our download center /download/, or use software tools to get driver directly, here is some free software tools information: /2014/09/12/top-6-free-software-tools-to-take-care-of-your-drivers/

11. Why my Mini PC (XBMC) has no Sound when connect to TV by HDMI cable?
When first time connect the mini pc (XBMC with Openelec pre-installed) to TV by HDMI, you should select the correct HDMI devince if it didn’t have any sound. Here is picture guide how to set it: /2014/09/05/why-my-mini-pcxbmc-has-no-sound-when-connect-to-tv-by-hdmi-cable/

12. After set the Mini PC to "Stand by" mode, I cannot wake it up directly by touch keyboard or mouse, no matter long press the power switch or short press the power switch, the mini pc will restart directly instead of wake up, how to solve it?
To wake up the computer directly via mouse or keyboard, you should not close your hard disk when the computer goes to "stand by" mode, go to power options and set the hard disk never turn off will be ok, here is detailed guide with pictures: /2014/10/07/how-to-wake-up-mini-computer-via-mouse-directly/

13. When first time use the mini pc, there is totally no signal from VGA or HDMI, even I try different monitors still same, is the mini pc broken?
Every mini pc was tested OK before shipment, when facing this problem, pls firstly check if the indicator turns on or not, if the indicator turns on, problem mostly comes from memory, pls make sure the memory you use is the same kind as per our mini pc requirement, and also make sure it plugged in correctly; if the indicator didn't turn on, pls change another 12V power adapter, mostly it is the power adapter get problem. And sometimes the problem comes due to CMOS battery problem, the CMOS battery remember some error information and make the computer no display, you can remove and try it again, details check this link: /2014/10/14/cmos-battery-cr2032/

14. Why my internet get not stable when I plug the USB flash or external USB DVD to the USB 2.0 Port on the mini pc, but internet stable when plug the same usb products to the USB 3.0 port in the same mini pc, what happen?
This problem most due to USB power supply different, USB 2.0 port can supply max 500ma but usb 3.0 can supply up to 900ma, so if your usb products require more than 500ma and less than 900ma, it will not stable on the USB 2.0 port but stable on the USB 3.0 port. And USB problem on the motherboard will hurt the Lan chip power supply, that's why the internet get not stable if you plug usb products to USB 2.0. More difference between USB 2.0 and USB 3.0 pls check this link: /2014/10/14/usb_2-0_vs_usb_3-0/

15. How to install Windows 7/ 8 / Linux or other operating system to the mini computer?
Our mini computer has no DVD ROM, if you have external USB DVD ROM, you can just connect the external USB DVD ROM to the mini computer, and install OS from the DVD ROM directly; if you don't have external DVD ROM, you can use USB booting, here is some information about how to make USB booting: /2014/11/10/free-iso-to-usb-burners/ /2014/11/10/how-to-make-a-usb-bootable/

16. Why there is no wifi connection in the OpenELEC system of the mini pc?
Please go to check step by step guide with pictures of how to set wifi in OpenELEC: /2014/10/12/wifi-set-up-for-openelec-xbmc-on-hystou-mini-pc/

17. Why My Hystou Mini PC with Windows 7 keeps asking me to log on as administrator and wanting my admin passwor everytime I attempt to open Mozilla Firefox?

This issue not comes from Hystou mini pc hardware, tonnes of people having this problem. Here is a solution we collected from internet:

Firstly, Save installation file on your harddisk

Secondly, Right click on mouse

Thirdly, Execute (file) as administrator

18. Why my computer has no display when collect to DVI port on my monitor using HDMI to DVI adapter and DP to DVI adapter?
Pls use active DP to DVI cable, HDMI to DVI cable pls check details here: /2015/03/27/hdmi-and-dp-display-problem/

More information will be collected and update here any time.
