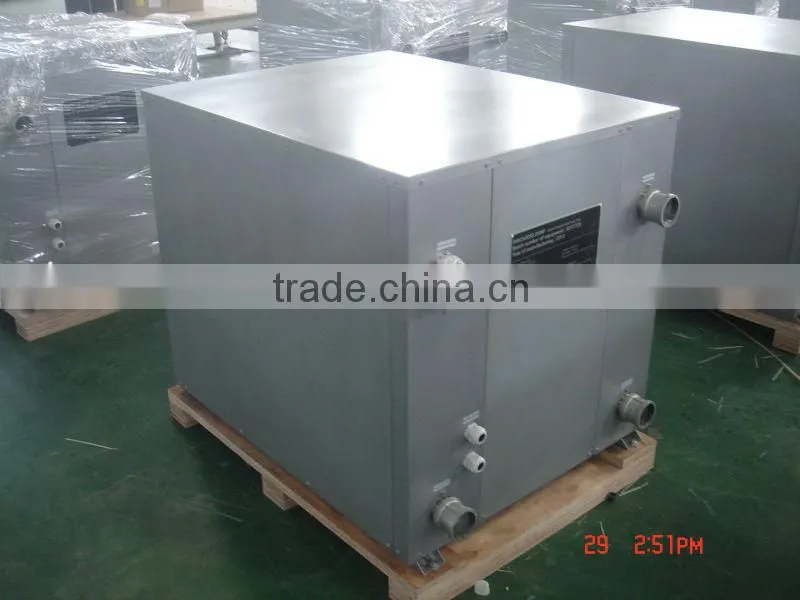

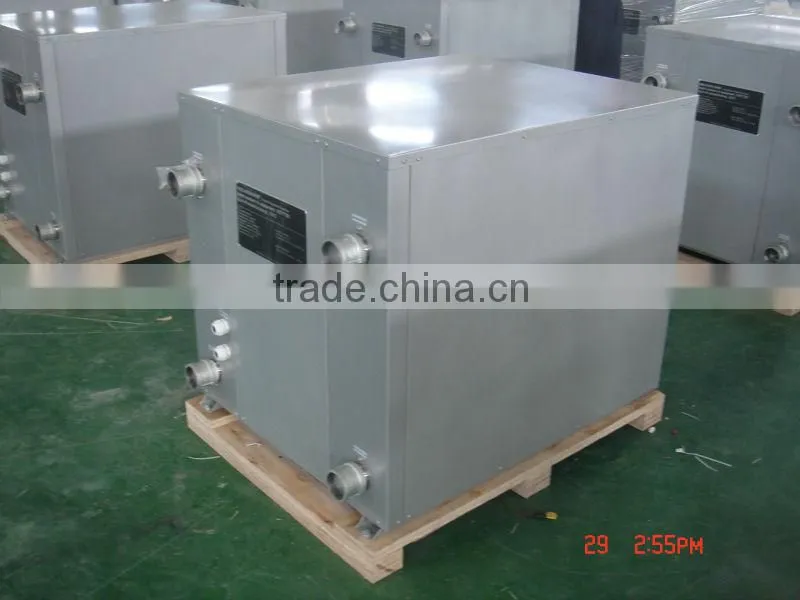

Ground Source Heat Pump Unit

Ground Source Heat Pump Unit thumbnail-1
Ground Source Heat Pump Unit photo-1
US$ 362 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, heat pump
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Huizhou Hicool Climate Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, heat pump
Place of Origin Guangdong, China
Brand Name HICOOL
Model Number H-WP
Operating Voltage 230 VAC
Mounting Floor Standing
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Water Source Heat Pump Unit are new models developed by Hicool, characterized in high-efficiency and non-pollution.

Ground Source Heat Pump Unit
The Ground Source Heat Pump is especially suitable for the building which has plenty of surplus heat, or the indoor area needs cooling and outdoor area needs heating. It is also suitable for the area where supplies adequate heat sources, like solar, river, lake and well water and terrestrial heat. It is also good for renovation of air conditioning for the old building.

Feature
-High Efficiency and Energy Saving:  The air conditioner unit can automatically adjust the output energy based on the actual load in the room, leading to saving of energy and reduction of operation costs.
-Operating Stability: The temperature of water maintains relatively steady during all four seasons in a year, making operation of the unit to become much more reliable and stable, basically not affected by the surrounding environment and the natural climate.
-Advanced Technology:  The unit provides not only air conditioning and heating, but also hot water for everyday life, making it really useful for multiple purposes.
-Split Operation:  Control is made much easier and simpler by using the combination of wire control and remote control.

Application range:
It mainly applies to hotels, clubs, commercial building, stations, which has good water supply and maybe low ambient temperature.
                                        Ground Source Heat Pump - Commercial/Industrial Series

Item                                          Model H-WCh150/A3 H-WCh250/A3 H-WCh300/A3 H-WCh450/A3 H-WCh500/A3 H-WCh600/A3 H-WCh1200/A3 H-WCh1400/A3 H-WCh3000/A3 H-WCh3700/A3
Cooling capacity Kw 14.5 24.5 29 44 49 59 118 138 305 370
Heating capacity Kw 17 28.5 34 53 59 69 138 158 355 438
Rate Input Power Cooling Kw 3.0 5.0 5.9 8.9 10 12.0 24.1 28.4 62.0 76.0
Heating Kw 4.0 6.8 8.0 12.4 13.9 16.2 32.5 36.8 83.0 103.0
EER Cooling w/w 4.83 4.90 4.92 4.94 4.90 4.92 4.90 4.86 4.92 4.87
COP Heating w/w 4.25 4.19 4.25 4.27 4.24 4.26 4.25 4.29 4.28 4.25
Rate Input current Cooling A 5.9 10.0 11.8 18.3 20.4 24.0 49.4 60.2 120.0 156.0
Heating A 8.0 13.6 16.0 24.8 27.8 32.4 65.1 73.7 162.0 206.0
Refrigeranted water flow m3/h 2.6 4.3 5.3 7.6 8.6 10.4 20.5 23.2 52 63.5
Cooling water flow m3/h 3.3 5.4 6.6 9.2 10.4 13.0 25.8 29.2 65.0 81.0
Power supply 380V/3~/50Hz
Compressor type Scroll
Compressor quantity 1 2 2 2 2 2 4 4 4 6
Refrigerant R407c
Refrigerant charge g 2100 1750*2 2100*2 2500*2 3200*2 3500*2 3500*4 4200*4 7000*4 5400*6
Noise dB(A) 58 58 58 58 58 58 67 67 67 69
Refrigerant water pipe  inch 1″ 1-1/4″ 2″ 2″ 2″ 2'' 2'' 4'' 4''
Cooling water pipe inch 1″ 1-1/4″ 2″ 2″ 2″ 2'' 2'' 4'' 4''
Condenser water pressure drop kPa 44 45 48 50 53 55 63 63 63 63
Evaporator water pressure drop kPa 35 35 37 40 42 45 54 54 54 54
Net dimension(LxWxH) mm 600×700×720 600×800×720 600×800×720 800×900×950 800×1000×1000 800×1040×850 1600*1000*1000 1600*1200*1000 2800*1600*1600 3400*1600*1600
Net weight kg 100 135 165 220 285 305 585 680 1500 1980
Packing dimension(LxWxH)     mm 680×780×900 680×880×900 680×880×900 880×980×1030 880×1080×1180 880×1120×1025 1760*1080*1180 1760*1080*1180 2960*1680*1780 3560*1680*1780
Gross weight kg 135 155 190 245 310 330 620 780 1590 2080
Loading Quantity(pcs) 20' 48 42 42 24 12 12 6 6 1 1
40' 98 88 88 52 26 26 13 13 4 3
40'HQ 98 88 88 52 52 52 26 26 4 3
Note:
1)Nominal cooling conditions:Refrigeranted input water temperature is12°C,Refrigeranted output water temperature is 7°C,cooling input water temperature is 20°C,cooling output water temperature is 25°C,
2)Nominal heating conditions:Refrigeranted input water temperature is 40°C,Refrigeranted output water temperature is 45°C,cooling input water temperature is 20°C,cooling output water temperature is 15°C,



 Ground Source Heat Pump UnitGround Source Heat Pump UnitGround Source Heat Pump UnitGround Source Heat Pump Unit
