1.Main parts German Rexroth Wika
2.Max tension 2X70kN
3.Engine Cummins
4.Twin-bundle conductor

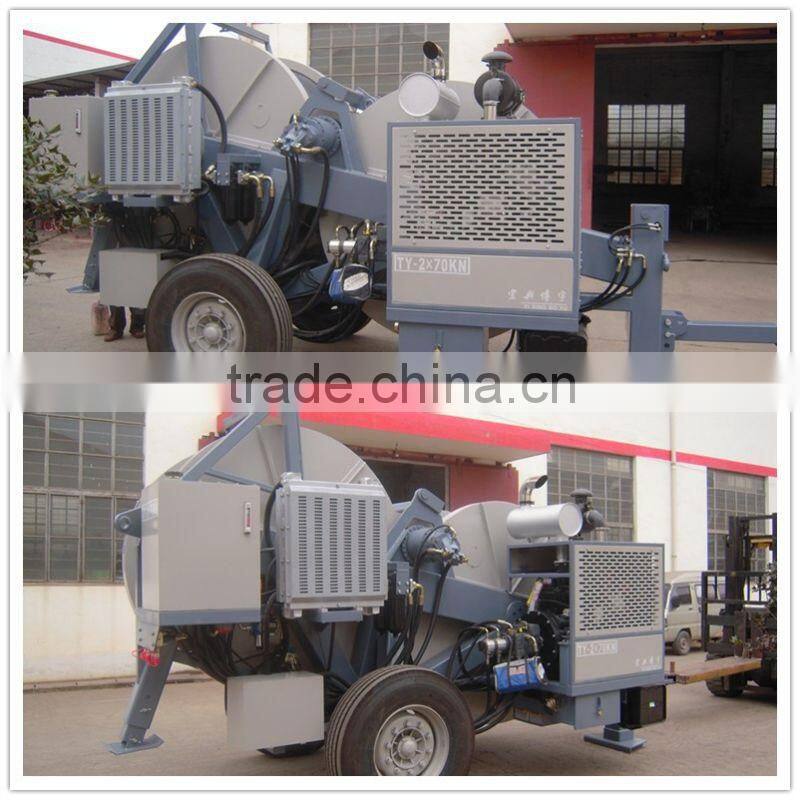

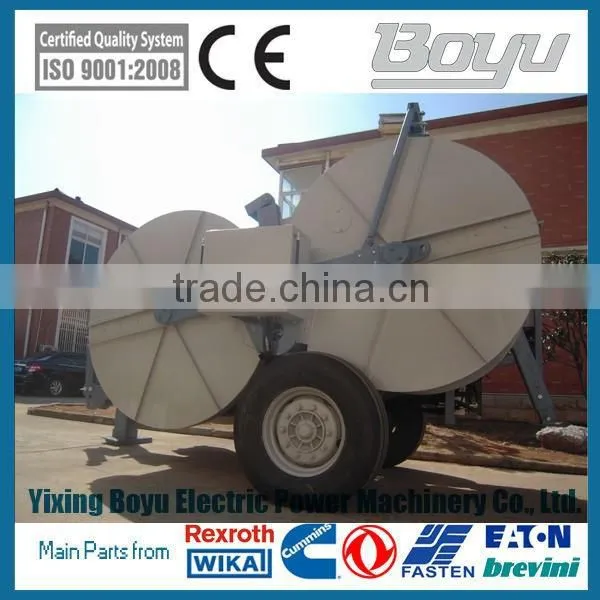

2x70KN Famous Brand electric tensioner manufacture
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2
and below in flat lands, and of conductor 720mm2 in various terrains;
besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance parameter
Max intermittent tension:2X70kN
Max continuous tension: 2X65KN
Corresponding speed:2.5km/h
Max continous laying speed:5km/h
Corresponding tension:2X25KN
Max reverse pulling force:2X60kN/1X120kN
Max reverse pulling speed:5km/h
Structure parameter

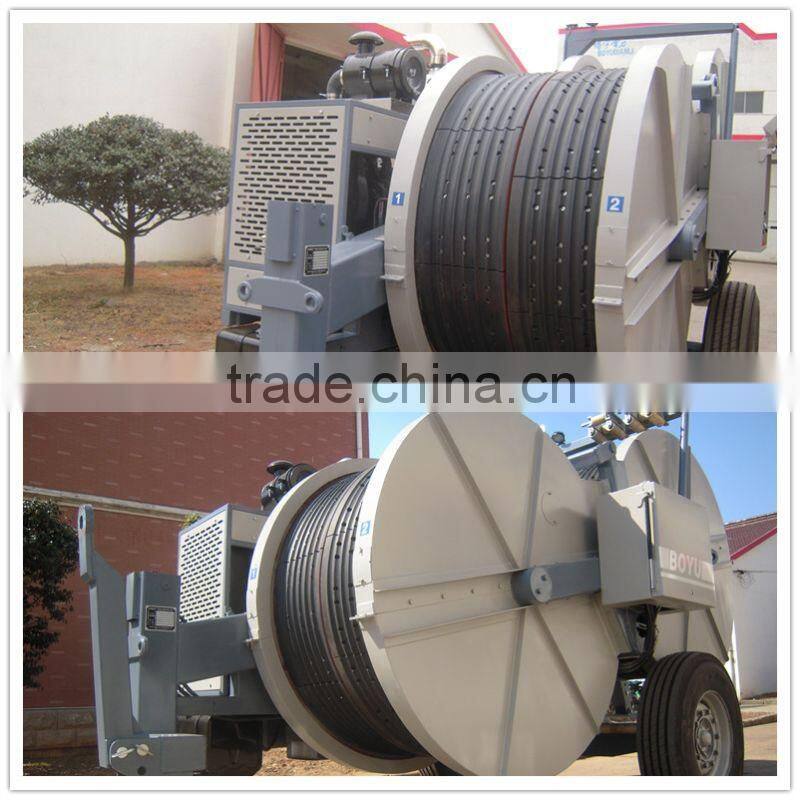

Tension wheel diameter:1700mm
Max diameter of applicable :40mm
Groove number:6
Total weight:7500kg
overall dimension (length*width*height):4700*2300*2700mm
Main comfigurations
Engine:Cummins
Main motor:German Rexroth
Speed reducer :German Rexroth
Hydraulic meter: German WIKA
| Performance parameter | Max intermittent tension | 2*70kN |
| Max continuous tension | 2*65KN | |
| Corresponding speed | 2.5km/h | |
| Structure parameter | Tension wheel diameter | 1700mm |
| Max diameter of applicable | 40mm | |
| Groove number | 6 | |
| Main comfigurations | Engine | Cummins |
| Main motor | German Rexroth | |
| Speed reducer | German Rexroth |
More pictures:
Production workshop
Company introduction
Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
....
