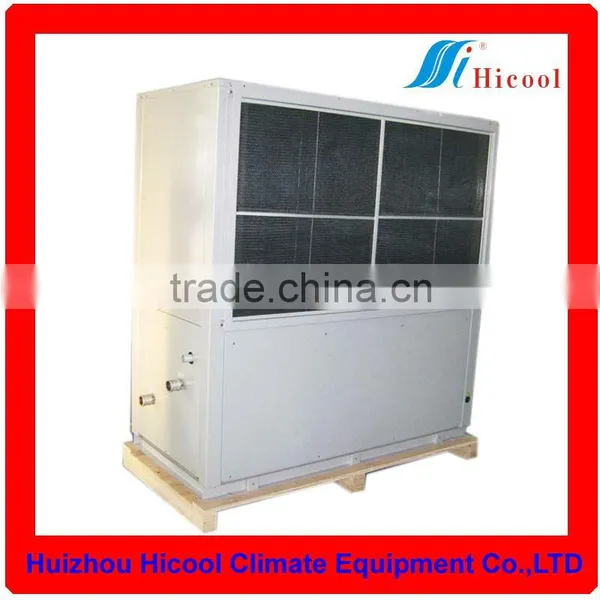

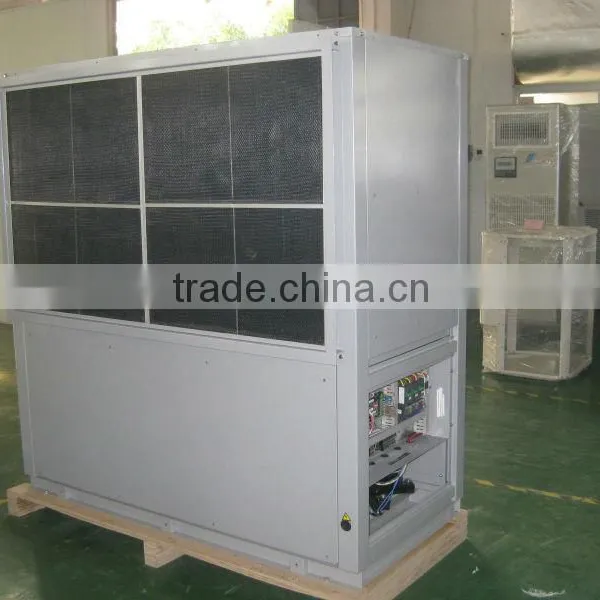

Reliable Quality Water Cooled Air Conditioner
Water Cooled Air Conditioner are new models developed by Hicool, characterized in high-efficiency and non-pollution. Cooling and heating can be selected by purpose that reduces running cost. It combined the merits of both central air conditioners and home air conditioners, so the air conditioning room temperature can be adjusted separated or centralized.
Feature
Air Coil
Die formed plate type aluminium fins mechanically bonded to high efficiency inner grooved copper tubes.
Fans
Forward curved double inlet fans in involute scrolls and fitted directly to a resiliently mounted motor. Speed tappings allow airflow selection to match external duct pressure.
Application range
Widely applied to office buildings, apartments, hotels, banks, schools and gymnasiums etc.
| Water Cooled Air Conditioner Parameter | ||||||||||
| Model | H-WFs180T/4 | H-WFs22T/4 | H-WFs250T/4 | H-WFs300T/4 | H-WFs460T/4 | H-WFs580T/4 | H-WFs700T/4 | |||
| Cooling capacity | KW | 18 | 22 | 25 | 30 | 46 | 58 | 70 | ||
| Cooling rated power | KW | 3.4 | 4.1 | 4.7 | 5.6 | 8.5 | 10.9 | 13.1 | ||
| Air flow volume | m3/h | 3500 | 4200 | 4800 | 5700 | 8600 | 10000 | 12500 | ||
| Power Supply | 380V/3~N/50Hz | |||||||||
| Rated Input Current | A | 14 | 14 | 14 | 18 | 23 | 29 | 35 | ||
| External static pressure | Pa | 30 | 30 | 30 | 30 | 50 | 100 | 150 | ||
| Refrigeration System | Compressor quantity | 1 | 1 | 1 | 2 | 2 | 2 | 2 | ||
| Compressor type | Scroll Compressor | |||||||||
| Refrigerant | R22 | |||||||||
| Refrigerant weight | kg | 3.4 | 3.7 | 4 | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 3.5+3.5 | ||
| Condenser | Type | Shell and Tube | ||||||||
| Water flow | m3/h | 4.0 | 4.9 | 5.6 | 6.7 | 10.3 | 13.0 | 15.6 | ||
| Water pressure drop | kPa | 33 | 33 | 33 | 30 | 35 | 35 | 35 | ||
| Water pipe size | mm | DN40 | DN40 | DN40 | DN40 | DN50 | DN50 | DN50 | ||
| Cooling water pipe size | mm | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 | DN25 | ||
| Net dimension(LXWXH) | mm | 1060X660X1080 | 1060X660X1080 | 1060X660X1080 | 1060X660X1080 | 1260X660X1080 | 1260X660X1080 | 1925X1155X1765 | ||
| Packing dimension(LXWXH) | mm | 1160X760X1250 | 1160X760X1250 | 1160X760X1250 | 1160X760X1250 | 1360X760X1350 | 1360X760X1350 | 2100X1260X1950 | ||
| Net weight | kg | 180 | 192 | 200 | 260 | 355 | 468 | 645 | ||
| Gross weight | kg | 200 | 210 | 220 | 280 | 385 | 498 | 680 | ||
| Model | H-WFs800T/4 | H-WFs1000T/4 | H-WFs1300T/4 | H-WFs1500T/4 | H-WFs1650T/4 | H-WFs1800T/4 | H-WFs2400T/4 | |||
| Cooling capacity | KW | 80 | 100 | 130 | 150 | 165 | 180 | 240 | ||
| Cooling rated power | KW | 14.9 | 18.8 | 24.5 | 28.3 | 31.2 | 33.9 | 45.5 | ||
| Air flow volume | m3/h | 14000 | 18000 | 22600 | 275000 | 30000 | 33000 | 44000 | ||
| Power Supply | 380V/3~N/50Hz | |||||||||
| Rated Input Current | A | 39 | 46 | 70 | 80 | 90 | 105 | 135 | ||
| External static pressure | Pa | 200 | 200 | 250 | 300 | 300 | 300 | 350 | ||
| Refrigeration System | Compressor quantity | 2 | 2 | 3 | 4 | 4 | 4 | 4 | ||
| Compressor type | Scroll Compressor | |||||||||
| Refrigerant | R22 | |||||||||
| Refrigerant weight | kg | 4.0+4.0 | 5.2+5.2 | 5.2X2+4.0 | 5.2X2+4.0 | 5.2X3+3.0 | 5.2X2+6.0X2 | 8.0X4 | ||
| Condenser | Type | Shell and Tube | ||||||||
| Water flow | m3/h | 17.9 | 22.4 | 29.1 | 33.5 | 36.9 | 40.2 | 53.7 | ||
| Water pressure drop | kPa | 36 | 42 | 46 | 46 | 46 | 48 | 49 | ||
| Water pipe size | mm | DN65 | DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | ||
| Cooling water pipe size | mm | DN25 | DN25 | DN32 | DN32 | DN32 | DN32 | DN40 | ||
| Net dimension(LXWXH) | mm | 1925X155X1765 | 2145X1383X1856 | 2145X1383X1856 | 2145X1383X1856X | 2840X1383X1856 | 2840X1383X1856 | 2840X1383X2156 | ||
| Packing dimension(LXWXH) | mm | 2100x1260x1950 | 2250x1490x2120 | 2250x1490x2120 | 2250x1490x2120 | 2250x1490x2120 | 2250x1490x2120 | 2940x1490x2320 | ||
| Net weight | kg | 820 | 900 | 1015 | 1200 | 1300 | 1550 | 2100 | ||
| Gross weight | kg | 855 | 940 | 1055 | 1240 | 1350 | 1600 | 2175 | ||
|
Note: 1) Cooling capacity is based on 80.6°F db,66.2°F wb (27/19°C) entering air temperature and 59°F(15°C) entering water temperature. 2) Above parameter is based on the normal condition , the manufacturer keep the right to change the data without inform according to the product improving. 3) All products are standard prouducts ,our customers can request any non-standard product design. | ||||||||||
HUIZHOU HICOOL CLIMATE EQUIPMENT CO., LTDis an emerging company that specializes in the design and manufacture of commercial/central air conditioning system. HICOOL, committed itself to commercial/central air conditioner researching, developing & designing since 2003, is strategically located in Huizhou, a city by the beautiful Pearl River in Guangdong Province, China. HICOOL operates out of a new 25,000 square meters factory which was designed to employ the latest efficiencies in manufacturing process.
HICOOL offers extensive range of commercial/central air conditioning system including non-refrigerant air conditioner, VRV system, high and low static duct unit, rooftop unit, air-cooled split type floor standing unit, small or modular air-cooled chiller, water / ground source heat pump, air source heat pump, swimming pool heat pump, air / water cooled screw chiller, air handling unit, fan coils, cassette type, etc. These products are well recognized domestically and internationally by our customers from East Europe, Middle East, South Africa, Oceania, North America and South America.
Customers benefit from HICOOL's state of art factory and product design utilizing cutting edge engineering technology. The company adheres to four key principles in the design and manufacture of its products namely: technology, efficiency, quality, and innovation. The company's specialized products meet its customer's needs by incorporating leading edge technology along with pursuing a quality policy of “reliability and safety, green and efficiency, innovation and technology, improvement and excellence”. The company's products demonstrate superior quality, elegant design, and extraordinary energy efficiency. Our factory possesses advanced production equipments and testing systems that are established to comply with the ISO9001 Quality Management System. All of the company's products are certified by CCC (China Compulsory Certification), CE & CB, while the leading products have MEPS (Oceania market), ETL (Northern American market), and some other certificates.
HICOOL provides its customer with custom design generated by computerized modeling and simulation. We partner with distinguished institutions and companies internationally to offer our customers free services in the design of air conditioning system, installation, training, and warranty.
High quality creates cool life. Our commitment to our customers, is to continue to add value through cutting edge technology, cost competitiveness, and sustainable growth.
Factory Overview
1. Can you offer OEM products?
Sure, we are OEM factory for 8 years
2. What are your typical products?
Water cooled packaged heat pumps, air source heat pumps, ground source heat pumps, rooftop packgaed units and chillers
