Product Details
Condition: | New | Type: | Other, commercial air conditioner | Place of Origin: | Guangdong, China |
Brand Name: | Hicool | Model Number: | H-RtR700 | Operating Voltage: | 380/400 VAC |
Mounting: | Floor Standing | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

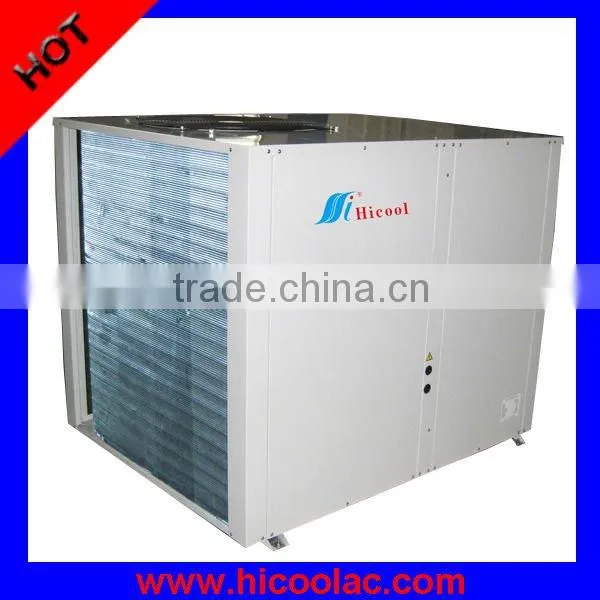

rooftop units
Hicool Rooftop Packaged Units are single packaged which are factory assembled, tested and shipped completely with compressor, evaporator and condenser coils, fans and controls.
Feature
-Cooling Capacity: From 5 ton to 35 ton.
-Weather-proof: polyester epoxy power electrostatic paint oven-baked finish for sheet metal and multi epoxy polyester coating for base frame for maximum protection
-Quiet operation: With low noise fan motor and hermetic scroll compressor with sound insulation system.
-Intelligent control: Parameters of unit are monitored and adjusted by microcomputer system.
-High efficiency :High efficiency thanks to the Anti-vibration mounting scroll compressors
-Instant operability: Quick start-up is assured once installation is complete.
-Safety and reliability: Complete unit control function, multi protection, safe and reliable operation.
Rooftop Packaged Unit Parameter | |||||||
Model | H-RtR175T/3 | H-RtR210T/3 | H-RtR260T/3 | H-RtR350T/3 | H-RtR525T/3 | ||
Cooling Capacity | kW | 17.5 | 21 | 26 | 35 | 52.5 | |
Cooling Input Power | kW | 6.2 | 7.4 | 9.2 | 12.5 | 18.1 | |
Heating Capacity | kW | 19.3 | 23.0 | 28.5 | 38.5 | 57.8 | |
Heating Input Power | kW | 6.1 | 7.2 | 8.9 | 12.2 | 17.5 | |
Rated Air Flow Volume | m3/h | 3700 | 4200 | 5200 | 6600 | 9200 | |
Max Static Pressure | Pa | 120 | 150 | 200 | 250 | 250 | |
Compressor | Type | Scroll | |||||
Quantity | 1 | 1 | 2 | 2 | 2 | ||
Power Supply | 380V/3~N/50Hz | ||||||
Refrigerant | R22 | ||||||
Refrigerant Charge | kg | 3.8 | 4.2 | 6 | 9.2 | 13.8 | |
Noise | dB(A) | 59 | 61 | 61 | 63 | 65 | |
Net Dimension(LxWxH) | mm | 1240×1000×810 | 1150×1050×1043 | 1310×1050×1135 | 2100×1210×1135 | 2100×1700×1135 | |
Net Weight | kg | 205 | 280 | 340 | 520 | 800 | |
Packing Dimension(LxWxH) | mm | 1270×1050×865 | 1250×1150×1143 | 1410×1150×1290 | 2165×1295×1290 | 2165×1785×1290 | |
Gross Weight | kg | 225 | 320 | 380 | 550 | 845 | |
Model | H-RtR610T/3 | H-RtR700T/3 | H-RtR875T/3 | H-RtR1050T/3 | H-RtR1225T/3 | ||
Cooling Capacity | kW | 61 | 70 | 87.5 | 105 | 122.5 | |
Cooling Input Power | kW | 20.6 | 23.5 | 29.6 | 35.6 | 41.5 | |
Heating Capacity | kW | 65.4 | 77.0 | 96.3 | 115.5 | 134.8 | |
Heating Input Power | kW | 20.1 | 22.8 | 28.8 | 34.7 | 40.2 | |
Rated Air Flow Volume | m3/h | 10700 | 12300 | 15200 | 18300 | 21600 | |
Max Static Pressure | Pa | 300 | 350 | 400 | 400 | 500 | |
Compressor | Type | Scroll | |||||
Quantity | 2 | 2 | 2 | 4 | 4 | ||
Power Supply | 380V/3~N/50Hz | ||||||
Refrigerant | R22 | ||||||
Refrigerant Charge | kg | 15.2 | 16.4 | 16 | 26 | 30 | |
Noise | dB(A) | 66 | 70 | 72 | 75 | 78 | |
Net Dimension(LxWxH) | mm | 2210×1800×1210 | 2100×1995×1135 | 2803×2195×1123 | 3385×2193×1127 | 3800×2193×1127 | |
Net Weight | kg | 880 | 950 | 1240 | 1420 | 1610 | |
Packing Dimension(LxWxH) | mm | 2310×1900×1310 | 2165×2080×1290 | 2903×2300×1223 | 3485×2300×1227 | 3900×2300×1227 | |
Gross Weight | kg | 925 | 1030 | 1330 | 1520 | 1720 | |
Note: 1)Nominal cooling conditions: indoor dry bulb temperature is 27°C, indoor wet bulb temperature is 19°C, outdoor dry bulb temperature is 35°C, outdoor wet bulb temperature is 24°C. 2)Nominal heating conditions: indoor dry bulb temperature is 20°C, indoor wet bulb temperature is 15°C, outdoor bulb temperature is 7°C, outdoor wet bulb temperature is 6°C. |
