1.Max pull:60kN
2.Engine:Cummins 77kw
3.Main parts:German Rexroth
4.German WIKA
60KN Stringing 6T wire puller
TY60 Hydraulic Puller

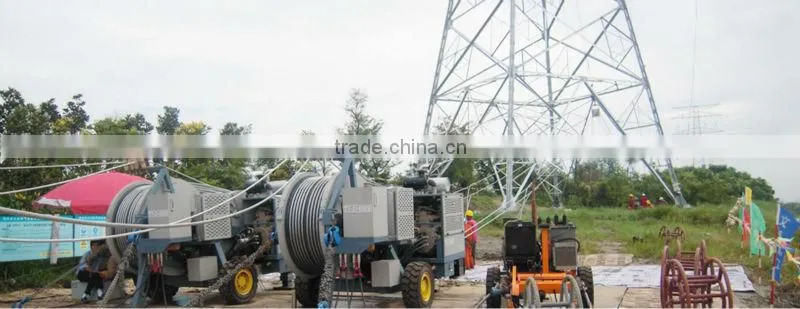

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.
Performance parameter
Max intermittent pulling force : 60KN
Max continous pulling force: 50KN
Corresponding speed: 2.5km/h
Max continous pulling speed: 5km/h
Corresponding pulling force: 25KN
Structure parameter
Puller wheel diameter: 450mm
Groove number: 7
Max diameter of applicable steel wire rope : 18mm
Max diameter of applicable wire coil: 1400mm
Total weight: 3500kg
overall dimension (length*width*height): 3800×2100×2300mm
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

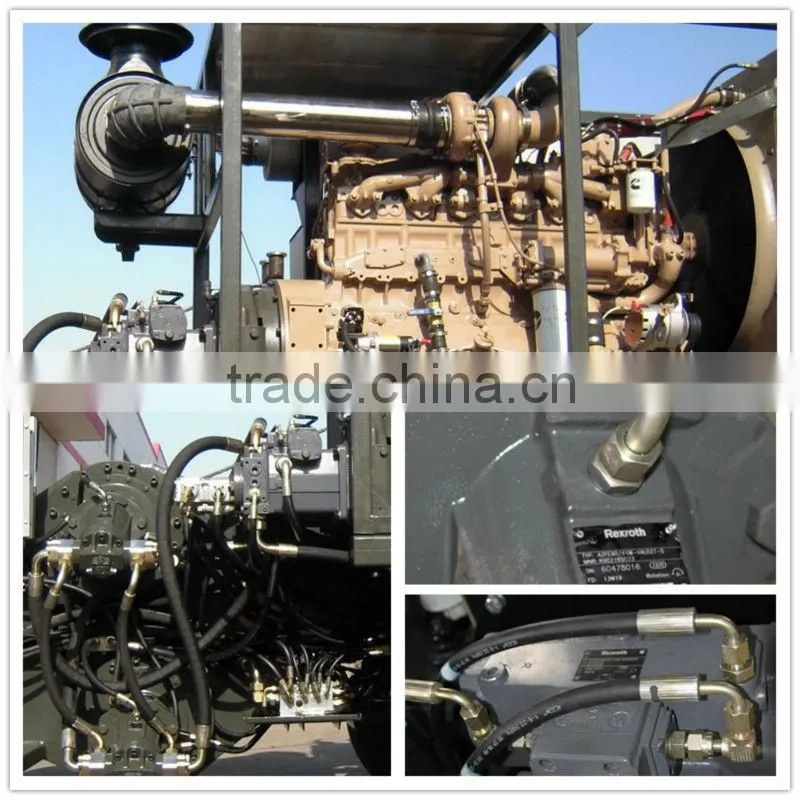

Main configurations
Engine:Cummins
Main pump: German Rexroth
Main moterspeed reducer : German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA
Performance parameter |
max inMax intermittent pulling force | 60kn |
| Max continous pulling force | 50kn | |
| Corresponding speed | 2.5km/h | |
| Max continous pulling speed | 5km/h | |
Corresponding pulling force |
25KN | |
Structure parameter |
Puller wheel diameter | 450mm |
| Groove number | 7 | |
| Max diameter of applicable wire coil: | 1400mm | |
Main comfigurations |
Engine | Cummins |
| Main pump | German Rexroth |

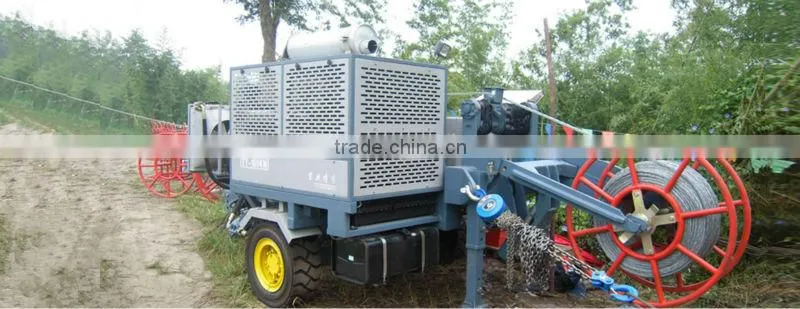

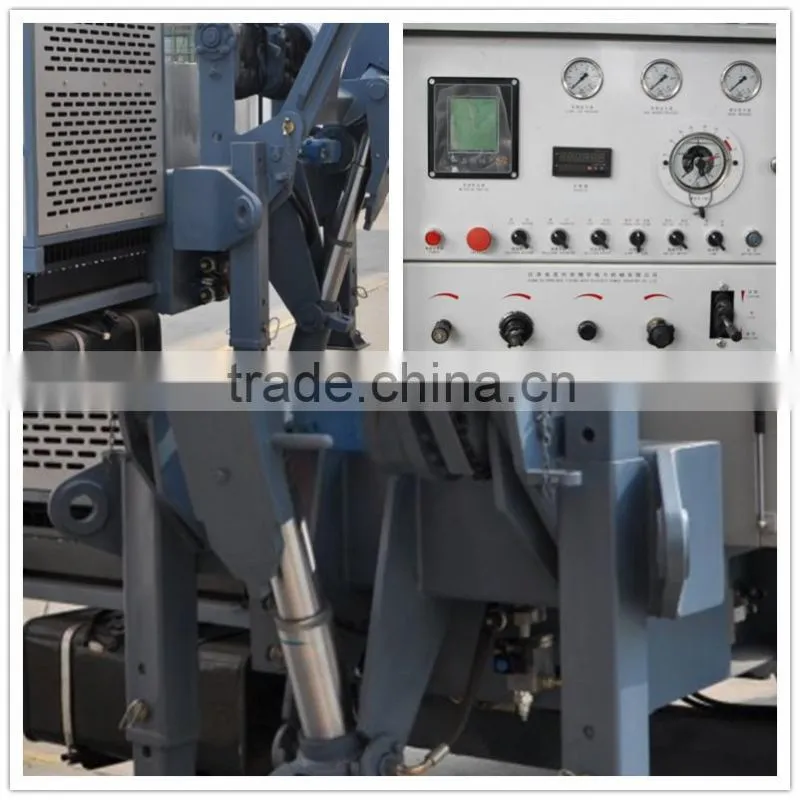

Production pictures

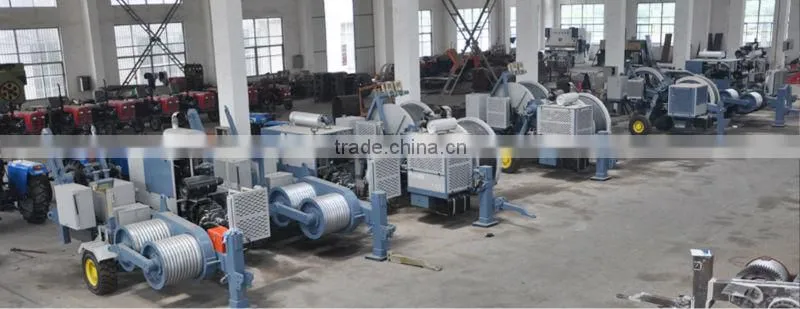

Production workshop
Company introduction
Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
....
