1. Max pull: 180kN
2. Engine: Cummins 239kw
3. Main Parts from: German Rexroth
4. German WIKA

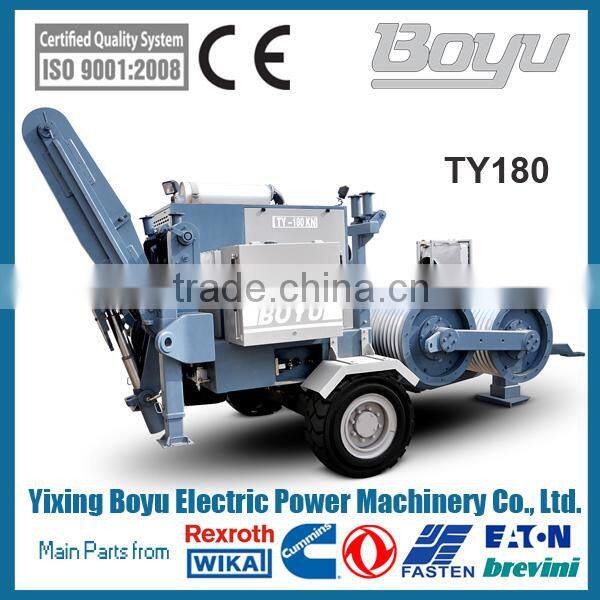

180KN Stringing electric wire puller
The machine allows for the tension stringing of 4-bundle conductor of 630mm2
and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2
and below in flat lands; besides,
it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Performance parameter
Max intermittent pulling force :180KN
Max continous pulling force:150KN
Corresponding speed:2.5km/h
Max continous pulling speed:5km/h
Corresponding pulling force:75KN
Structure parameter
Puller wheel diameter:700mm
Groove number:10
Max diameter of applicable steel wire rope :27mm
Electric systerm:24V
Max diameter of applicable wire coil:1400mm
Total weight:6800kg
overall dimension:4300×2360×2380mm
Main comfigurations

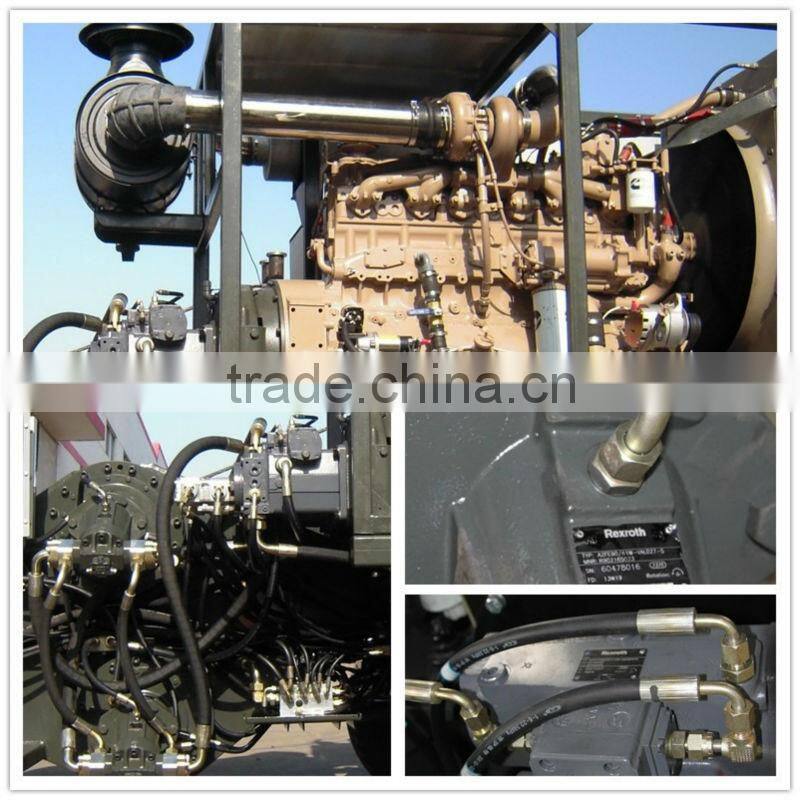

Engine:Cummins
hydraulic pump:German Rexroth
Main moter:German Rexroth
speed reducer :German Rexroth
Hydraulic meter: German WIKA
Performance parameter |
Max intermittent pulling force | 180KN |
| Max continous pulling force | 150KN | |
| Corresponding speed | 2.5km/h | |
Structure parameter |
Puller wheel diameter | 700mm |
| Groove number | 10 | |
| Max diameter of applicable steel wire rope | 27mm | |
Main comfigurations |
Engine | Cummins |
| Hydraulic pump |
German Rexroth |
|
| Hydraulic meter | German WIKA |

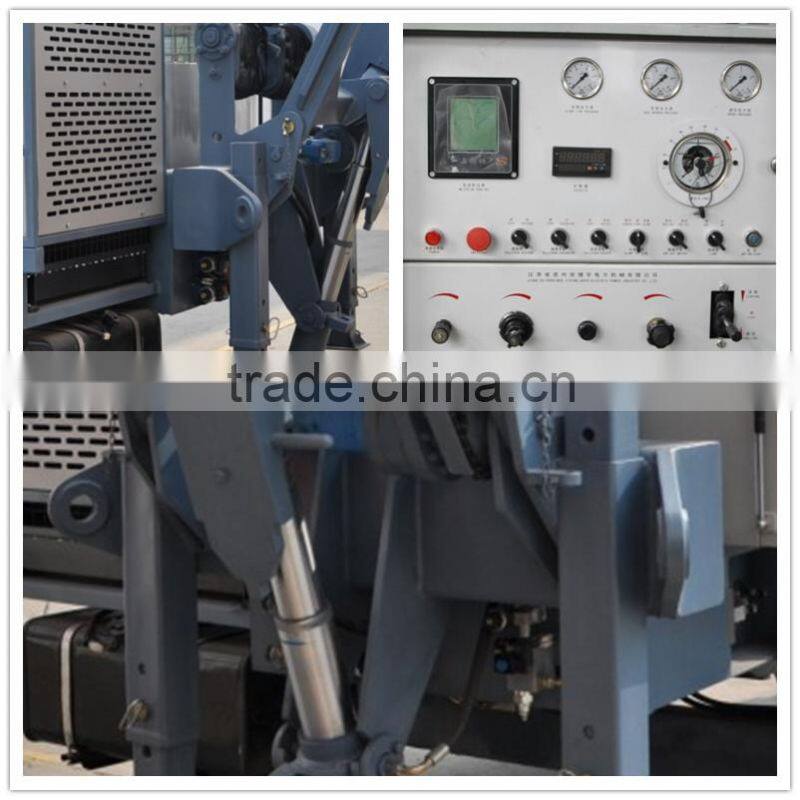

More pictures:
Production workshop
Company introduction
Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system
History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
...
