Split Type Ducted Air Conditioner

Split Type Ducted Air Conditioner thumbnail-1
Split Type Ducted Air Conditioner thumbnail-2
Split Type Ducted Air Conditioner thumbnail-3
Split Type Ducted Air Conditioner thumbnail-4
Split Type Ducted Air Conditioner thumbnail-5
Split Type Ducted Air Conditioner photo-1
Split Type Ducted Air Conditioner photo-2
Split Type Ducted Air Conditioner photo-3
Split Type Ducted Air Conditioner photo-4
Split Type Ducted Air Conditioner photo-5
US$ 950 - 5,540 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Commercial Airconditioner
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Huizhou Hicool Climate Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Commercial Airconditioner
Place of Origin Guangdong, China
Brand Name HICOOL
Model Number H-DhR100S
Operating Voltage 230 VAC
Mounting Split
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

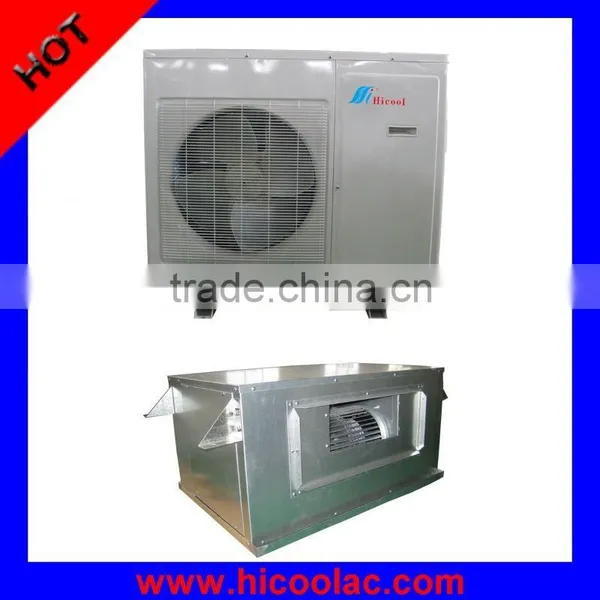

Split Type Ducted Air Conditioner







Product Description







1.Air cooled air to air conditioning system saves investment:

High static pressure duct unit is split type air to air conditioning system equipment, it has no request on water system & compound equipments, can reduce initial investment, can implement cooling & heat pump function simply & highly efficiently.



2.Flexible application, air flow speed can be adjusted at will

High static pressure design, air flow can be conveyed through long distance, operation can be adjusted at high/medium/low speed freely, flexible installation, can meet all kinds of customer request.



3.Excellent performance, running silently

The unit adopts world famous brand scroll compressor, configured with high efficiency low noise vibration absorption fan special for air conditioner, which has excellent air supply performance, running silently.



4.Graceful & magnificent decoration

Decorated as central air conditioners, indoor units & duct is installed in the ceiling, only the air outlets will be the exposed components, which can be blended into all kinds of decoration smoothly, makes people feel convenient & graceful.



Application range:

The units have excellent performance, can be freely applied & easily installed, can meet all kinds of requirements for home, industrial & commercial use, widely used in buildings like emporiums, hotels, supermarkets, workshops, residential houses, apartments, etc.



Split Type Ducted Air Conditioner parameter



 Model H-DhR100S H-DhR140S H-DhR180T H-DhR180T/3 H-DhR220T/3 H-DhR260T/3 H-DhR300T/3 H-DhR350T/3 H-DhR420T/3 H-DhR480T/3 H-DhR525T/3 H-DhR600T/3 H-DhR700T/3 H-DhR875T/3 H-DhR1050T/3 H-DhR1400T/3 H-DhR1510T/3
Cooling Capacity kW 10 14 18 18 22 26 30 35 42 48 52.5 60 70 87.5 105 140 151
Cooling Capacity BTU 34000 48000 60000 60000 75000 90000 103000 120000 144000 165000 180000 206000 240000 300000 360000 480000 520000
Heating Capacity (heat pump) kW 12 16 20 21 24 28 34 40 48 55 60 69 80 100 116 152 164
Rated Input Power Cooling kW 3.4 4.8 6.1 6.2 7.2 8.3 10.3 11.9 14.4 16.5 18.1 20.5 23.9 30 36.1 48 51.8
 Heating kW 3.8 5.3 6.6 6.8 7.5 8.6 10.8 12.9 14.8 17.2 19.3 22.1 25.2 31.6 37.4 48.9 52.9
Rated Input Current  Cooling A 15.5 22 28 9.4 11 12.6 14.9 17.5 20.7 24.1 26.3 29.8 35.2 43.8 52.8 68.4 76.2
Heating A 17.3 24 30 10.3 11.3 13 16 19.2 22.6 26.1 28.8 32.9 38.4 47.7 55.4 72.7 78.2
 Indoor Unit
Power Supply  220V / 50Hz  1P
Rated Air Flow Volume m3/h 1800 2600 3500 3500 4000 4800 6000 7000 7600 8200 9000 11000 14000 16500 20000 24000 26000
Fan Motor Power kW 0.15 0.22 0.15×2 0.15×2 0.22×2 0.37×2 0.37×2 0.37×2 0.55×2 0.55×2 0.55×2 0.75×2 0.75×2 0.75×2 0.55×4 0.75×4 0.75×4
Fan Motor Input Current A 0.7 1.1 1.5 1.5 2.2 3.5 3.5 3.5 5 5 5 6.8 6.8 6.8 10.0 14.0 14.0
Static Pressure Pa 70-200 150~300 150~500
Noise dB(A) 51 54 55 55 56 57 59 60 61 62 63 65 66 66 67 69 70
Net Dimension(LxWxH) mm 1050×600×435 1050×600×435 1350×600×435 1350×600×435 1600×600×435 1600×600×435 1600×600×435 1750×700×550 1750×700×550 1750×800×640 1750×800×640 1800×1200×640 1800×1200×640 1800×1200×640 2000×1400×800 2000×1400×800 2000×1600×800
Net Weight  kg 49 59 72 73 84 86 94 116 128 144 158 180 196 208 234 278 352
Packing Dimension(LxWxH) mm 1090×658×495 1090×658×495 1390×658×495 1390×658×495 1640×658×495 1640×658×495 1660×658×520 1810×760×640 1810×760×640 1810×890×740 1810×890×740 1860×1288×740 1860×1288×740 1860×1288×740 2100×1500×900 2100×1500×900 2100×1700×900
Gross Weight  kg 53 63 77 78 91 91 100 124 136 154 170 194 212 224 250 294 368
 Outdoor Unit
Power Supply  220V/1P/50Hz 380V/3P/50Hz
Compressor      Qty 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 4 4
Type Scroll compressor
Refrigerant Charge kg 2 3.2 4.5 4.2 4.5 5 7.6 9.2 10.8 12 13.8 15.2 16.4 21 26 32 38
Refrigerant R410a

Connecting Pipe		  Liquid Inches 3/8" 1/2" 5/8"
 Gas Inches 5/8" 3/4" 7/8"
Maximum Piping Length m 40
Maximum Height Drop m 10
Air Discharging Type  Side  Top
Noise dB(A) 57 58 60 60 62 62 64 65 65 65 66 68 69 70 71 72 74
Net Dimension(LxWxH) mm 1010×416×865 1010×416×1280 1100×640×1010 1100×640×1010 1250×640×1010 1250×640×1010 1250×640×1010 1400×800×1220 1400×800×1220 1800×980×1220 1800×980×1220 1800×980×1220 2180×1130×1220 2180×1130×1220 2500×1280×1220 2500×1280×1220 2500×1280×1220
Net Weight  kg 80 128 165 140 150 180 220 280 300 380 420 470 600 700 1050 1270 1400
Packing Dimension(LxWxH) mm 1110×462×1080 1110×462×1495 1146×735×1110 1146×735×1110 1296×735×1110 1296×735×1110 1296×735×1110 1450×900×1320 1450×900×1320 1850×1080×1320 1850×1080×1320 1850×1080×1320 2280×1230×1320 2280×1230×1320 2650×1380×1320 2650×1380×1320 2650×1380×1320
 Gross Weight  kg 85 132 203 178 188 220 260 420 340 420 460 510 660 760 1140 1360 1500
Note:
1)Nominal cooling conditions: indoor dry bulb temperature is 27°C, indoor wet bulb temperature is 19°C, outdoor dry bulb temperature is 35°C, outdoor wet bulb temperature is 24°C.
2)Nominal heating conditions: indoor dry bulb temperature is 20°C, indoor




Packaging & Shipping

Split Type Ducted Air ConditionerSplit Type Ducted Air ConditionerSplit Type Ducted Air ConditionerSplit Type Ducted Air Conditioner





Company Information



 HUIZHOU HICOOL CLIMATE EQUIPMENT CO., LTDis an emerging company that specializes in the design and manufacture of commercial/central air conditioning system. HICOOL, committed itself to commercial/central air conditioner researching, developing & designing since 2003, is strategically located in Huizhou, a city by the beautiful Pearl River in Guangdong Province, China. HICOOL operates out of a new 25,000 square meters factory which was designed to employ the latest efficiencies in manufacturing process.

HICOOL offers extensive range of commercial/central air conditioning system including non-refrigerant air conditioner, VRV system, high and low static duct unit, rooftop unit, air-cooled split type floor standing unit, small or modular air-cooled chiller, water / ground source heat pump, air source heat pump, swimming pool heat pump, air / water cooled screw chiller, air handling unit, fan coils, cassette type, etc. These products are well recognized domestically and internationally by our customers from East Europe, Middle East, South Africa, Oceania, North America and South America.


Customers benefit from HICOOL's state of art factory and product design utilizing cutting edge engineering technology. The company adheres to four key principles in the design and manufacture of its products namely: technology, efficiency, quality, and innovation. The company's specialized products meet its customer's needs by incorporating leading edge technology along with pursuing a quality policy of “reliability and safety, green and efficiency, innovation and technology, improvement and excellence”. The company's products demonstrate superior quality, elegant design, and extraordinary energy efficiency. Our factory possesses advanced production equipments and testing systems that are established to comply with the ISO9001 Quality Management System. All of the company's products are certified by CCC (China Compulsory Certification), CE & CB, while the leading products have MEPS (Oceania market), ETL (Northern American market), and some other certificates.

HICOOL provides its customer with custom design generated by computerized modeling and simulation. We partner with distinguished institutions and companies internationally to offer our customers free services in the design of air conditioning system, installation, training, and warranty.
High quality creates cool life. Our commitment to our customers, is to continue to add value through cutting edge technology, cost competitiveness, and sustainable growth.

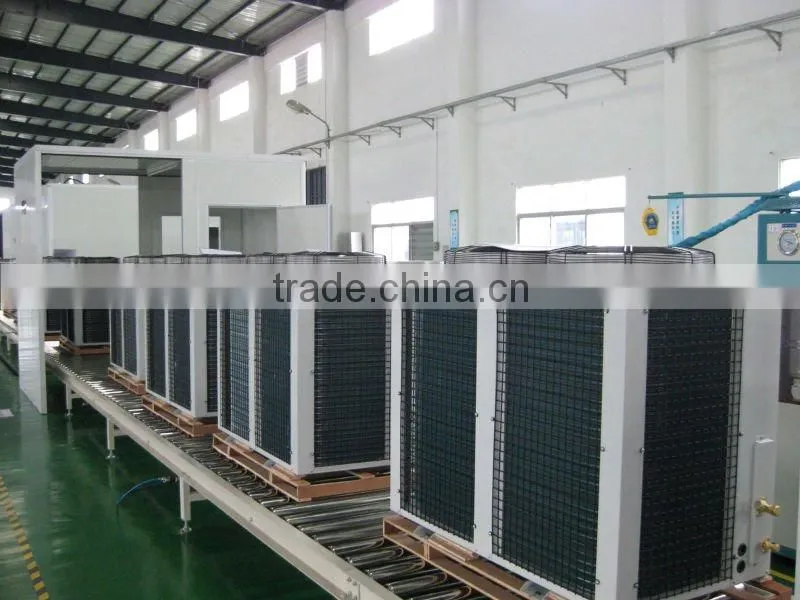

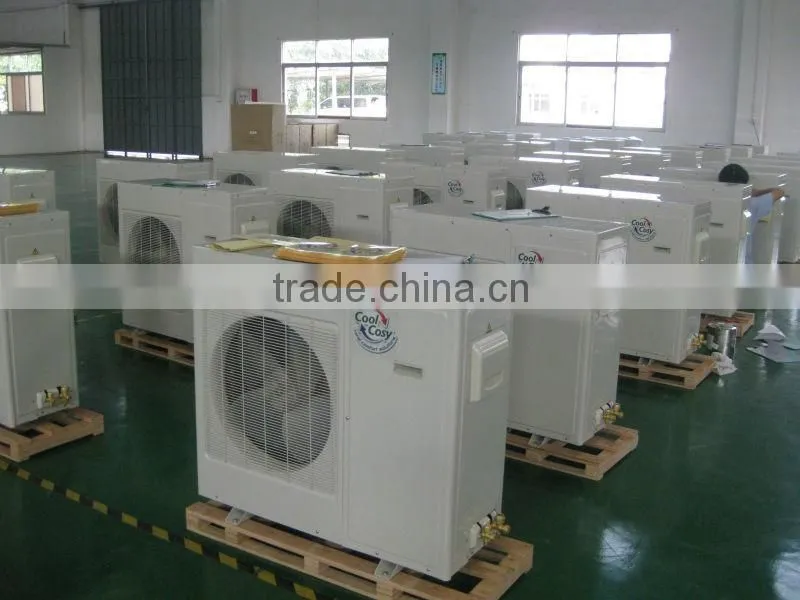

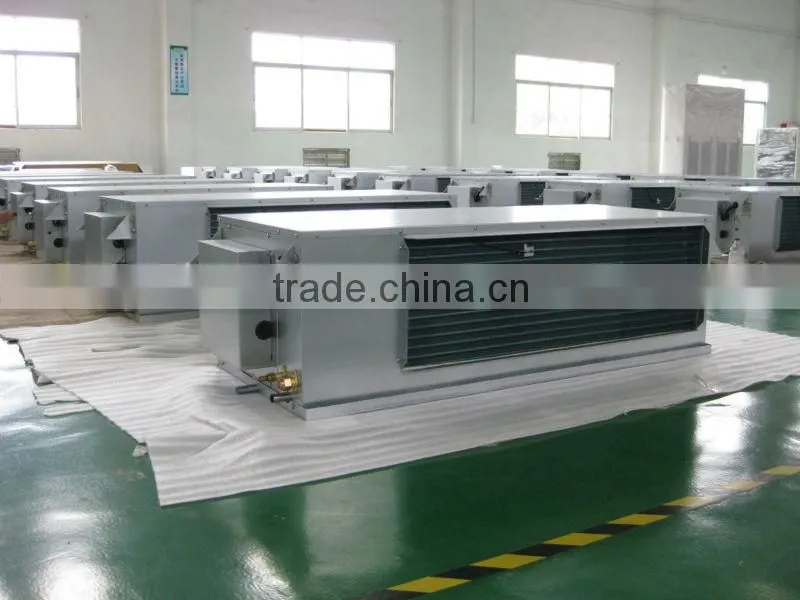

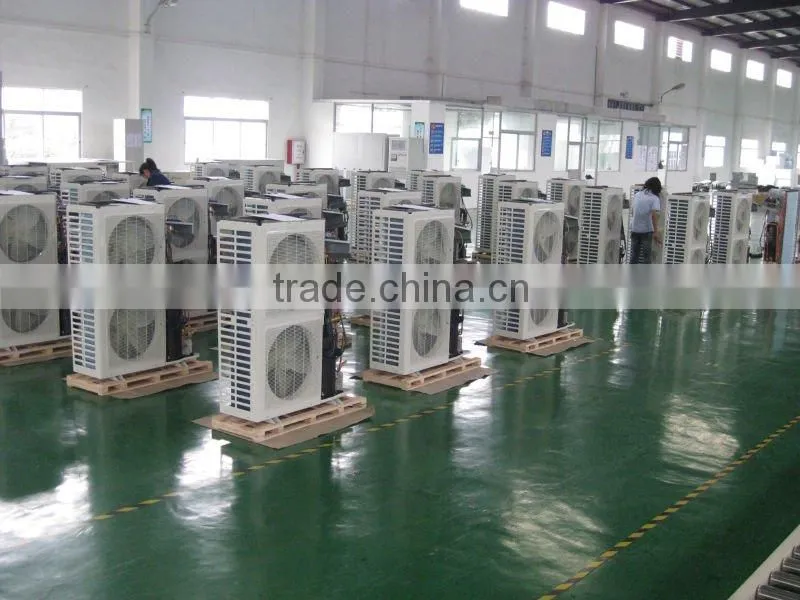

 Factory Overview









FAQ



1. Can you offer OEM products?



Sure, we are OEM factory for 8 years



2. What are your typical products?



Water cooled packaged heat pumps, air source heat pumps, ground source heat pumps, rooftop packgaed units and chillers
