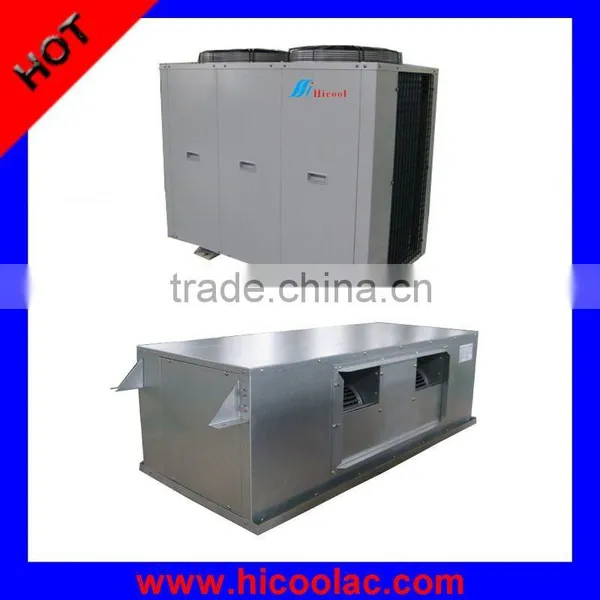

High Static Pressure Duct Unit split air conditioner
-Recommended for spacious and large-volume areas because of its flexible installation.
-Suitable for large stores, factories, and other large areas, and for use with housing ducts in homes.
Feature
-High energy efficiency
-High external static pressure design
-Long distribution pipe and high drop
-Multi-mode for installation
-Auxiliary electric heating function(optional)
-Optional safety devices and much more precision control device
-Weekly timer(standard)
-Auto restart function
|
High Static Pressure Duct Unit Parameter |
|||||||||
| Model | H-DhR100S | H-DhR140S | H-DhR180T | H-DhR180T/3 | H-DhR220T/3 | H-DhR260T/3 | H-DhR300T/3 | ||
| Cooling Capacity | kW | 10.6 | 14.2 | 18.4 | 18.5 | 22.2 | 26.5 | 30 | |
| Heating Capacity | kW | 12.8 | 16.5 | 20.5 | 21.5 | 24.5 | 28.6 | 33 | |
|
Rated Input Power |
Cooling | kW | 3.3 | 4.5 | 5.8 | 5.8 | 7 | 8.3 | 10.6 |
| Heating | kW | 3.9 | 5.2 | 6.4 | 6.6 | 7.5 | 8.6 | 11.2 | |
|
Rated Input Current |
Cooling | A | 18.7 | 25.5 | 33 | 11 | 13.3 | 15.8 | 16 |
| Heating | A | 22 | 29.5 | 36 | 12.5 | 14.2 | 16.3 | 17 | |
| Indoor Unit | |||||||||
| Power Supply | 220V~ /1Ph/ 50Hz | ||||||||
| Rated Air Flow Volume | m3/h | 1800 | 2600 | 3500 | 3500 | 4000 | 4800 | 6000 | |
| Fan Motor Power | kW | 0.15 | 0.275 | 0.15×2 | 0.15×2 | 0.25×2 | 0.375×2 | 0.55×2 | |
| Fan Motor Input Current | A | 1.36 | 2.5 | 2.72 | 2.72 | 4.5 | 6.8 | 4.8 | |
| Static Pressure | Pa | 70-130 | |||||||
| Noise | dB(A) | 51 | 54 | 55 | 55 | 56 | 57 | 58 | |
|
Net Dimension(LxWxH) |
mm | 1050×600×435 | 1050×600×435 | 1350×600×435 | 1350×600×435 | 1600×600×435 | 1600×600×435 | 1900×800×540 | |
| Net Weight | kg | 49 | 59 | 72 | 73 | 84 | 84 | 110 | |
|
Packing Dimension(LxWxH) |
mm | 1090×658×495 | 1090×658×495 | 1390×658×495 | 1390×658×495 | 1640×658×495 | 1640×658×495 | 1950×850×600 | |
| Gross Weight | kg | 53 | 63 | 77 | 78 | 91 | 91 | 118 | |

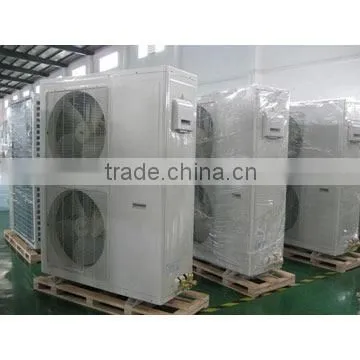

| Outdoor Unit | |||||||||
| Power Supply | 220V~ /1Ph/50Hz | 380V~ /3Ph/ 50Hz | |||||||
| Refrigerant Charge | kg | 2 | 3.2 | 4.5 | 4.2 | 4.5 | 5 | 6 | |
| Refrigerant | R22 | ||||||||
|
Connecting Pipe |
Liquid | Inches | 3/8" | 1/2" | 1/2" | 1/2" | 1/2" | 5/8" | 2x1/2" |
| Gas | Inches | 5/8" | 3/4" | 3/4" | 3/4" | 3/4" | 7/8" | 2x3/4" | |
|
Maximum Piping Length |
m | 50 | |||||||
|
Maximum Height Drop |
m | 30 | |||||||
| Air Discharging Type | Side | Top | |||||||
| Noise | dB(A) | 57 | 59 | 61 | 61 | 63 | 63 | 65 | |
|
Net Dimension(LxWxH) |
mm | 1010×416×865 | 1010×416×1280 | 1100×640×1010 | 1100×640×1010 | 1250×640×1010 | 1250×640×1010 | 1650×790×1040 | |
| Net Weight | kg | 80 | 128 | 165 | 140 | 150 | 180 | 260 | |
|
Packing Dimension(LxWxH) |
mm | 1110×462×1080 | 1110×462×1495 | 1146×735×1110 | 1146×735×1110 | 1296×735×1110 | 1296×735×1110 | 1700×890×1140 | |
| Gross Weight | kg | 85 | 132 | 203 | 178 | 188 | 220 | 310 | |
|
Note: 1)Nominal cooling conditions: indoor dry bulb temperature is 27°C, indoor wet bulb temperature is 19°C, outdoor dry bulb temperature is 35°C, outdoor wet bulb temperature is 24°C. 2)Nominal heating conditions: indoor dry bulb temperature is 20°C, indoor wet bulb temperature is 15°C, outdoor bulb temperature is 7°C, outdoor wet bulb temperature is 6°C. | |||||||||
HUIZHOU HICOOL CLIMATE EQUIPMENT CO., LTDis an emerging company that specializes in the design and manufacture of commercial/central air conditioning system. HICOOL, committed itself to commercial/central air conditioner researching, developing & designing since 2003, is strategically located in Huizhou, a city by the beautiful Pearl River in Guangdong Province, China. HICOOL operates out of a new 25,000 square meters factory which was designed to employ the latest efficiencies in manufacturing process.
Customers benefit from HICOOL's state of art factory and product design utilizing cutting edge engineering technology. The company adheres to four key principles in the design and manufacture of its products namely: technology, efficiency, quality, and innovation. The company's specialized products meet its customer's needs by incorporating leading edge technology along with pursuing a quality policy of “reliability and safety, green and efficiency, innovation and technology, improvement and excellence”. The company's products demonstrate superior quality, elegant design, and extraordinary energy efficiency. Our factory possesses advanced production equipments and testing systems that are established to comply with the ISO9001 Quality Management System. All of the company's products are certified by CCC (China Compulsory Certification), CE & CB, while the leading products have MEPS (Oceania market), ETL (Northern American market), and some other certificates.
HICOOL provides its customer with custom design generated by computerized modeling and simulation. We partner with distinguished institutions and companies internationally to offer our customers free services in the design of air conditioning system, installation, training, and warranty.
High quality creates cool life. Our commitment to our customers, is to continue to add value through cutting edge technology, cost competitiveness, and sustainable growth.
1. Can you offer OEM products?
Sure, we are OEM factory for 8 years
2. What are your typical products?
Water cooled packaged heat pumps, air source heat pumps, ground source heat pumps, rooftop packgaed units and chillers
