Specifications
Geothermal Water Source Heat Pump Unit (water to water)-High Efficiency and Energy Saving
-Operating Stability
-Advanced Tec

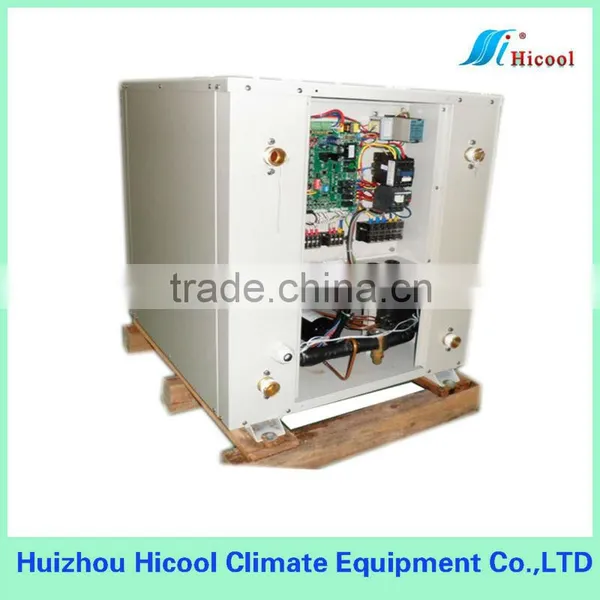

Geothermal Water Source Heat Pump Unit
The Ground Source Heat Pump is especially suitable for the building which has plenty of surplus heat, or the indoor area needs cooling and outdoor area needs heating. It is also suitable for the area where supplies adequate heat sources, like solar, river, lake and well water and terrestrial heat. It is also good for renovation of air conditioning for the old building.
Feature
-High Efficiency and Energy Saving: The air conditioner unit can automatically adjust the output energy based on the actual load in the room, leading to saving of energy and reduction of operation costs.
-Operating Stability: The temperature of water maintains relatively steady during all four seasons in a year,making operation of the unit to become much more reliable and stable,basically not affected by the surrounding environment and the natural climate.
-Advanced Technology: The unit provides not only air conditioning and heating, but also hot water for everyday life, making it really useful for multiple purposes.
-Split Operation: Control is made much easier and simpler by using the combination of wire controland remote control.
| Modular Water Source/ground source Heat Pump Parameter | |||||||||
| Model | H-30WR | H-40WR | H-50WR | H-70WR | H-90WR | H-110WR | H-150WR | ||
| Cooling Capacity | kW | 30 | 40 | 50 | 70 | 90 | 110 | 150 | |
| 103kcal/hr | 25.8 | 34.4 | 43 | 60 | 78 | 95 | 129 | ||
| Heating Capacity | kW | 33.4 | 44.5 | 56.1 | 81.7 | 96.3 | 124.7 | 176 | |
| 103kcal/hr | 28.7 | 38 | 48 | 70 | 83 | 107 | 151 | ||
| Compressor | Type | Scroll Compressor | |||||||
| Cooling Input Power | kW | 4.8 | 6.5 | 8.5 | 12.5 | 13.7 | 19.9 | 26.6 | |
| Heating Input Power | kW | 6.8 | 9.1 | 11.5 | 16.7 | 19.5 | 26.7 | 35.7 | |
| Quantity | Sets | 2 | 2 | 2 | 2 | 4 | 3 | 4 | |
| Power Supply | 380V3~N/50Hz | ||||||||
| Condense | Water Resistance | kPa | 15 | 20 | 20 | 25 | 25 | 28 | 32 |
| Water Flow | m3/h | 6.5 | 8.6 | 10.8 | 15.1 | 19.4 | 23.7 | 32.3 | |
| Gap Spec | DN | 32 | 40 | 50 | 50 | 50 | 65 | 65 | |
| Evaporator | Water Resistance | kPa | 16 | 15 | 18 | 24 | 17 | 22 | 30 |
| Water Flow | m3/h | 5.2 | 6.9 | 8.6 | 12 | 15.5 | 18.9 | 25.8 | |
| Gap Spec | DN | 32 | 40 | 50 | 50 | 50 | 65 | 65 | |
| Controller | Control Manner | Fully Automatic | |||||||
| Protection | High/low pressure protection, freezing-proof/over-heat protection(dual), safety valve, over load protection, open phase/reverse phase protection, under voltage/over voltage protection, water-break protection | ||||||||
| Dimension | Length | mm | 800 | 1250 | 1300 | 1550 | 1400 | 1380 | 1750 |
| Width | mm | 600 | 750 | 750 | 750 | 1420 | 1150 | 1420 | |
| Height | mm | 720 | 1330 | 1360 | 1430 | 1360 | 1430 | 1430 | |
| Weight | kg | 180 | 330 | 420 | 520 | 610 | 710 | 850 | |
| Operation Weight | kg | 200 | 350 | 450 | 550 | 650 | 750 | 900 | |
| Note: 1) Unit cooling capacity is decided according to the following conditions: Chilled water inlet: 12ºC, cooling water inlet: 18ºC, cooling water: 29ºC, condenser water inlet: 15-30ºC 2) Unit heating capacity is decided according to the following conditions: Coldd water inlet: 15ºC, hot water inlet: 40ºC, hot water outlet: 45ºC, evaporator water inlet: 12-22ºC 3) Water side dirt coefficient: 0.086m2 ºC/kW 4) Evaporator/condenser water side rated pressurer: 1.0Mpa 5) We can redesign for you if the above models can not reach your request. | |||||||||

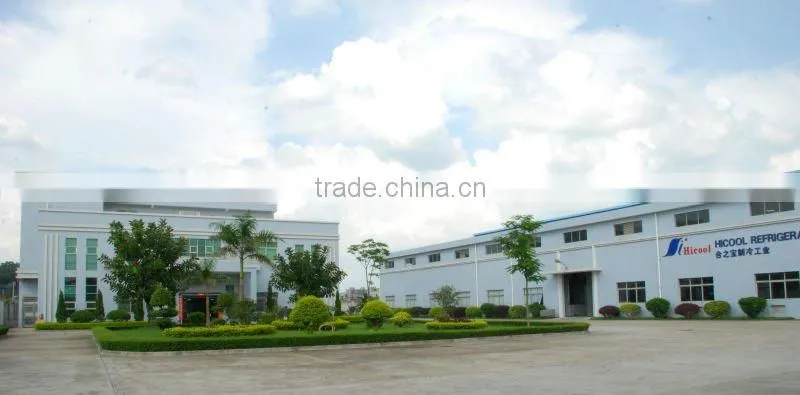

HUIZHOU HICOOL CLIMATE EQUIPMENT CO., LTDis an emerging company that specializes in the design and manufacture of commercial/central air conditioning system. HICOOL, committed itself to commercial/central air conditioner researching, developing & designing since 2003, is strategically located in Huizhou, a city by the beautiful Pearl River in Guangdong Province, China. HICOOL operates out of a new 25,000 square meters factory which was designed to employ the latest efficiencies in manufacturing process.
Customers benefit from HICOOL's state of art factory and product design utilizing cutting edge engineering technology. The company adheres to four key principles in the design and manufacture of its products namely: technology, efficiency, quality, and innovation. The company's specialized products meet its customer's needs by incorporating leading edge technology along with pursuing a quality policy of “reliability and safety, green and efficiency, innovation and technology, improvement and excellence”. The company's products demonstrate superior quality, elegant design, and extraordinary energy efficiency. Our factory possesses advanced production equipments and testing systems that are established to comply with the ISO9001 Quality Management System. All of the company's products are certified by CCC (China Compulsory Certification), CE & CB, while the leading products have MEPS (Oceania market), ETL (Northern American market), and some other certificates.
HICOOL provides its customer with custom design generated by computerized modeling and simulation. We partner with distinguished institutions and companies internationally to offer our customers free services in the design of air conditioning system, installation, training, and warranty.
High quality creates cool life. Our commitment to our customers, is to continue to add value through cutting edge technology, cost competitiveness, and sustainable growth.
