Product Description

WS-16EY2Uxx style high power multi-ports optical amplifier wiht gain spectrum band within  1540~1563nm, which is mainly designed for the application of CATV or 1~8 continuous branding channel(ITU wavelength)

and also offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities.

WS-16EY2Uxx can realize Single wave transmission,CWDM three waves in single fiber, flat gain.DWDM;   it is important fiber transmission equipment of building large and medium -sized CATV network.  mainly used in FTTH,FTTB,DBS,MMDS,FTTX pon.

 Performance Characteristic

1. Low power consumption of the whole equipment is extremely lowered by adopting the world’s top class

 pump laser and OFS optical fiber from USA,advanced LC switch electronic circuit with low power design.

2. Perfect APC,ACC and ATC control,excellent design in the ventilation and heat-dissipation and

  Temperature-controlled fan ensure the long life and high reliable work of pump laser.

3. Digital control chip, remote style native output power adjustable LCD screenat front panel displays the

   working index of all equipment and warning alarms.

4. RS232 and RJ45 offer serial communication and SNMP network management port. Excellent Protection

circuit design has missing optical detection, optical return loss detection which greatly protect

laser and optical security.  The laser will switch off  automatically if optical power is missing, which offers

security protection for the laser.

5. 19” 2U rack,optical output ports 16~64 optional ports, highest Output power is up to 40dBm(10W)

  Telecommunication level 1+1back up, CPU allocation power hot-plug in power supply optional.

6. Built-in low noise pre-amplifier,input power lower  to -5dBm,,extremely lower the  CNR,MER degradation  of the system.Interior can also be integrated 1310/1490 / 1550nm EPON, GPON required demultiplexer,

which greatly facilitates the band PON network applications

7.Low noise figure (type ≤4.5dB,Max ≤5.0dB)

Technical Data

 Limited Data

 Product Diagram

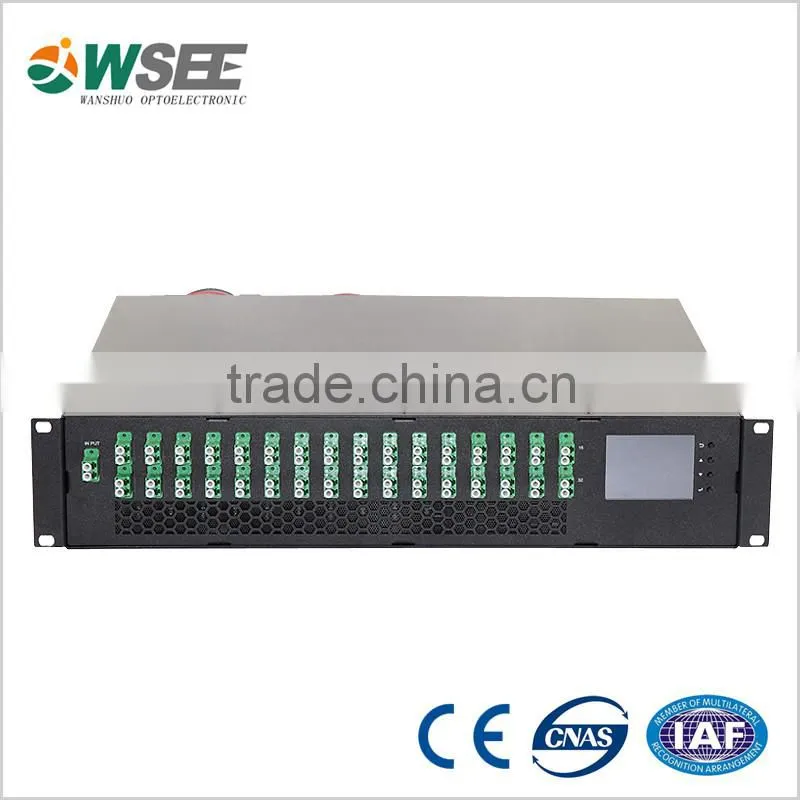

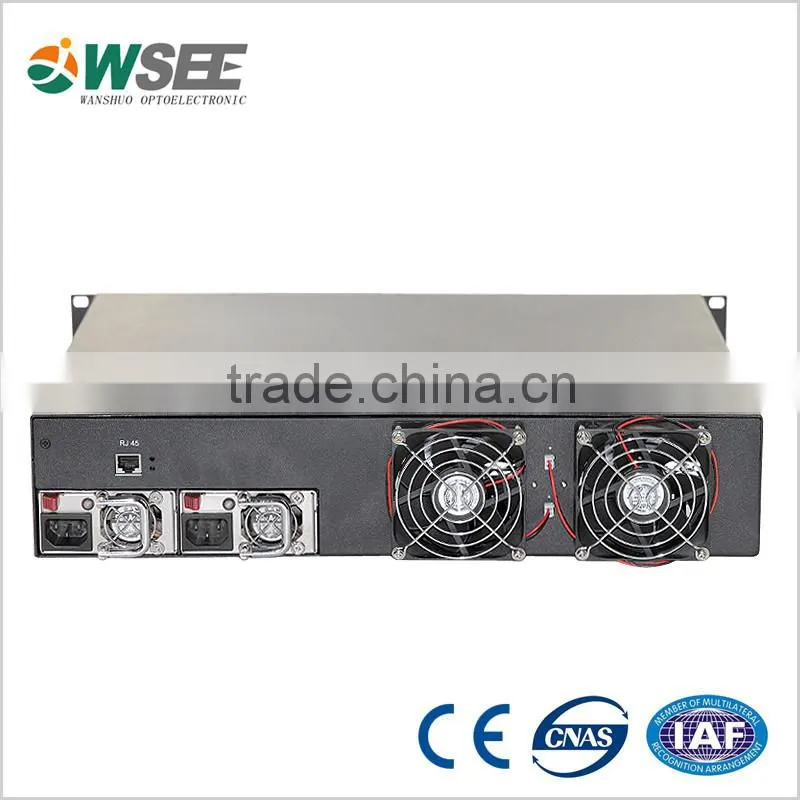

 Product  Photos

 Order guide

    Voltag:220V

    F type:Male or Female

    Optical connector:SC/APC or LC/APC

    Power adaptor:American standard or European standard

 Certificate

 Package

Service & security system

1. All the products have proceeded aging test before shippment and we guarantee to use our products safety.

2. OEM&ODM order are warly welcome, we will try to support you for all kinds of customized requirements.

3. We could help to design and build the network if needed and offer various remote technical support.

4. Support imprint your logo on the produts.

5. We will protect the customer's sales area, ideas of design and all private informations.

6. Warranty 1 years. We guarantee that all products are free to be repaired or replaced during the warranty time and shipping cost at our charge.

7. We own the best after-sale service, if any problems happen, our team will do our best to solve for the customers.

Payment way

1. Escrow on line

2. T/T(bank transfer)

3. Paypal

4. Western union

5. Money gram

For bulk order, 30% deposit, the banlance 70% before delivey

Shipping way

1. Lead time, for samples, we will ship within 3 working days. For bulk order, within 7~10 working days(according to order quantity)

2. Ship ways, for samples, can be shipped by DHL, Fedex, UPS, TNT, EMS, China post and so on. For bulk order, can be shipped by ocean or air.
