Mini AGC Fiber Optic Node, 1 RF Output Optic Node

OR17D  Mini AGC fiber optic node, 1 RF output optic node

Product Description

OR17x style FTTH optical receiver is home-based optical receiver catering to the ultimate Goal of

development of optical access and suitable for FTTH (fiber to the home) optical fiber network

users access to the end.

It adopts low optical power detector, GaAs and optical control AGC technique which meet to the demands

of FTTH CATV receiving. They are many kinds of different function which has a little difference to meet low

cost. OR17B can bring user’s economic application with optical control AGC technique.OR17D has low noise and optical AGC.

Performance Characteristic

1.Advanced plastic house with good heat Dissipation

2. SC/APC or FC/APC optical connector, female or metric RF interface

3. Full-GaAs MMIC application with low noise. Digital signal is received -18dBm at lowest and analogy signal -9dBm at lowest.

4. with AGC control range( AGC range according to User's demands)

5. Low power consumption, high-efficiency switch power can make sure the high reliability and stability of power supply. Power consumption less than 2W. It adopts optical detecting circuit.

6. Multi-stage anti-thunder devices (TVS transient suppression diode), strictly anti-thunder system to ensure the safe operation of the equipment

7.Anti-high-frequency surge protection devices GaAs amplifier tubes

8.It can realize the power supply of input port feeding.

 Technical Parameter

Note3: In the prescriptive link loss, 60PAL-D analog CHs, every 2MHz among 550MHz-750MHz/860MHz conveys digital modulated signals. Digital modulated signals level is 10dBm lower than analogy signal carrier when optical input power is -4dBm. Test result ranges from different optical receiver configuration and module. Details see equipment instruction.

Limited Index

Note1: Feed equipment with 5V interface can pass motherboard current

Note2: This index ranges from different module. Please see user manual

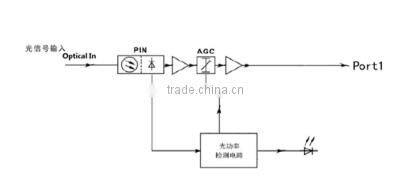

Product diagram

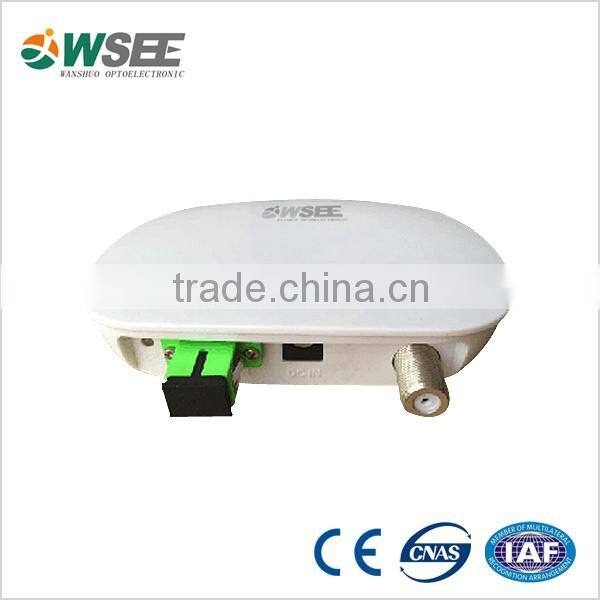

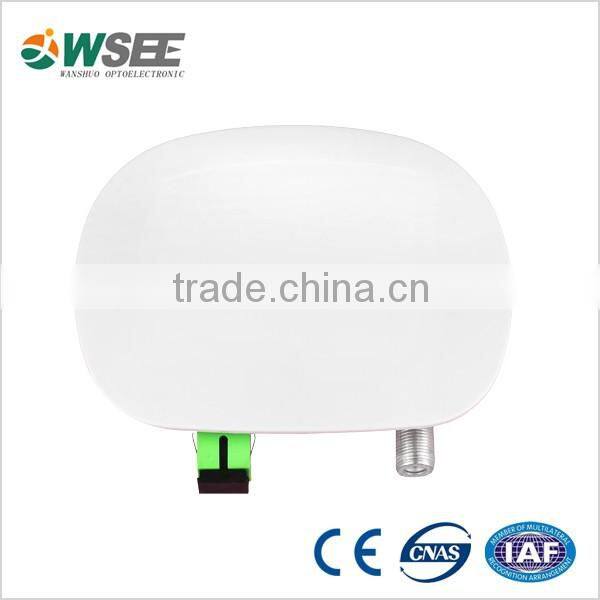

Product photo

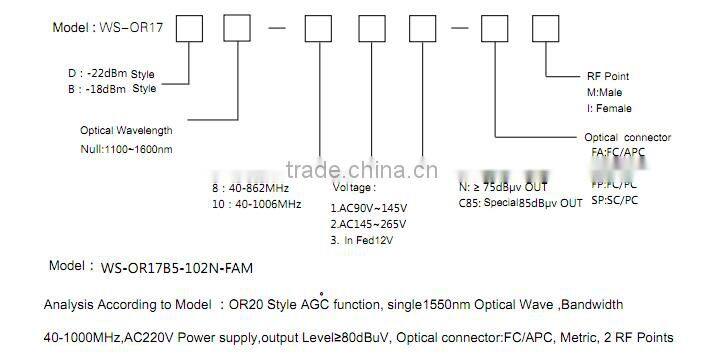

Order guide

Optical Connector: SC/APC

F type: Female

Output number :one

AGC Range:+1~-7dBm

Power adaptor:American standard or European standard
