AGC optic node with reverse path ,220v optical node

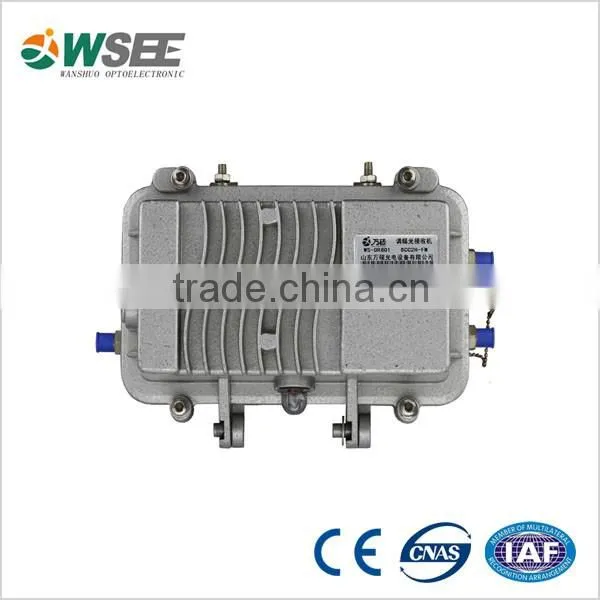

CATV return path Optical Receiver with AGC SOR609

Product application

OR609 optical receiver is an outdoor 4 outputs waterproofing receiver. It is mainly used in the building,

community or village with concentrated users and high level multi outputs distribution network.  Also suitable

to used in the place where it is not convenient to take the electricity and single equipment drives many users.

It can work together with ONU or EOC to realize the network convergence. when the optical input power +2~-8dBm,

the output level will be same, which is easy for debugging.

Performance Characteristic

1. Adopt waterproof aluminum shell and the waterproof level could reach to IP65 grade.

2. Double shield panel that can ensure the excellent EMC index.

3. Advanced GaAs low noise amplified circuit increases the receiving sensitivity.

4. AGC control range +2~-8dBm, output level unchanged.

5. Precision detection circuit can real-time display the output power through LED lamp or digital

 tube accurately.

6. The tap and splitter can be exchanged.

7. AC - 60v has independent power supply port.

8. Two-stage attenuation, two-stage balance, network adjustment more freedom.

9. Support return path and return path can be reserved.

10. With external test port that can test without opening the housing.

11. International general SNMP

Technical index

Note 3: Under the fixed link loss, 550 MHz has 59 PAL - D channel analog TV signals. Among 550 MHZ to 862 MHz,

every 2 MHZband transfer the digital modulation signals. It is tested when the digital modulation signal level is 10dBm

lower than analog hybrid module.  Pls refer to the user manual for details.

Limited index

Note 1: In 60 v power supply optical receiver, the mainboard passing through current.
Note 2: Different modules, the index will be different.  Pls refer to the user manual for details.

Schematic diagram

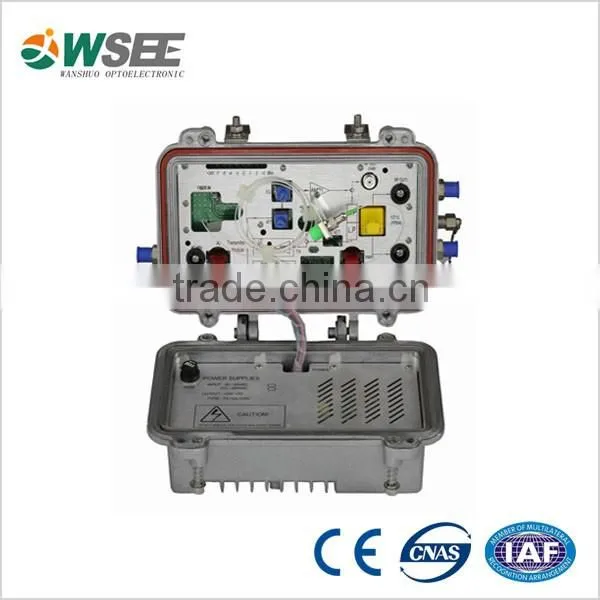

Product photo

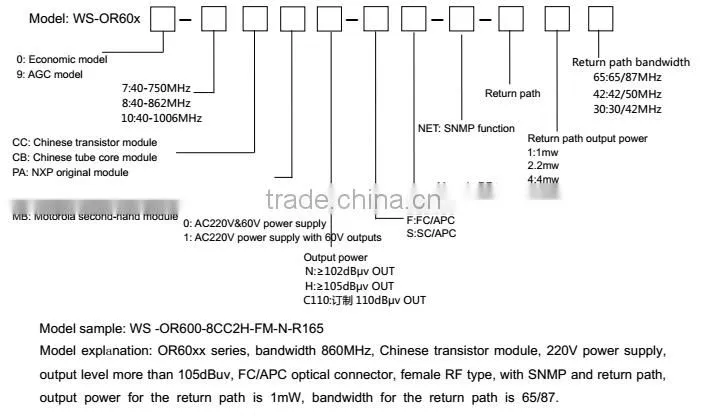

Order Guide

Optical connector: SC/APC or FC/APC

RF connector: Male or Female

Power Voltage:60V or 220V

Bandwidth of the return path and forward path

Power adaptor:American standard or European standard
