TOP design Dual power multiport 1310nm optical AOI laser transmitter
Product Discription
.
16LTxxxx Optical transmitter with internal modulation series has some characteristic of low power
consumpation,high output accuracy and high reliaiblity,which is mainly used in optical fiber transmission
of television image signal,digital signal.
With all property technology data meeting international demands and pay attention to product cost.
WS-16LTxx CATV optical transmitter first choice of building big and medium size optical transmission
network of 1550nm CATV equipment.
Performance Characteristic
1. Advanced aluminum wiredrawing with good dissipation
2. Advanced RF pre-distortion correction circuit ensure excellent C/N and low distortion performance.
3. Microprocessor automatically controls output power (APC)execute monitoring optical output power
and laser working status.
4. Importing DFB laser in AOI Type from USA
5. LED display in front panel monitoring locally.
6. Hot plug-in dual power supply (same power and also one 220V and the other 48V backup power supply)
It is convenient to change it at any time.
7. Built-in temperature control fan.When temperature is over 27,it operates low temperature mandatorily
to extending service life of laser and fan.
8. Optical AGC range -7~+2dBm, input level keep unchanged
9 .Electricity AGC range 75~95dBuv, input and output level keep unchanged
10. External Optical port and electricity port.ISO SNMP network management system can execute backup
and maintain by customer
Technical peremeter
Technical Data |
WS-16LT30xx |
Wave Length |
1310nm ±10nm |
Optical Output Power |
2-30mW |
Optical Port |
1&2 |
Optical Connector |
FC/APC&SC/APC |
RFAGC Range |
±10dBm |
Bandwidth |
47~862&1000MHz |
Flatness |
≤ 0.75dBm |
RF Input Level |
75~95dBuV |
RF Input Impedance |
75 Ω |
Input Return Loss |
≥16dB(47~550MHz)&≥14dB(550~862MHz) |
CNR |
≥50dB |
CSO |
≥65dB |
CTB |
≥65dB |
Working Voltage |
220V ( 160V-265V)& 48V(35V~72V) |
Working Temperature |
-5℃~+55℃ |
Relative humidity |
Max 95% no condense |
Net Size |
290x200x120mm |
Unit packing Size |
345x230x160mm |
Net Weight |
4kgs |
Carton Gross Weight |
10kgs(2 piece) |
In the prescriptive link loss, 59PAL-D analog CHs, 550MHz-750/860MHz conveys digital modulated signals. Digital modulated signals level (within 8MHz) is 10dB lower than analog signal carrier,input power of optical receiver
is -1dBm.
Limited Data
Technical Data |
WS-16LT30xx |
Max Optical Input Power |
1535-1565nm |
Max Optical Output Power |
30mW |
Max RF Input Level |
95dBuV |
Limited Working Temperature |
-25℃ ~+55℃ |
Limited Voltage |
AC80V~275V(220V Power Supply)&AC30V~90V(60VPower supply ) |
Product Diagram
Product Photo

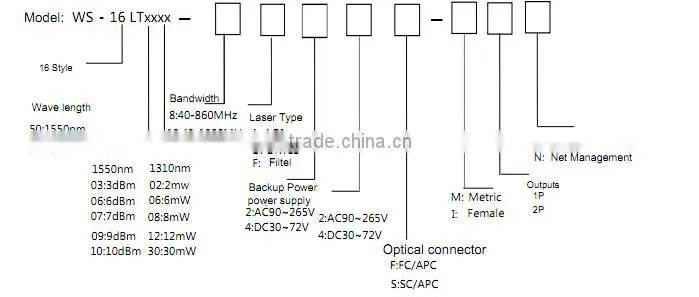

Order Guide:
Optical Connector: SC/APC
AOI Laser Power:10mW or 24mW
F type:Male or Female
Output number :one or two
AGC Range:+1~-9dBm
Power Standard:American standard 110Vor European standard220V
