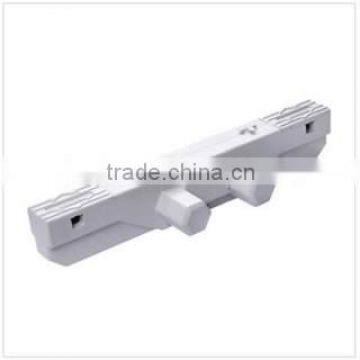

Dual-motor Drive Linear Actuator for Massage Armchair

Technical parameters

--Drive type: DC motor

--Load form:Push/pull

--Max thrust force: back 3500N, foot 3500N

--Max lock force: 6000N

--Stroke: back 48/53/69/74/87mm, foot 48/53/69/74/87mm

--Install center distance: 581mm

-- Input voltage: AC 100~240V

-- Motor voltage: DC 24V

--Speed: 3.5mm/s

--Stroke limit: internal limit switch or the built-in highprecision

Work environment

--Temperature: -25~+40°

--Relative humidity: 20%~80%

--Altitude: not higher than 1000M

--Protection rank:IP44

--Intermittent operation: time interval≥2 minutes

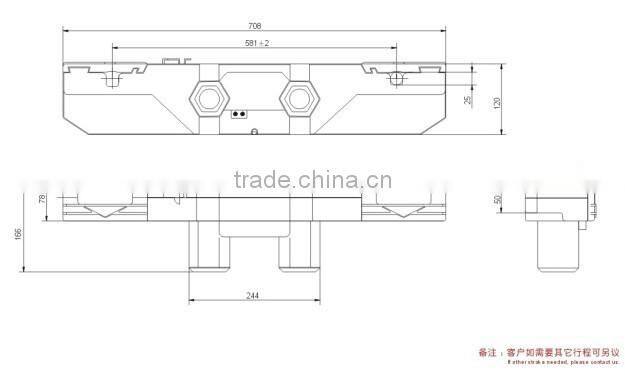

Install Dimension

Feature

Minitype, simple operation
Low voltage, low noise
Stable performance
Competitive price

Please send us your own parameters and request, we do customzied linear actuators.

Services

Make ODM and OEM orders.

Help to create drawing in free, do your own design and parameters, print your own brand.

Drawing software: AutoCAD, Pro-E, UG, Solid work, CATIA

Welcome sample order / test order / trial order.

Accept rush order, we have shift teams to guarantee 24 hours working.

Shipment

Ship by express (FedEx, DHL, UPS or TNT) for small order, use our account or your own account.

Ship by air or sea for large order. Our shipping agent will help with everything from Chinese port to your port.

Also you can arrange your own forwarder to handle with shipment.

Payment terms

Payment method: TT(bank transfer)

Payment terms: 30% deposit before production, the balance before shipment

Wide range of applications

Factory view
