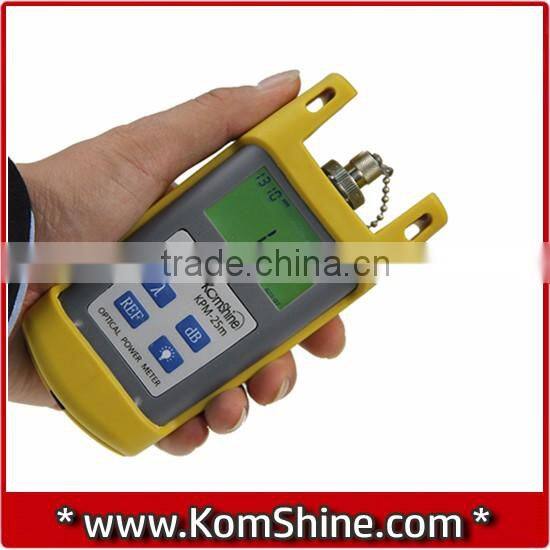

Komshine KPM-25 Handheld Fiber Optic Power Meter Equal To JDSU OLP-35
Automatic Wavelength Identification Significantly Increases Efficiency
KomShine KPM-25i AWI (Automatic Wavelength Identification) Handheld Optical Power Meter is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with KLS-25i handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the KPM-25i has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the KPM-25i features good appearance, good touch feeling and considerate humanity design.
Test Results Storage, Transfer and Post Processing with Test Results Management software
The T25 AWI File Management system allows technicians to organize test results into multiple files and transfer stored results via USB to a PC for analyzing, generating reports, and printing. .
The supplied powerful PC Analysis & Reporting Tool (Test Results Management software) allows users to apply industry standards based rules to test results and create comprehensive certification reports. Users can generate network Pass/Fail results demonstrating compliance to industry standards and illustrate headroom. The Software is a Windows® compatible software.
Features
Wave ID—Automatic Wavelength Identification and switching (when used with KLS-25i handheld light source)
Frequency ID/Tone detection---Automatic frequency identification
Data storage function, up to 1000 test records
USB communication port for saved testing records download
PC Analysis & Reporting Tool (Test Results Management software) allows users to reate certification reports
Specifications
| Type | KPM-25i |
| Wavelength | 800 ~1700 nm |
| Detector | InGaAs |
| Measurement Range | -70~+3 dBm |
| Uncertainty | ±5% (-10 dBm,20±3℃) |
| Calibrated Wavelength | 850,980,1300,1310,1490,1550 nm |
| Resolution | 0.01 dBm |
| Connector | FC or Universal 2.5mm adaptor |
| Power Supply | Alkaline Battery(3 AA 1.5V) |
| Battery Operating Time | 240 h |
| Operating Temperatrue | -10~+60 ℃ |
| Storage Temperatrue | -25~+70 ℃ |
| Relative Humidity | 0~95% (non-condensing) |
| Dimension | 82mm(W)×33 mm(D)×175 mm(H) |
| Weight | 310 g |
Supplying Optical Fiber Communication (OFC) products and Services to Leading Companies Worldwide.
KomShine is an ODM (original design manufacturer)/OEM (original equipment manufacturer) providing a variety of support services related to design, manufacturing, and after-sales service for Optical Fiber Communication (OFC) products. KomShine sells products to clients who use their own brand to introduce into the marketplace.
Our client base consists of branded, global/regional-based OEM (original equipment manufacturer) companies. Our clients request KomShine to provide an ever increasing array of services to support their product development plans.

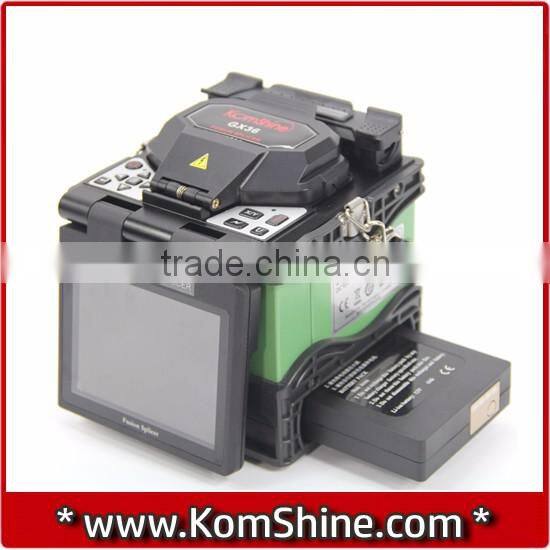

1. Fusion Splicer / Fiber Splicing Machine KomShine GX36:
2. OTDR KomShine QX50:
3.Fiber Optic Visual Fault Locator Komshine KFL-10P:
4. New FTTH Fiber Optic ToolKits Komshine KFH-13:
5. Fiber Optic One-Click Fiber Cleaner KOC-125/ 250mm:
6. Fiber Optic Video Inspection Probe KIP-500V:
