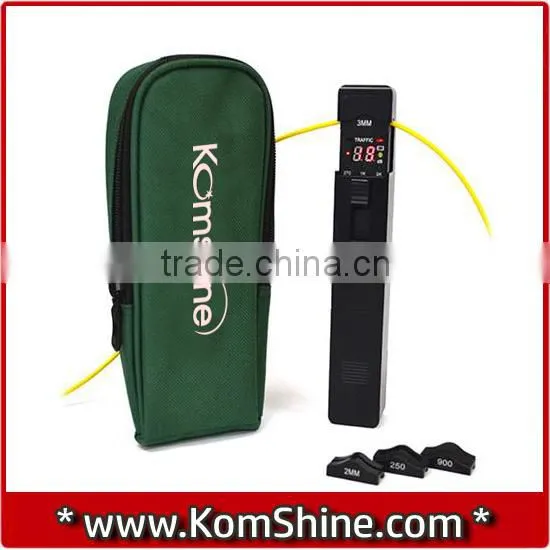

KomShine KFI-35 Optical Fiber Identifier Equal to Fujikura FID-25 Fiber Optic Identifier
General Information Optical Fiber Identifier - KFI-35 Series

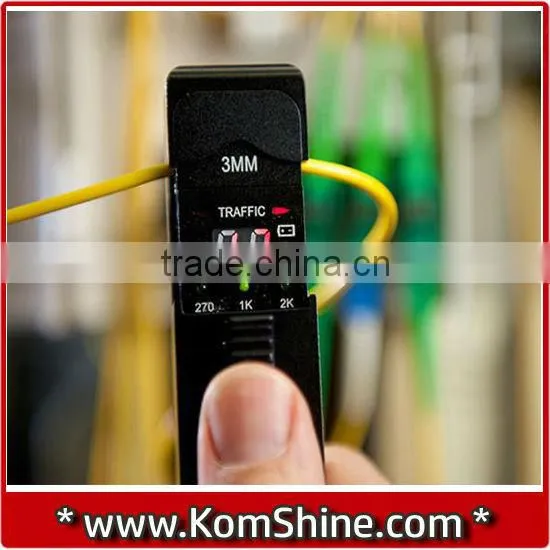

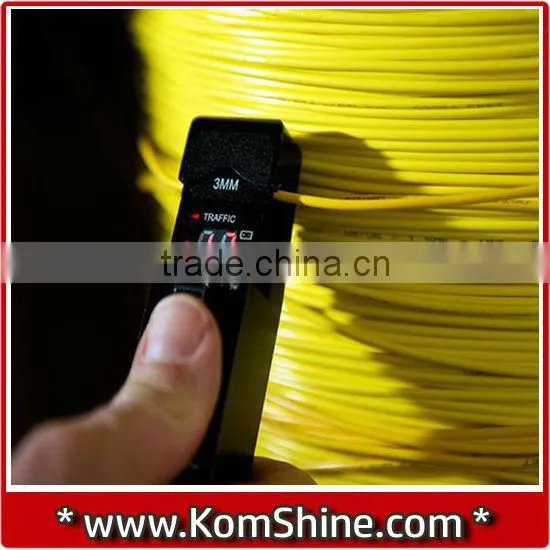

KFI-35 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present,the intermittently audible tone is activated.
The KFI-35 optical fiber identifier also recogize the modnulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads available: 0.25um, 0.9um, 2.0um and 3.0um. The KFI-35 optical fiber identifier is powered by a 9V alkaline battery .
Key Features
Easy-to-use with “ONE KEY” operation.
Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
Displays the relative core power
More accurate test with Sunshade
Easy-to-replace adaptors
Durable metal housing and quality construction
Lower power indication
Technical Specifications – Portable Optical Fiber Identifier
| Type | KFI-35 |
| Identified Wavelength Range | 800 nm to 1700 nm |
| Identified Signal Type | CW, 270 Hz ± 5%,1 kHz ± 5%, 2 kHz ± 5% |
| Detector Type | Ø1 mm InGaAs 2 pcs |
| Adapter Type | Ø0.25 (for Bare Fiber), Ø0.9, Ø2.0 (Applicable for Ø3.0 Cable) |
| Signal Direction | Left & Right LED |
| Optical Power Reading | -50 dBm to 0 dBm |
| Signal Frequency | 270 Hz, 1 kHz, 2 kHz |
| Power Supply | One 9 V Alkaline battery |
| Operating Temperature | -10 °C to 60 °C |
| Storage Temperature | -25 °C to 70 °C |
| Dimension | 195 mm x 30 mm x 27 mm |
| Weight | 235 g |
Packing List – Portable Optical Fiber Identifier
| Model | Includes |
| All KFI-35 models | KFI-35 Optical Fiber Identifier, 4 pcs Adapter Heads, Alkaline Battery, User Manual, Cotton Swabs and Soft Carrying Case. |
