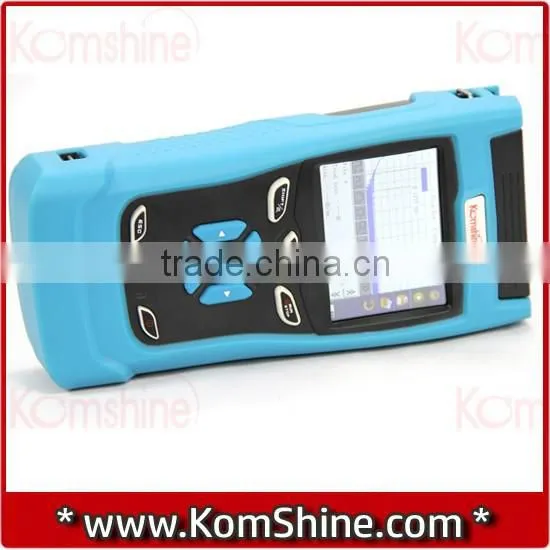

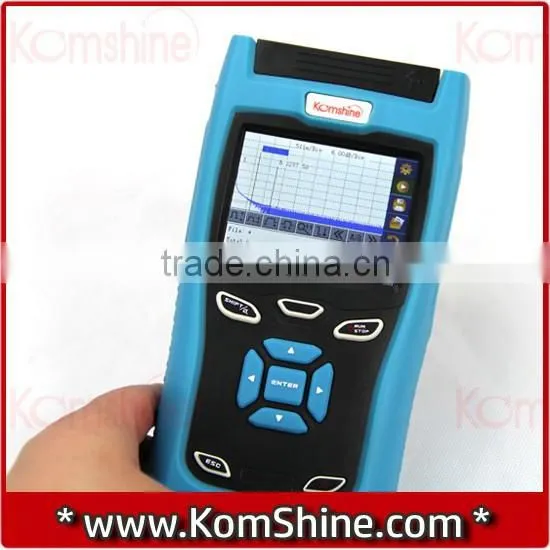

KomShine QX40 Mini OTDR SM 1310/1550nm 30/28dB
With a short <8m dead zone the QX40 is designed for FTTx application. It can test the length, fiber loss
connector loss and other physical characteristics of fiber. it can locate events on fiber cables precisely.
It is really the tool of choice for FTTx application installation and maintenance as well as for fiber R&D
and producing testing. QX40 rugged design, lightweight and easy operation, as well as the low-reflection
LCD and more than 8 hours battery life make it be perfect in filed testing. Meanwhile, Its two USB & SD interfaces help to store and transfer traces easily and conveniently. ..
Features
- Applicable fiber: Networks with PLC Splitters
- <3m extra-short event dead zon
- Wavelength: 1310/1550nm
- Up to 30/28dB High Dynamic Range
- Distance Range: 4,8,16,32,64,128,256km
- Pulse with: 10,30,80,160,320,640,1280,5120,1024ns
- 640×480, 3.5 inch TFT-LCD (touch screen)
- USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
- Memory capacity >800 traces
- Built-in lithium battery with high capacity for over 8 hours of operating life
- Display: Color LCD
- Equal to EXFO FTB-710
- One year Warranty
Specifications:
Model |
= |
QX40 |
Wavelength(nm) |
= |
1310/1550nm |
Dynamic range(dB) |
= |
30/28db |
Pulse width (ns) |
= |
5,20,40,80,160,320,640,1280,2560,5120,10240,20480 |
Display |
|
3.5 inch TFT LCD touch screen |
Event blind zone (m) |
= |
8 |
Attenuation blind zone (m) |
= |
10 |
Linearity (dB/dB) |
= |
±0.05 dB/ dB |
Loss threshold (dB) |
= |
0.05 |
Loss resolution ratio (dB) |
= |
0.01 |
Sampling resolution ratio (m) |
= |
0.125 to 8 |
Sampling point |
= |
32k |
Distance uncertainty (m) |
= |
±(1 m + 5×10-5× distance + sampling interval) |
Distance scope (km) |
= |
0.3 to180 |
Memory capacity of trace |
= |
SD Card (4G), > 10000 pieces |
Duration of measurement |
= |
Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
Optical interface |
= |
FC/UPC, SC/UPC |
Data interface |
= |
USB interface, SD card interface |
Visual Fault Locator |
= |
Available |
Power supply |
= |
Lithium battery; continuing working duration ≥ 8 hours |
Warranty period |
= |
12 months |
Standard Package:
QX40 OTDR
FC+SC UPC Connectors
SM Fiber Optic Patch Cord FC-SC 1M
Testing & Calibration Report
AC/DC adapter
Quality certification
Trace analyzing software(CD)
Internal Battery
User Manual
Carrying Case

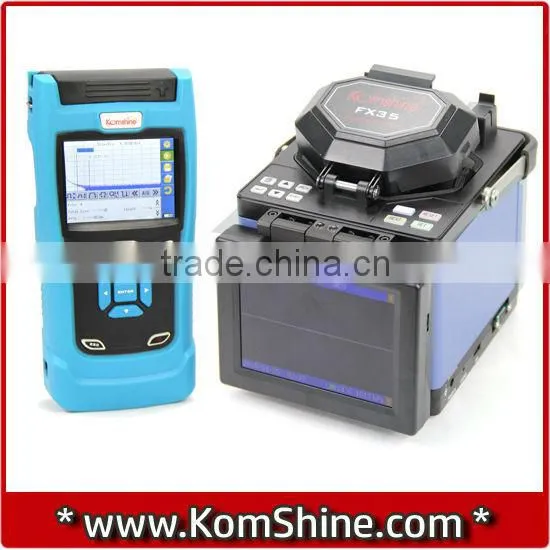

Fusion Splicer / Fiber Splicing Machine KomShine FX35/FX35H:
Optical Power Meter/Fiber Optic Visual Fault Locator/PON power Meter:
Fiber Optic ToolKits:
Fiber Optic Cleaning Items:
Fiber Optic Inspection Items:
Supplying Optical Fiber Communication (OFC) products and Services to Leading Companies Worldwide.
Supplying Optical Fiber Communication (OFC) products and Services to Leading Companies Worldwide.
KomShine is an ODM (original design manufacturer)/OEM (original equipment manufacturer) providing a variety of support services related to design, manufacturing, and after-sales service for Optical Fiber Communication (OFC) products. KomShine sells products to clients who use their own brand to introduce into the marketplace.
Our client base consists of branded, global/regional-based OEM (original equipment manufacturer) companies. Our clients request KomShine to provide an ever increasing array of services to support their product development plans.
