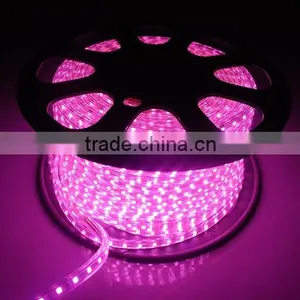

Flexible high voltage 220v smd 3528 led strip
Specifications:
220v smd 3528 led strip
1. Epistar chip,CE/RoHS
2.110V/220V AC power supply
3. No light decay no matter how long length
Advantages:
1) The use of DC 12V led strip has to be with a miniwatt adapter, and its best length is 5 meters. For the projects, this is very inconvenient.
2) Now, our high voltage strip could deal with all the problems. 100 meters in one line without connection, and no signal amplifier needed.
3) Save cost on power supply and installation,easy to transport and install.
Product catalog:
| Model No | LED Type | Color | LED Qty | Voltage | Power | Meters/Roll | Cutting Unit |
| BY-HV-3528-60D-220V | SMD3528 | R,Y,B,G,W,WW | 60LED/M | 220V/110V | 4.8W/M | 100M | 100cm |
| BY-HV-3528-120D-220V | SMD3528 | R,Y,B,G,W,WW | 120LED/M | 220V/110V | 9.6W/M | 100M | 100cm |
| BY-HV-5050-30D-220V | SMD5050 | R,Y,B,G,W,WW, RGB | 30LED/M | 220V/110V | 7.2W/M | 50M | 50cm |
| BY-HV-5050-60D-220V | SMD5050 | R,Y,B,G,W,WW, RGB | 60LED/M | 220V/110V | 14.4W/M | 50M | 100cm |
Features:
1. Dirctly contact to AC110V or AC220V,no need power supply.
2. Energy saving,environment protection,long life,low light decay, Flexible IP65 Light Body.
3. High quality and bright SMD LEDs as lighting source, can be bent as you need,easy to instal.
4. The price is competitive, no extra power supply or transformer necessary
5. Less 1% attenuation after 3,000 hours
6. Long lifespan: 50,000 to 80,000 hours
product structures:
Instal:
Take out the package,make sure it comes with necessary accessories,which should include:fixing clips,middle plugs,end caps,head wires.fix the strips with clips onto where you need,put the wire into sockets to light the strips.
1) Cut:Please cut the strips only along the cutting mark on the PCB,don’t cut at random.
2) Block up the end with end caps,seal with enough glue to make sure it’s still waterproof.
3) Connect:Plug the head wire into a strip to conduct the electricity,or plug a middle plug into the ends of two separate strips to connect them into a long strip
4) after well connected,seal all the plugs with enough glue.
Steps:
Applications:
1) Architectural decorative lighting
2) Window display lighting
3) Amusement park or theater
4) Emergency lighting
5) Stairway accent lighting
6) Ad signs, light boxes
7) Back lighting for signage letters
8) Swimming pools and fountains
9) Holiday decorative lighting
10)Car decorative lighting

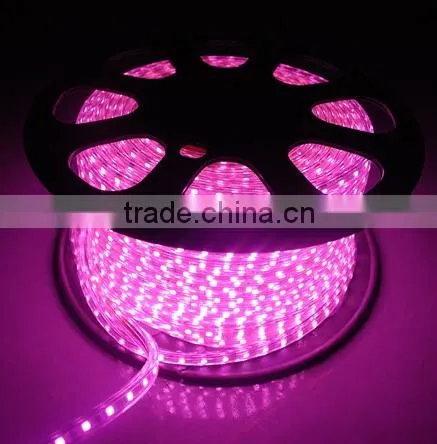

Pictures of product:
Packing for 100m/roll led strip light 3528 220v led strip:
Delivery for 100m/roll led strip light 3528 220v led strip:
1. We accept small orders of led christmas light. Such as 5 meters christmas led light.
2. For led christmas light/China christmas light, Customer-made lighting color,customer design is available
3. Fast delivery-standard led modules are in stock
4. Serve for you at first time.
1)Bayond Light Co., Ltd manufacture LED modul, LED pixel, indoor and outdoor lighting for led module , LED Advertising Signage Illumination, as we believe it’s better to do a few things well.
2) With six production lines boasting SMT machines from Japan, we make up to 150,000 units monthly—all of which are CE- and RoHS- marked. Our lead times are as fast as five days.
Orders are typically filled in 10-15 days.
Factory overview:
Pictures for all products are preparing:
1) Payment: BY T/T or Western Union or Paypal or Moneygram
2) lead time:10-15 working days, subject to the order quantity .
3) Delivery ways: DHL ,Fedex ,TNT UPS,EMS door to door service,by sea,by air,etc.
4) 3 years warrenty since the date of purchase our LED products.
