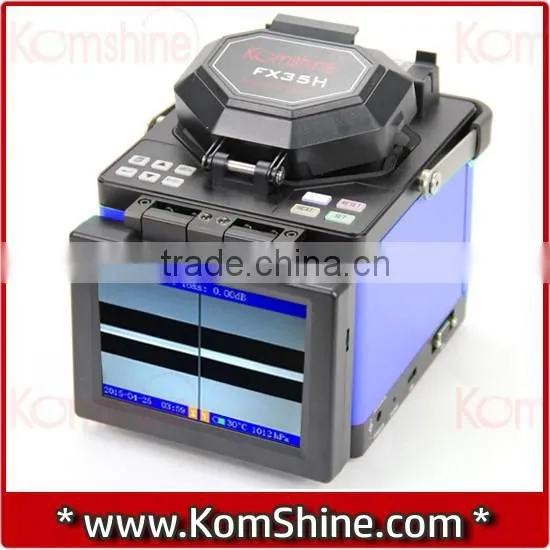

FX35H High-End FTTH Optical Fiber Fusion Splicer

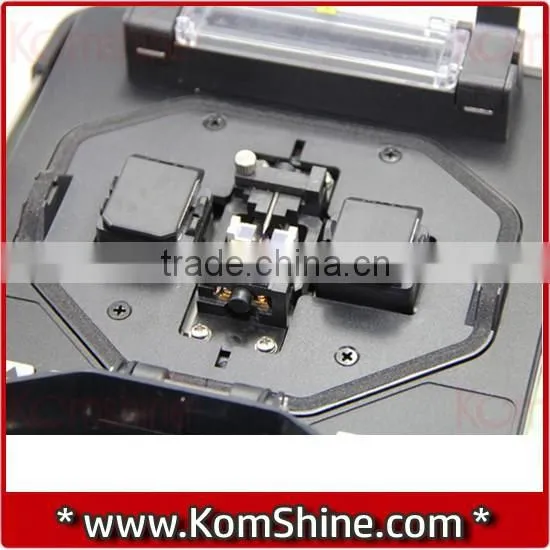

Built-in Universal Fiber Holders Can splice 250um, 900um, Jump Cables and FTTH Flat Cables
The Fiber Splicing Machine KomShine FX35H FTTx Series have a new fully-digital design, core to core alignment, PAS Technology (Profile Alignment System), Standard accessories. Multiple language menu, 5.7 inch digital high definition LCD display, 8 Sec. splice time, 25 Sec. Tube-heat time..
Features
- The advanced core to core fiber profile alignment system(PAS)
- Friendly smart GUI
- X/Y axes were displayed meanwhile, Magnification up to 304 times
- 8 Sec. splice time , 25 Sec. tube-heat time
- Hig High-resolution true color 5.7 inch LCD display
- Four display modes, fiber core visible
- Store 4000 groups of splice results
- Four display modes, fiber core visible
- USB interface - for updates + result transfers
- Built-in high capacity battery, support 300 times splicing and heating, to meet one days’ work
- Long Electrode Lifetime, up to 4000 times
- Three Splicing modes: auto, half-auto, manual
- Close shield splice automatically, Close heater lid heat automatically
- One year Warranty
Specifications:
Applicable fibers |
SM MM DS NZDS |
Fiber diameter |
Cladding diameter:80-150μm; Coating diameter:100-1000μm |
Fiber count |
Single |
Fiber cleaved length |
12-16mm (Coating diameter:250μm) |
Actual average splice loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
Typical splicing time |
Typical 9 sec (standard SM fiber) |
Return loss |
>60dB |
Splicing mode |
Auto Calibrate Normal Special |
Fiber aligning method |
Meticulous,Core,Clad,Manual |
Splicing program |
53 (templet), 40(user) |
Tube heating program |
9 (templet),24(user) |
Tube typical heating time |
Typical 25 sec |
Protection sleeve length |
60mm, 40mm |
Storage of splice result |
4000 results, 20 parameter per result |
Fiber image magnification |
300X (X or Y view),150X (X and Y view) |
Battery capacity |
Typical 160 cycles (splice/tube heat with inner Li-battery) |
Monitor |
5.7 inch color LCD monitor |
Tension test |
2N |
Electrode life |
4000 |
Terminal |
USB |
Power supply |
AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V |
Operating condition |
0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s |
Dimension |
150mm(L)×150mm(W)×150mm(H) |
Weight |
2.55Kg excluding battery,3.05Kg including battery |

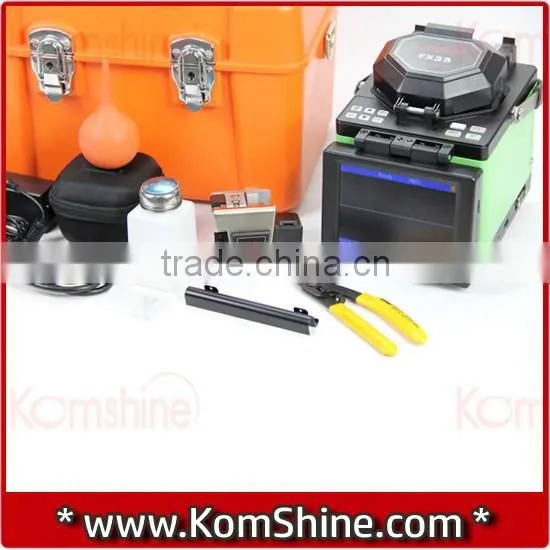

Standard Package:
FX35H Fusion Splicer with Fiber Holders for 250um,900um,3.0mm and Flat Cable

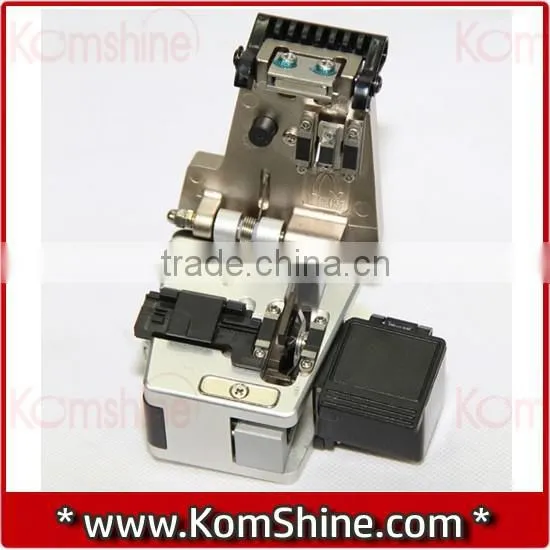

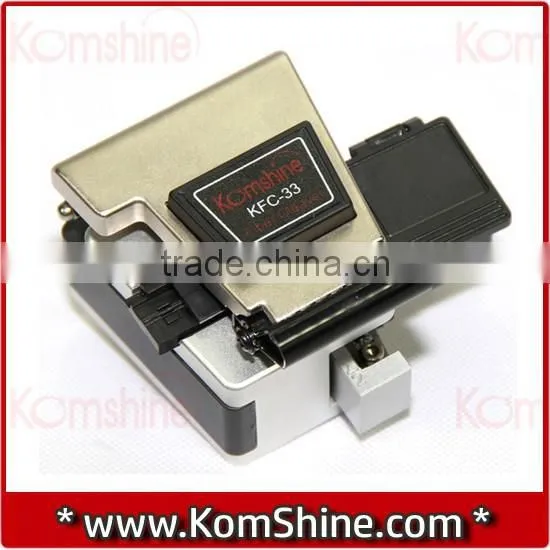

KFC-33 High Precision Fiber Cleaver
Tri-hole Fiber Coat Stripper
Kimwipes Lint-Wipers 280 wipers/box
Instruction CD
Fusion Splice Protection Sleeves 500ea
Internal Battery
Charger, AC Power Cord
Spare Electrodes (one pair)
Cooling Tray, Alcohol Pump Bottle, Blower Brush
User Manual
Carrying Case

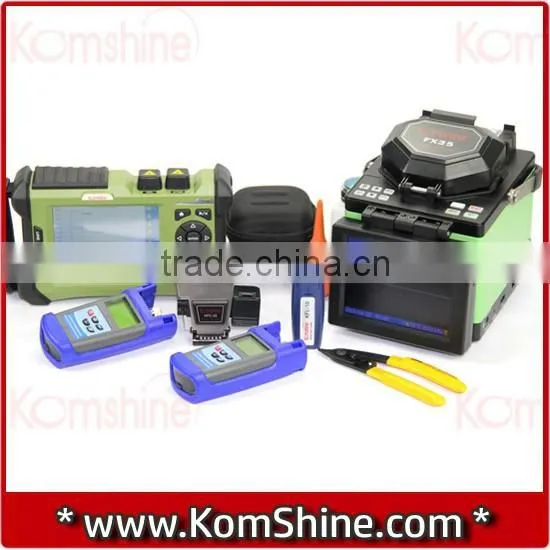

Related Products

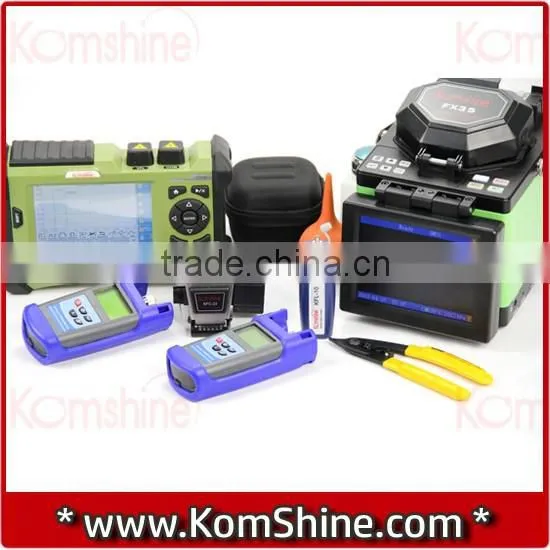

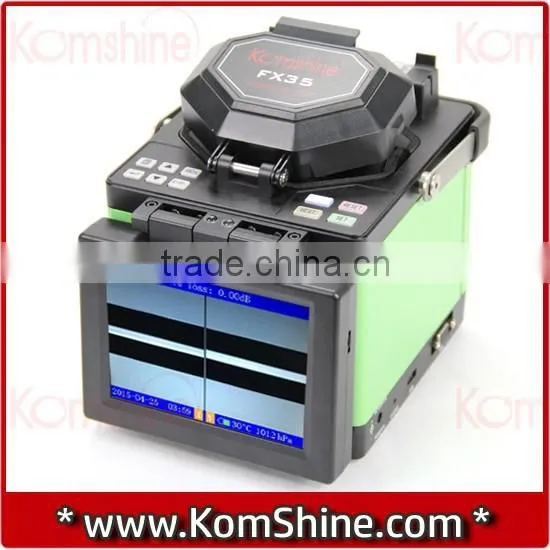

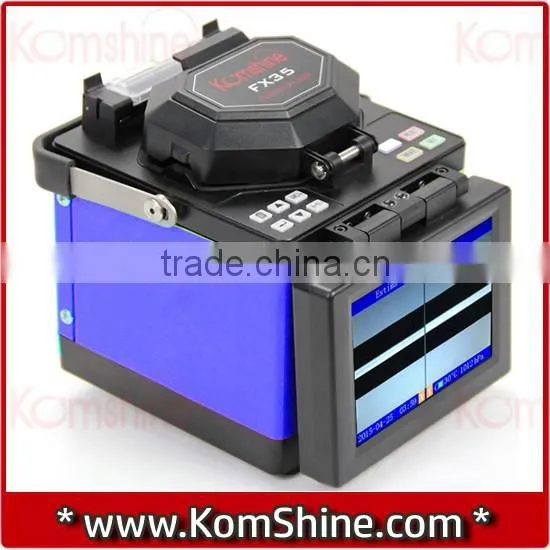

1. Fusion Splicer / Fiber Splicing Machine KomShine FX35/FX35H:

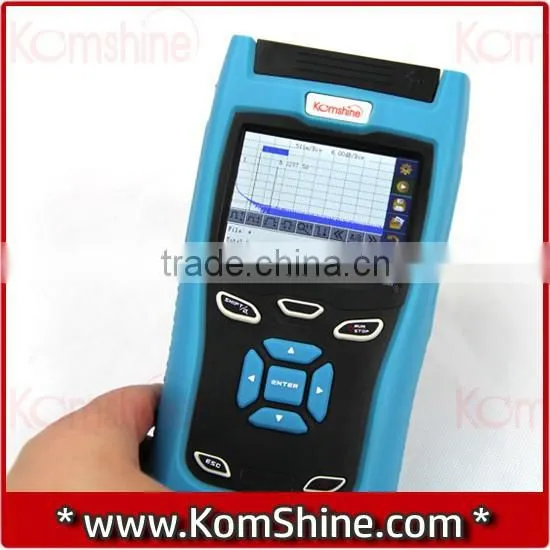

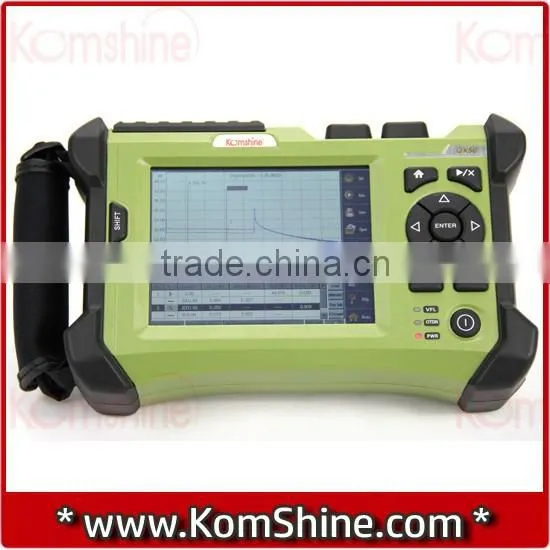

2. OTDR KomShine QX50/QX40/QX30:

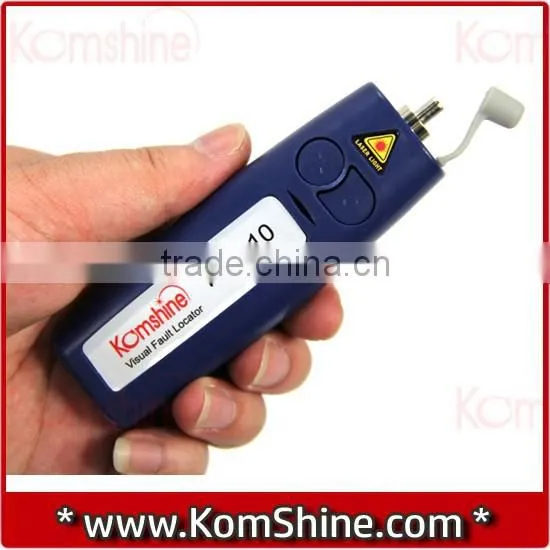

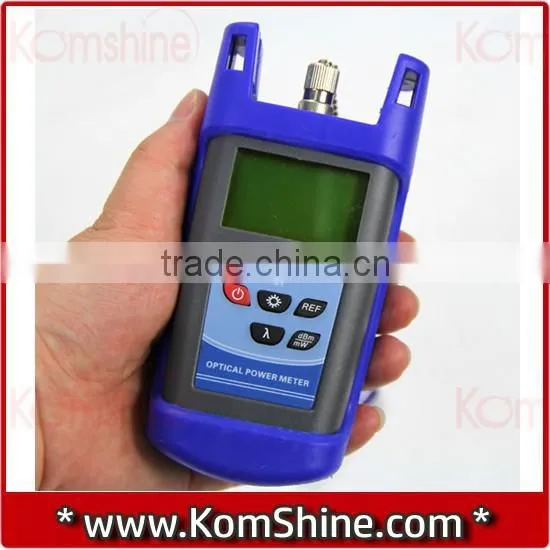

3.Optical Power Meter/Fiber Optic Visual Fault Locator/PON power Meter:

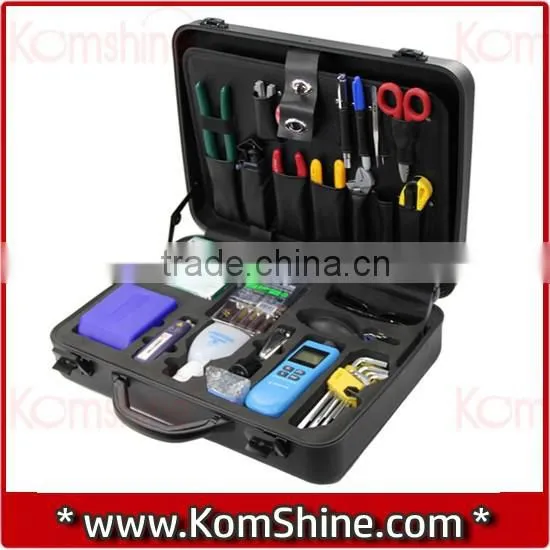

4. Fiber Optic ToolKits:

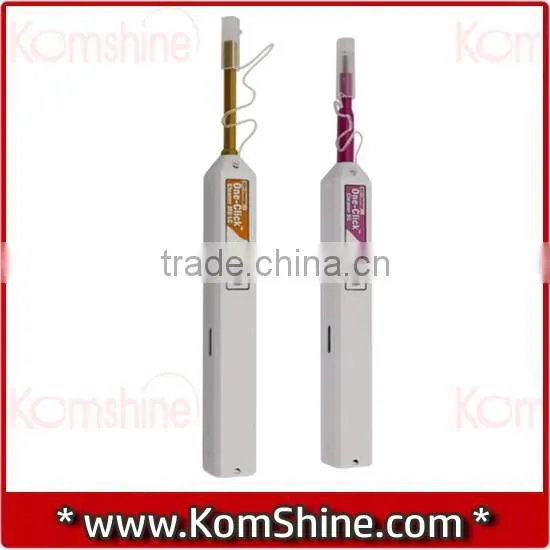

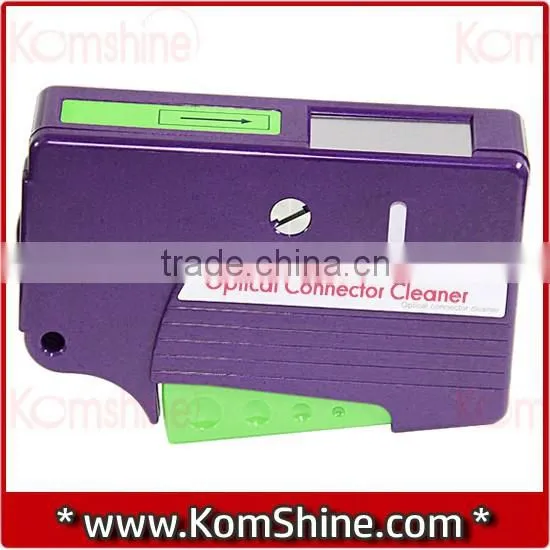

5. Fiber Optic Cleaning Items:

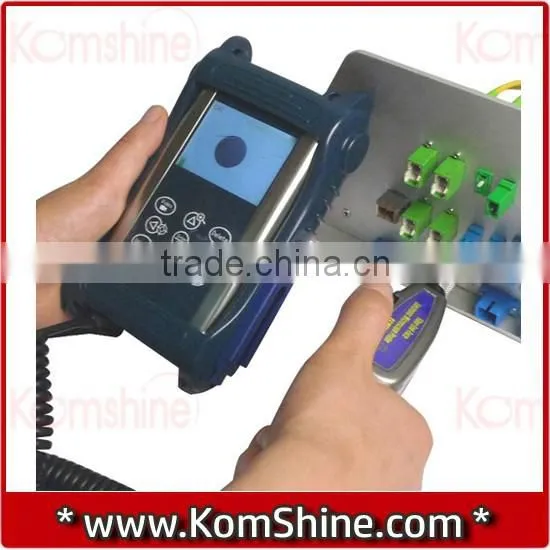

6. Fiber Optic Inspection Items:
